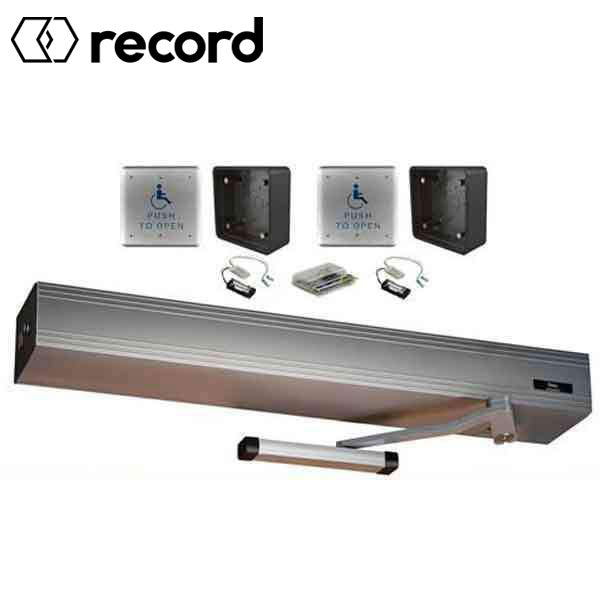

This is a complete Wireless Automatic Door Kit

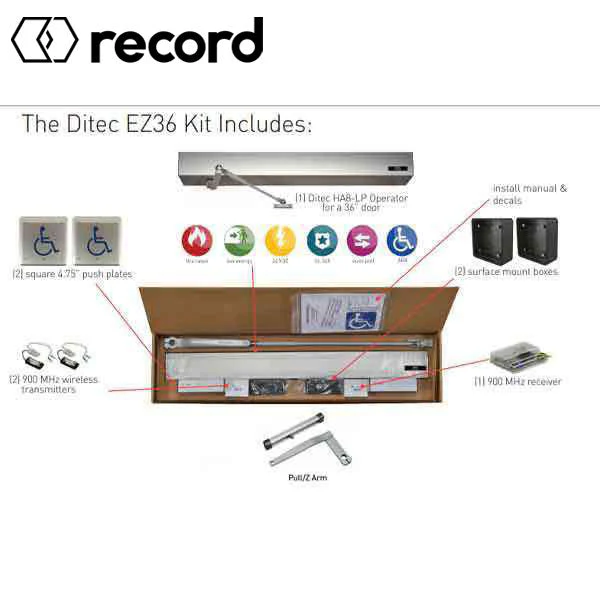

The kit includes:

1 - Ditec HA8-LP Operator for a 36” Door
2 - Square Push Plates - 4.5”
2 - Surface Mount Boxes
2 - 900 MHz Wireless Transmitters
1 - 900 MHz Receiver
1 - Pull Arm - Left Hand

This is everything you need to install your wireless door operator

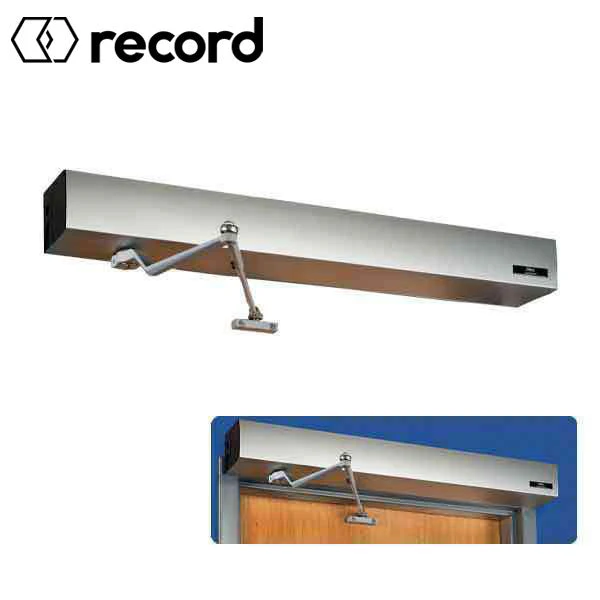

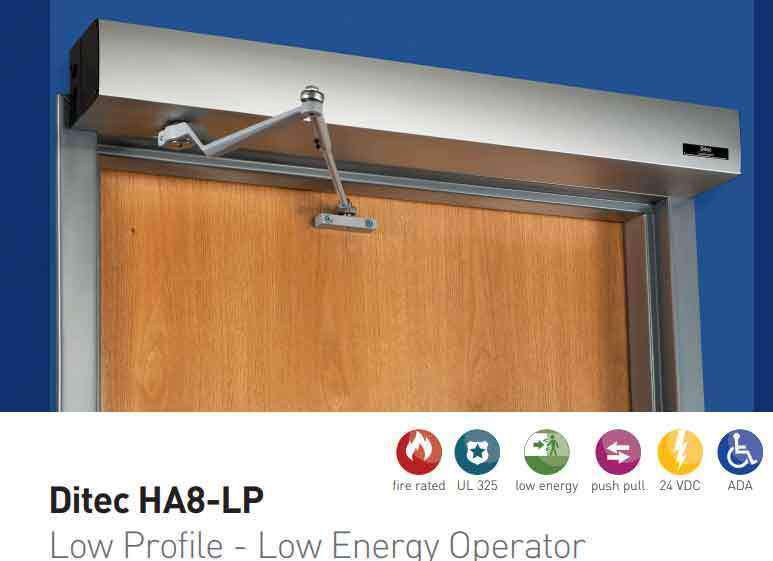

The Ditec HA8-LP low-energy operator has the same power and durability as the standard profile, but with a smaller header for applications where clearance is limited. The low-profile is available as surface applied, and can be found in hospitals, retail stores, schools & universities, airports, convention centers, casinos, industrial buildings, and offices.

• Handed Operator
• Permanent lubrication means maintenance-free
• Easy manual door operation
• Ul325 / UL10C  certified
• Single Doors



Specifications:

Application	Single Doors
Header Profile Dimensions	4 1/8" x 5 1/8"
Motor	1/8 HP
Manual Opening/Closing Force	Adjustable 5 to 30 lbs.
Push Reveal	Up to 14"
Pull Reveal	Up to 5"
Total Weight with 39" Header	44 lbs
Non-Handed	Pull Arm Left
Drive Train Gear Box	Aluminum-Alloy Gearbox
Control Box	Single HA-8 w/Data, 24 VDC, 3 AMP
Operating Voltage (Standard)	115VAC
Gear Grease	High Wear Protection
Bearings	HD Sealed
Motor	1/8th HP
Manual Opening/Closing Force	Adjustable 5 to 30 lbs
Arm Connection	1” Solid Spline Spindle
Adjustable Stop	Yes
Operator Switch	On-Off-Hold Open
Adjustable Spring Tension	Yes
Mechanical Clutch	Standard
Push or Pull Application	Pull
Easy Manual Operation	Yes
Surface Mounting	Yes
Side Loading	Yes
Push Reveal	Up to 14”
Pull Reveal	Up to 5”
Electric Strike Power	Yes 24 VDC
Fire Door Compatibility	UL10C Approved
Circuit Protection	3 amp Fuse
Total Weight w/ 39" Header	44 lbs
Meets ANSI 156.19 Low Energy	Yes



Watch Complete Installation Video Here

Downloads:

• Spec Sheet
• Installation Manual
• Features
