ENT-WL-104-75

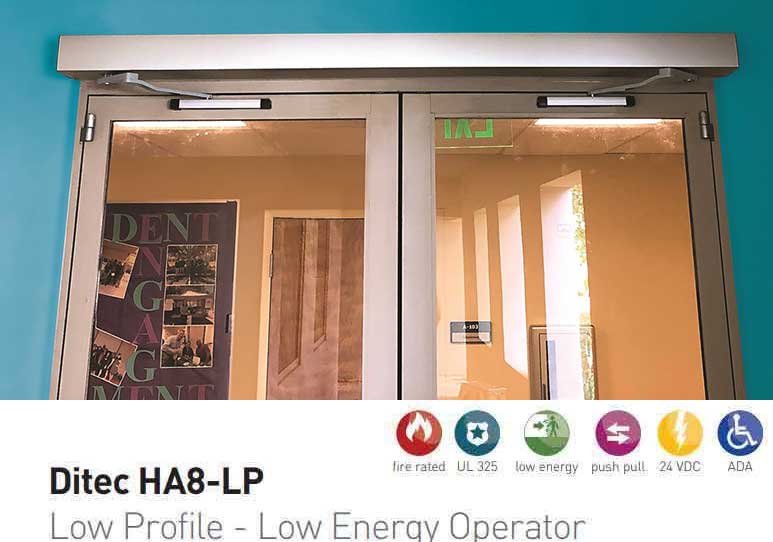

The Ditec HA8-LP low-energy operator has the same power and durability of the standard profile, but with a smaller header for applications where clearance is limited. The low-profile is available as surface applied, and can be found in hospitals, retail stores, schools & universities, airports, convention centers, casinos, industrial buildings and offices.

Antique Bronze Finish
Available in 75" for Double Doors
Left Pull Arm - Right Pull Arm

• Non-Handed operator
• Opens easily during manual operation
• Quiet Operation
• Permanent lubrication means maintenance free
• Easy installation (average install time is 1-1/2 hours)
• UL325/UL10C




Application	Double Doors
Motor	1/8 HP
Manual Opening/Closing Force	Adjustable 5 to 30 lbs.
Push Reveal	Up to 14"
Pull Reveal	Up to 5"
Handing	Left Pull Arm - Right Pull Arm
Drive Train Gear Box	Aluminum-Alloy Gearbox
Control Box	Single HA-8 w/Data, 24 VDC, 3 AMP
Operating Voltage (Standard)	115VAC
Gear Grease	High Wear Protection
Bearings	HD Sealed
Motor	1/8th HP
Manual Opening/Closing Force	Adjustable 5 to 30 lbs
Arm Connection	1” Solid Spline Spindle
Adjustable Stop	Yes
Operator Switch	On-Off-Hold Open
Adjustable Spring Tension	Yes
Mechanical Clutch	Standard
Push or Pull Application	Pull
Easy Manual Operation	Yes
Surface Mounting	Yes
Side Loading	Yes
Electric Strike Power	Yes  24 VDC
Fire Door Compatibility	UL10C Approved
Circuit Protection	3 amp Fuse
Meets ANSI 156.19 Low Energy	Yes



Watch Complete Installation Video Here

Downloads:

• Spec Sheet
• Installation Manual
