Record - HA8-SP - Standard Profile Swing Door Operator - Left PULL- Right PULL - Antique Bronze - 75" For Double Doors

Product image 1
1 / 5

Record - HA8-SP - Standard Profile Swing Door Operator - Left PULL- Right PULL - Antique Bronze - 75" For Double Doors

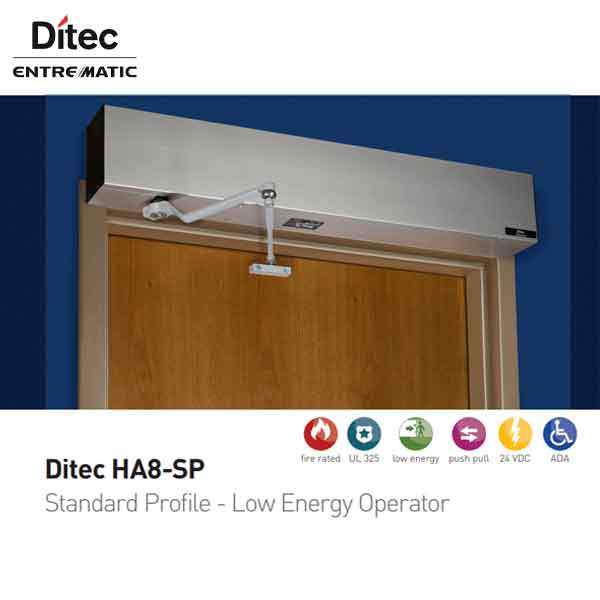

The Ditec HA8-SP is the standard profile low-energy operator that works in nearly every application, including high-traffic and exterior. The standard profile can be installed in hospitals, retail stores, schools & universities, airports, convention centers, casinos, industrial buildings, and offices.

Antique Bronze Finish
Available in 75" for Double Doors
Left Pull Arm - Right Pull Arm

    • Handed Operator
    • Permanent lubrication means maintenance-free
    • Easy manual door operation
    • Ul325 / UL10C  certified
    • Single Doors

    Specifications:

    Application Double Doors
    Motor 1/8 HP
    Gear Grease High Wear Protection
    Manual Opening/Closing Force Adjustable 5 to 30 lbs.
    Single and Dual Digital Control
    Box    		 Single HA-8 w/Data, 24 VDC, 3 AMP
    Operating Voltage (Standard) 115VAC
    Magnetic Limit Switches Yes
    Arm Connection 1” Solid Spline Spindle
    Adjustable Stop Yes
    Operator Switch On-Off-Hold Open
    Adjustable Spring Tension Yes
    Mechanical Clutch Standard
    Push or Pull Application PULL
    Easy Manual Operation Yes
    Surface Mounting Yes
    Concealed Mounting Center Pivot, Hinge, or Offset Pivots
    Push Reveal 0" to 14"
    Pull Reveal 0" to 4"
    Electric Strike Output Power 24 VDC
    Fire Door Compatibility UL10C Approved
    Mechanical Clutch Standard
    Circuit Protection 3 amp Fuse
    Easy Manual Operation Yes
    Meets ANSI 156.19 Yes
    Fire Door Compatibility UL10C Approved



    Watch Complete Installation Video Here

    Specifications:

    $1,374.97

    Original: $3,928.50

    -65%
    Record - HA8-SP - Standard Profile Swing Door Operator - Left PULL- Right PULL - Antique Bronze - 75" For Double Doors—

    $3,928.50

    $1,374.97

    Product Information

    Shipping & Returns

    Description



    The Ditec HA8-SP is the standard profile low-energy operator that works in nearly every application, including high-traffic and exterior. The standard profile can be installed in hospitals, retail stores, schools & universities, airports, convention centers, casinos, industrial buildings, and offices.

    Antique Bronze Finish
    Available in 75" for Double Doors
    Left Pull Arm - Right Pull Arm

      • Handed Operator
      • Permanent lubrication means maintenance-free
      • Easy manual door operation
      • Ul325 / UL10C  certified
      • Single Doors

      Specifications:

      Application Double Doors
      Motor 1/8 HP
      Gear Grease High Wear Protection
      Manual Opening/Closing Force Adjustable 5 to 30 lbs.
      Single and Dual Digital Control
      Box      		 Single HA-8 w/Data, 24 VDC, 3 AMP
      Operating Voltage (Standard) 115VAC
      Magnetic Limit Switches Yes
      Arm Connection 1” Solid Spline Spindle
      Adjustable Stop Yes
      Operator Switch On-Off-Hold Open
      Adjustable Spring Tension Yes
      Mechanical Clutch Standard
      Push or Pull Application PULL
      Easy Manual Operation Yes
      Surface Mounting Yes
      Concealed Mounting Center Pivot, Hinge, or Offset Pivots
      Push Reveal 0" to 14"
      Pull Reveal 0" to 4"
      Electric Strike Output Power 24 VDC
      Fire Door Compatibility UL10C Approved
      Mechanical Clutch Standard
      Circuit Protection 3 amp Fuse
      Easy Manual Operation Yes
      Meets ANSI 156.19 Yes
      Fire Door Compatibility UL10C Approved



      Watch Complete Installation Video Here
