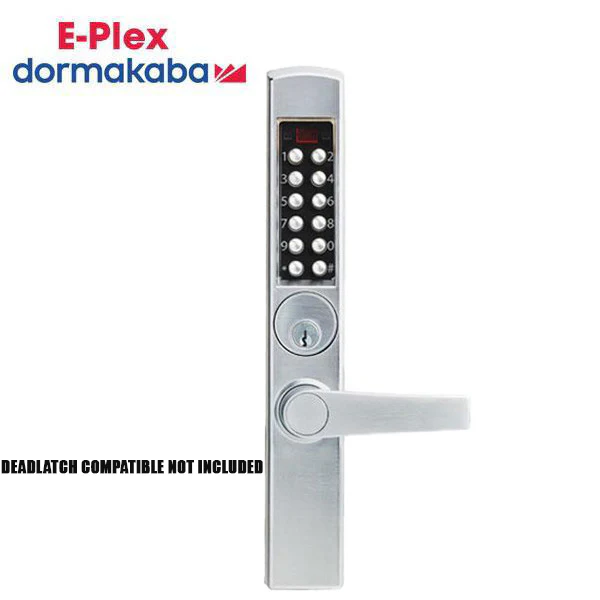

E-Plex - E3066 - Electronic Pushbutton Mortise Narrow-Stile Lever Lock - Deadbolt - Schlage 'C' - Satin Chrome - Grade 1

Product image 1
1 / 3

E-Plex - E3066 - Electronic Pushbutton Mortise Narrow-Stile Lever Lock - Deadbolt - Schlage 'C' - Satin Chrome - Grade 1


The E-Plex 3000 Series provides exterior access by combination, while allowing free egress. This electronic pushbutton narrow stile lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, has up to 300 Access Codes and 9,000 Audit Events. Mortise Deadbolt for Adams Rite. (Not Included)

Features:

  • No wire installation—eliminates wiring to or through the door—no risk of pinched wires
  • 300 access codes per door
  • The most recent 9,000 events are recorded in memory, including use of the mechanical key override
  • Locks are programmed via keypad or with optional Microsoft Excel-based software—simplifies management of doors and users as facility’s number of users and access points grow
  • PIN access
  • Five different levels (Master, Manager, Access User, Service, Maintenance) allow who has access to specific lock functions
  • Code length: adjustable to accept 4 to 8 digits
  • Anti-tamper lockout: adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
  • Re-lock time: adjustable from 2 to 20 seconds


    Specifications:


    Construction:

    		 Extra heavy-duty lockset, solid cast housing, and solid cast lever wear tested for extensive use in indoor and outdoor applications

    Locking Device:

    		 Mortise Deadbolt for Adams Rite 1850, 1950, MS 1850S, and MS 1950S (Not Included)

    Numeric Keypad:

    		 Vandal-resistant, solid metal pushbuttons

    Handing:

    		 Non-handed, easily changed in the field

    Finish:

    		 Satin Chrome 26D (626)

    Key Override:

    		 Mortise, Kaba Cylinder (Schlage "C" Keyway) included

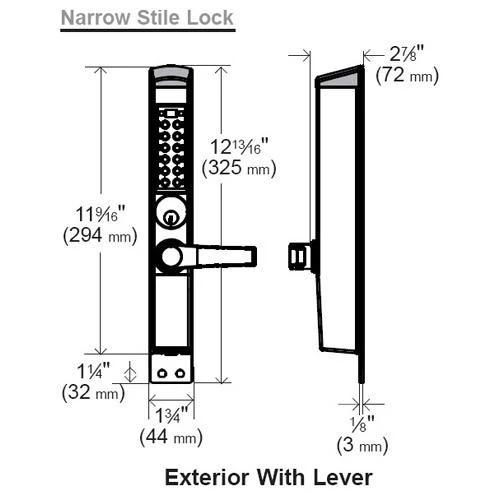

    Backset:

    		 31⁄32" (25 mm) minimum

    Minimum Stile Recommended:

    		 2" (51 mm)

    Door Preparation:

    		 Easily installs on narrow stile doors with four mounting screws

    Door Thickness:

    		 1¾" (44 mm)

    Accessibility Standard:

    Americans with Disabilities Act (ADA)

    Certification:

    ANSI/BHMA Grade 1 Certified

    Warranty:

    3 years manufacturer warranty


    Downloads:

    • Installation Guide
    • Spec Sheet


    Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact DORMA KABA directly at 1-800-849-8324 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
