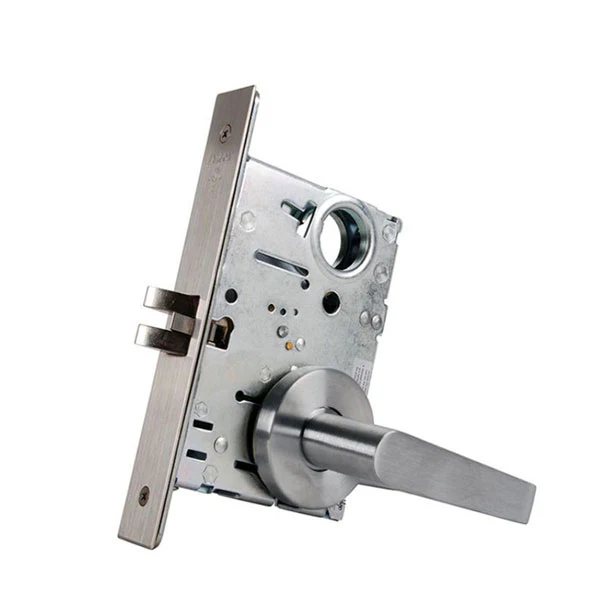

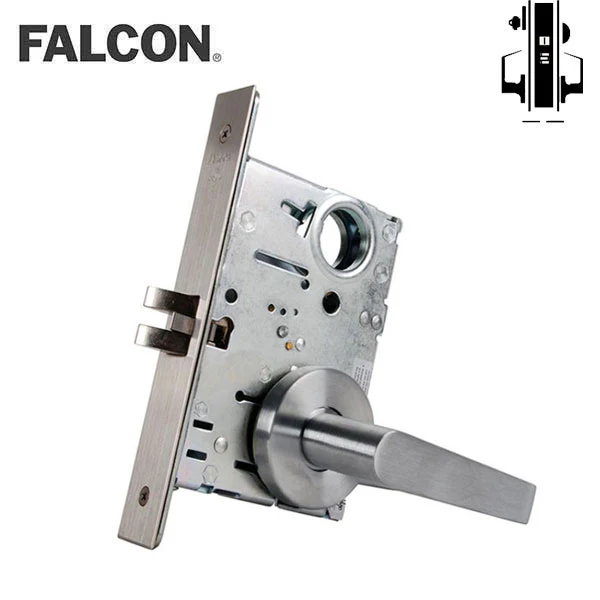

Falcon - MA521B - Cylinder Mortise Latch Bolt - Entrance - Right Handed - SFIC - Dane Lever - GALA Rose Trim - Satin Chrome - Fire Rated - Grade 1
Falcon - MA521B - Cylinder Mortise Latch Bolt - Entrance - Right Handed - SFIC - Dane Lever - GALA Rose Trim - Satin Chrome - Fire Rated - Grade 1
The Falcon MA Series lock delivers high performance at an affordable cost in an office, hospital, education, or other commercial projects. It provides security and is built to stand up to constant use without fail. The MA Series is one of Falcon’s toughest, most dependable locks.
Specifications:
| Door thickness | 1-3/4" (44mm) - 1-7/8" (47.6mm) standard |
| Backset | 2-3/4" (70mm) |
| Strike | Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed |
| Latch Bolt | Two-piece stainless steel, mechanical anti-friction latch bolt. 3⁄4" projection |
| Dead Bolt | 1" throw, stainless steel with two 13⁄16" diameter hardened steel, free-turning, saw-resistant roller |
| Cylinder | SFIC Less Core Prep |
| Case | Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available |
| Handing | Right Handed - Field Reversible |
| Keyways | Falcon “G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. |
| Fire Rating |
“A” Label 3 Hour Fire Doors Positive Pressure Rated |
| Certifications | ANSI A156.13, Grade 1, UL10B, UL10C |
