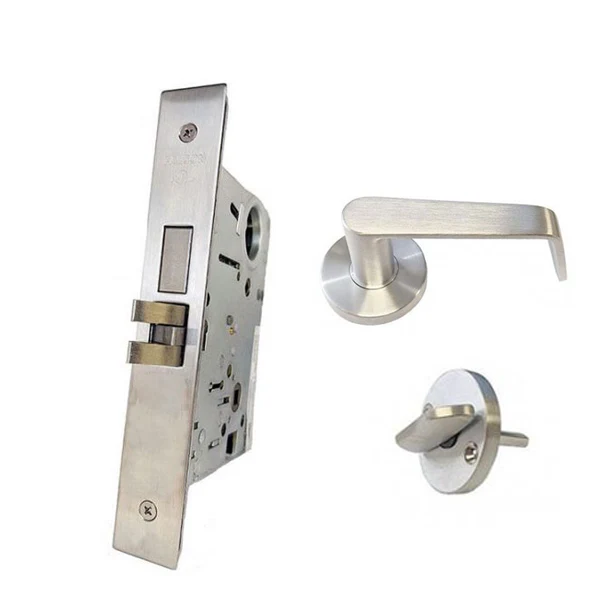

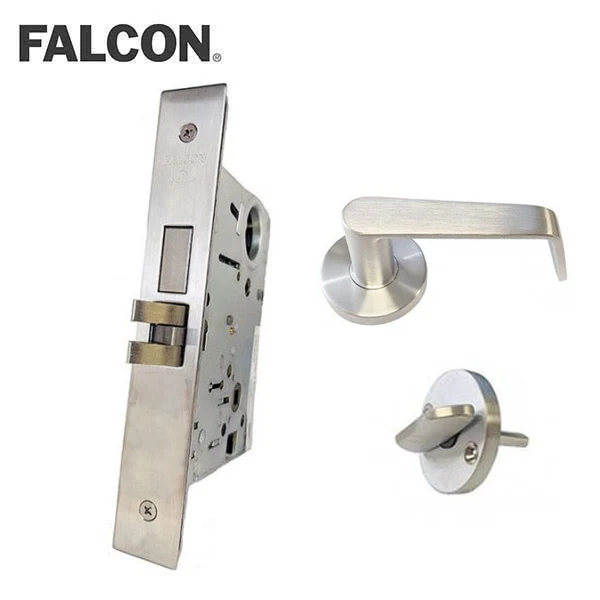

Falcon - MA571B - Cylinder Mortise Latch Bolt - Dormitory / Corridor - Optional Handing - SFIC Less Core - Dane Lever - GALA Rose Trim - Satin Chrome - Vacancy Indicator - Fire Rated - Grade 1
Falcon - MA571B - Cylinder Mortise Latch Bolt - Dormitory / Corridor - Optional Handing - SFIC Less Core - Dane Lever - GALA Rose Trim - Satin Chrome - Vacancy Indicator - Fire Rated - Grade 1
FLC-MA571B-DGMXXXX
The Falcon MA Series lock delivers high performance at an affordable cost in an office, hospital, education, or other commercial projects. It provides security and is built to stand up to constant use without fail. The MA Series is one of Falcon’s toughest, most dependable locks.
Specifications:
| Door thickness | 1-3/4" (44mm) - 1-7/8" (47.6mm) standard |
| Function | Latch bolt operated by knob/lever from either side. Dead bolt projected by key from outside and turn from inside. Operating inside knob/lever retracts both bolts and unlocks outside. |
| Backset | 2-3/4" (70mm) |
| Strike | Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed |
| Dead Bolt | 1" throw, stainless steel with two 13⁄16" diameter hardened steel, free-turning, saw-resistant roller |
| Cylinder | SFIC Less Core Prep |
| Case | Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available |
| Handing | Left Handed or Right Handed |
| Keyways | Falcon “G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. |
| Fire Rating |
“A” Label 3 Hour Fire Doors Positive Pressure Rated |
| Certifications | ANSI A156.13, Grade 1, UL10B, UL10C |
