Hager - 1447 - Drive in ball catch with strike - Optional Finish

Product image 1
1 / 8

Hager - 1447 - Drive in ball catch with strike - Optional Finish



Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:


    Specs

    Fasteners
    • Four #6 FPHWS
    Faceplate
    • 1" x 2-1/4" (25 mm x 57 mm)
    Material
    • Zinc housing, brass strike, plated steel ball
    Notes
    • Designed for use on cabinets and lightweight doors
    • Not intended for heavy weight applications
    • Ball adjusts in and out for various door and frame clearances
    • Polybag one each with steel screws
    • Hole diameter: 15/16" (24 mm)
    • Hole depth: 15/16" (24 mm)
    Product Description

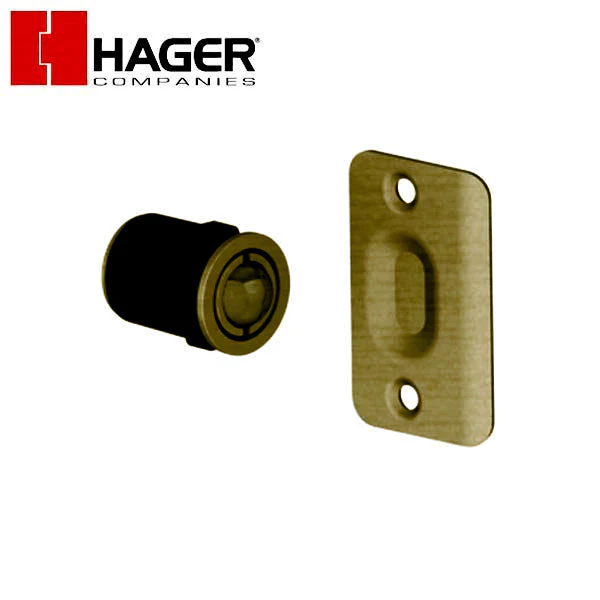

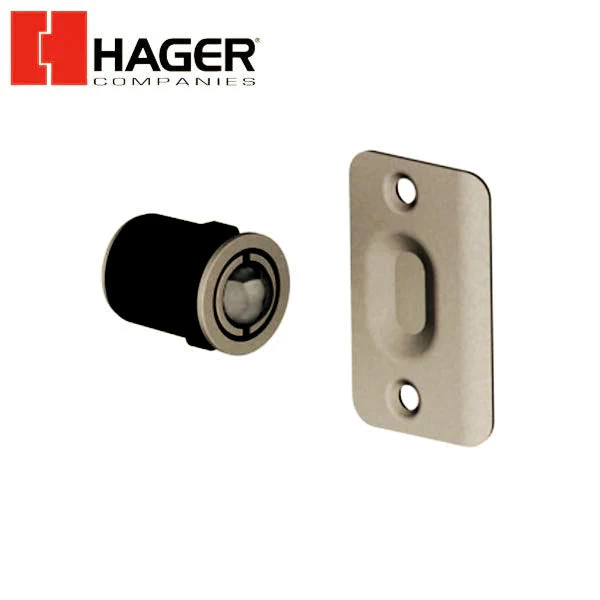

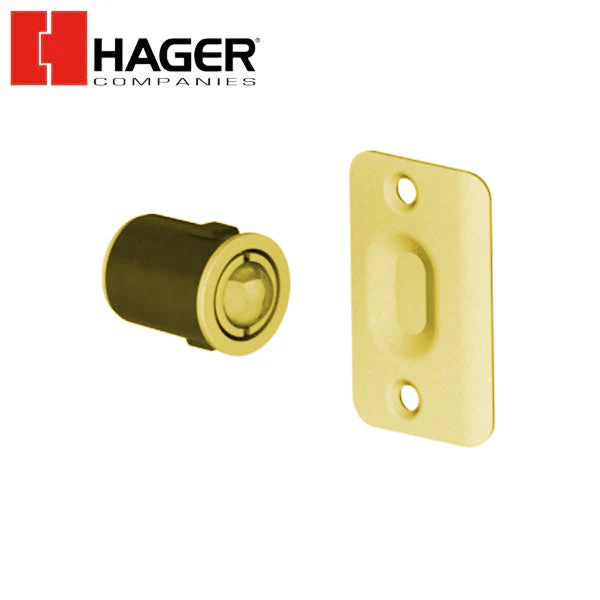

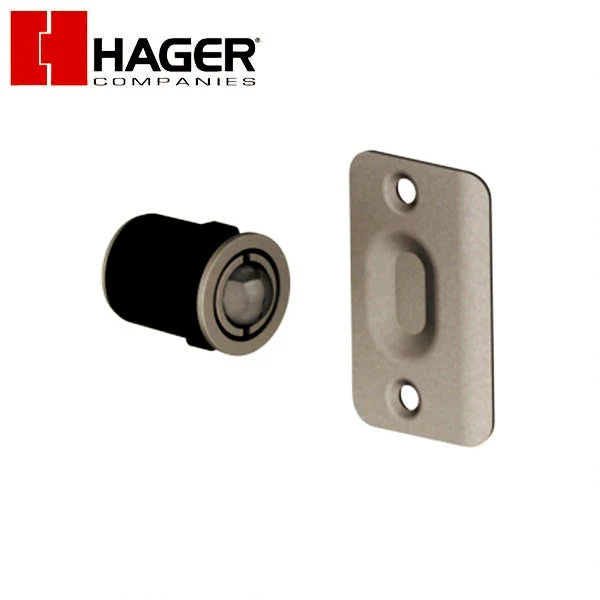

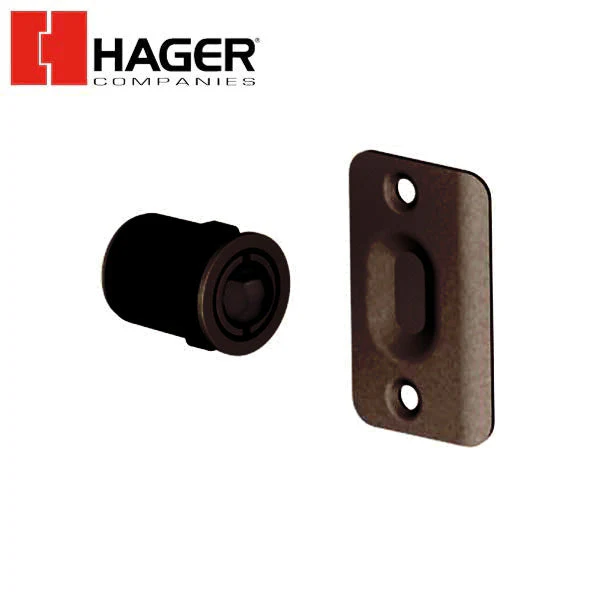

    • Drive in ball catch with strike
    Strike Size
    • 1-3/8" x 2-1/4" (35 mm x 57 mm)


    Downloads:

    Select Finish
    From $1.17

    Original: $3.35

    -65%
    Hager - 1447 - Drive in ball catch with strike - Optional Finish—

    $3.35

    $1.17

    Product Information

    Shipping & Returns

    Description



    Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


    More Details Below:


      Specs

      Fasteners
      • Four #6 FPHWS
      Faceplate
      • 1" x 2-1/4" (25 mm x 57 mm)
      Material
      • Zinc housing, brass strike, plated steel ball
      Notes
      • Designed for use on cabinets and lightweight doors
      • Not intended for heavy weight applications
      • Ball adjusts in and out for various door and frame clearances
      • Polybag one each with steel screws
      • Hole diameter: 15/16" (24 mm)
      • Hole depth: 15/16" (24 mm)
      Product Description
      • Drive in ball catch with strike
      Strike Size
      • 1-3/8" x 2-1/4" (35 mm x 57 mm)
