Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.

Specifications:

Backsets	2-3/4" (70mm)
Certifications	ADA Compliant ANSI A117.1 Accessibility Code UL/cUL Listed for all functions up to 3 hours "A" label single doors UL10C Positive Pressure Rated BHMA Certified ANSI A156.2, Series 4000, Grade 1 ANSI A250.13 Severe Windstorm Compliant Miami Dade County, FL NOA #17-1226.23
Cylinders/Cores	Keyed Different - standard Cylinder drilled 6 pin, Keyed 5 pin - standard Other Keying options, including 6-pin keyed, are available from the factory Zero-bit cylinders will be 6-pin keyed SFIC uncombinated or combinated, brass 6-pin or 7-pin cores sold separately LFIC 0-BIt or combinated, brass 6-pin cores sold separately
Door Thickness	1-3/8" - 2" (35 mm - 51 mm)
Exposed Trim	Wrought brass, bronze, and stainless steel The Lever is zinc-based and plated to match BHMA symbols
Functions	Storeroom (F86)
Keyway	SFIC No Core, Schlage C
Latchbolt Type	1/2" (13 mm) throw, stainless steel 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate Deadlocking latch bolt prevents manipulation when the door is closed

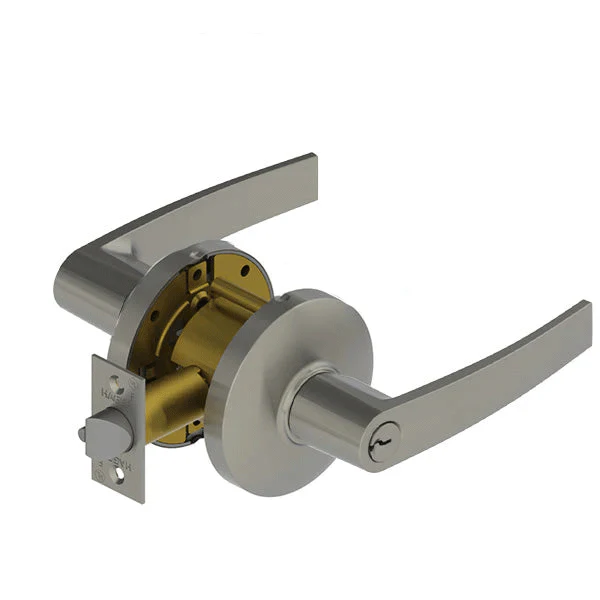

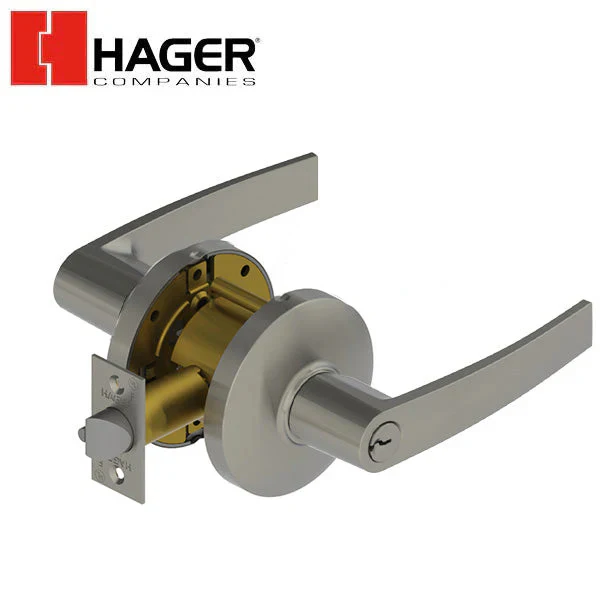

Lever Options	Archer
Rose Diameter	3-17/32" (90 mm)
Strikes	1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike, Square Corner
Voltage	3480EL/3480EU 12-24V AC/DC (250mA Max in rush, 10mA Max holding) 125 VAC (3 AMP maximum current) 30 VDC (2 AMP maximum current) Wire leads (22 AG current)
Warranty	Lifetime Manufacturer's warranty on mechanical components

Downloads:

• Spec Sheet
