Hager - 3495 - Lever - Intruder Classroom - 2-3/4" - Satin Chrome - Withnell Lever - Schlage C Keyway

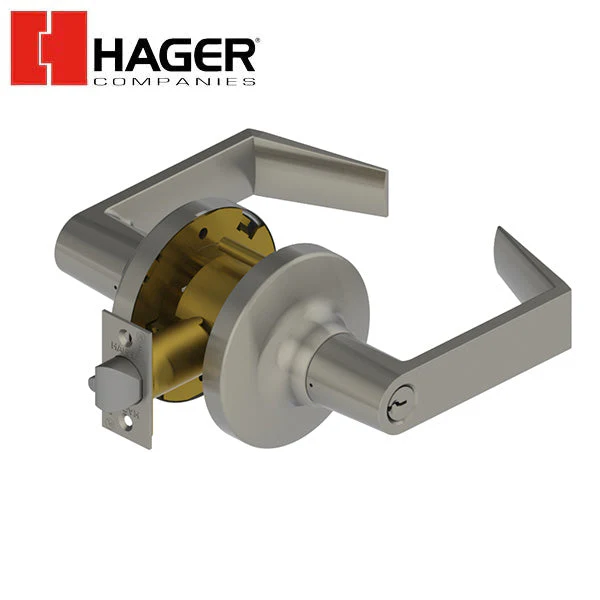

Product image 1
1 / 2

Hager - 3495 - Lever - Intruder Classroom - 2-3/4" - Satin Chrome - Withnell Lever - Schlage C Keyway



Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:


    Specs

    Certifications
    • ADA Compliant ANSI A117.1 Accessibility Code
    • UL/cUL Listed for all functions up to 3 hours "A" label single doors
    • UL10C Positive Pressure Rated
    • BHMA Certified ANSI A156.2, Series 4000, Grade 1
    • ANSI A250.13 Severe Windstorm Compliant
    • Miami Dade County, FL NOA #22-0816.08
    Functions
    • Intruder Classroom (F110)
    Lever Options
    • Archer, August and Withnell
    Cylinders/Cores
    • Keyed Different - standard
    • Cylinder drilled 6 pin, Keyed 5 pin - standard
    • Other Keying options, including 6 pin keyed, available from factory
    • Zero bit cylinders will be 6 pin keyed
    • SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately
    • LFIC Zero-BIt or combinated, brass 6 pin cores sold separately
    Backsets
    • 2-3/4" (70mm) - Standard
    • 2-3/8" (60mm) - Optional
    • 3-3/4" (94mm) - Optional
    • 5" (128mm) - Optional
    Door Thickness
    • 1-3/8" - 2" (35 mm - 51 mm)
    Exposed Trim
    • Wrought brass, bronze, and stainless steel
    • Lever is zinc based, plated to match BHMA symbols
    • Locking indicator arrow stamped on the interior rose
    Features
    • No exposed mounting screws
    • Non-handed
    • Free wheeling levers
    Keyway
    • Schlage C - Standard, Other keyways optional
    Latchbolt Type
    • 1/2" (13 mm) throw, stainless steel
    • 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate
    • Deadlocking latchbolt prevents manipulation when door is closed
    • 3/4" (19 mm) throw latchbolt available
    Notes
    • SFIC option available (Cores are sold separately - standard)
    • LFIC option available (Cores sold separately - standard)
    • 2-1/8" (54mm) diameter with thru-bolt holes (cross bore)
    • Latch hole - 1" (25mm) diameter (edge bore)
    Options
    • Lead Lining
    • Tactile Warning
    • Split Finish
    Rose Diameter
    • 3-17/32" (90 mm)
    Strikes
    • 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
    • Optional strikes available
    Warranty
    • Lifetime
