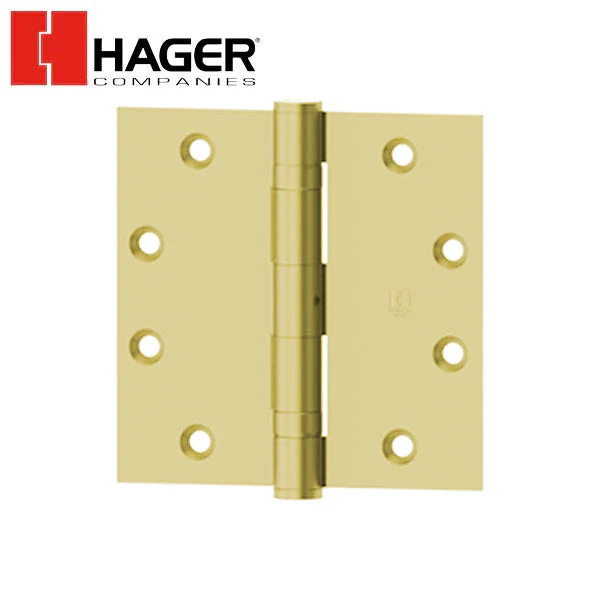

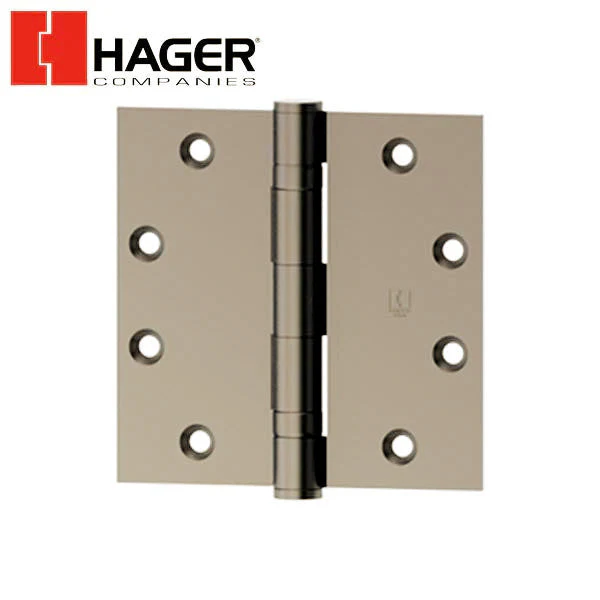

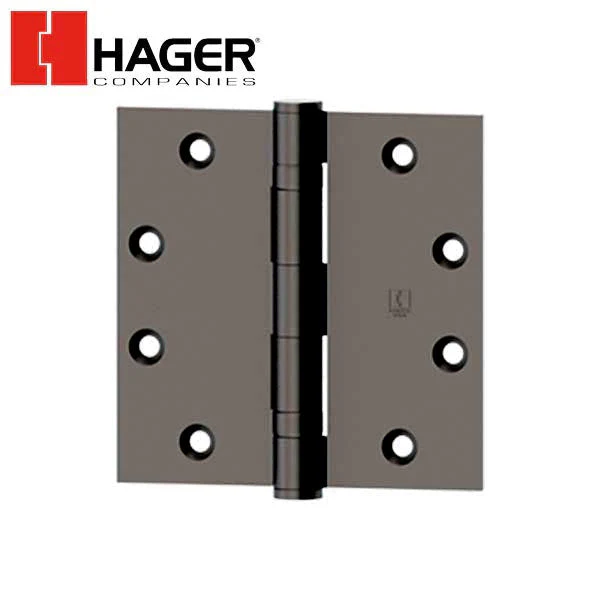

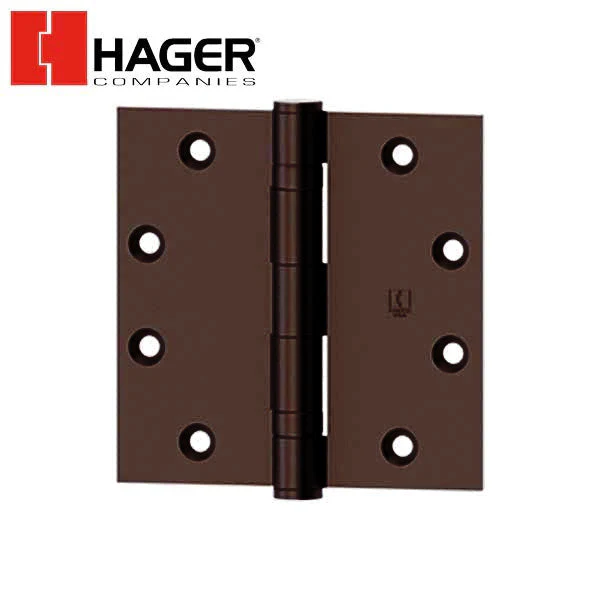

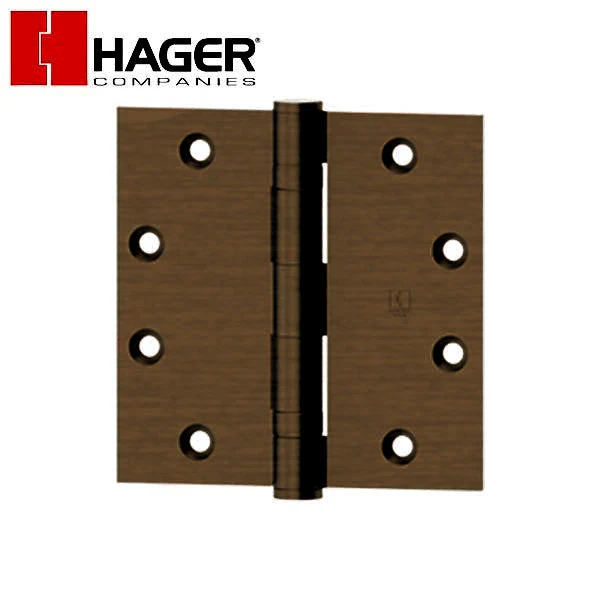

Hager - BB1279 - Full Mortise - Ball Bearing - Standard Weight - Optional Size - Optional Finish - Optional Pin Function

Product image 1
1 / 10

Hager - BB1279 - Full Mortise - Ball Bearing - Standard Weight - Optional Size - Optional Finish - Optional Pin Function



Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:


    Specs

    Certifications
    • ANSI A8112
    Electric Modifications
    • EMN (Electric Monitor Only), ETW (Electric Through-Wire Only), ETM (Electric Through-Wire with Monitoring), Quick Connect
    Features
    • Two ball bearings. Non-rising removable pin with button tip and plug.
    Fire Rating
    • Complies with NFPA80 requirements for use on fire rated door assemblies
    Knuckles
    • 5
    Material
    • Steel with Steel Pin
    Notes
    • Available with reversible hole pattern.
    Options
    • Sizes (below)
    • NRP (Non-removable pin)
    • Stamped with UL logo when ordered for export

    Hinge Size (inches) Hinge Size (mm) Gauge of Metal Hole Count Screw Size (Machine) Screw Size (Wood)
    4 x 4 102 x 102 0.129 8 1/2 x 12-24 1 1/4 x 12
    4 1/2 x 4 114 x 102 0.134 8 1/2 x 12-24 1 1/4 x 12
    4 1/2 x 4 1/2 114 x 114 0.134 8 1/2 x 12-24 1 1/4 x 12
    5 x 4 127 x 102 0.145 8 1/2 x 12-24 1 1/4 x 12
    5 x 4 1/2 127 x 114 0.145 8 1/2 x 12-24 1 1/4 x 12
    5 x 5 127 x 127 0.145 8 1/2 x 12-24 1 1/4 x 12


    Downloads:

    Select Finish
    Select Size
    Select Pin Function
    From $6.10

    Original: $17.44

    -65%
    Hager - BB1279 - Full Mortise - Ball Bearing - Standard Weight - Optional Size - Optional Finish - Optional Pin Function—

    $17.44

    $6.10

    Product Information

    Shipping & Returns

    Description



    Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


    More Details Below:


      Specs

      Certifications
      • ANSI A8112
      Electric Modifications
      • EMN (Electric Monitor Only), ETW (Electric Through-Wire Only), ETM (Electric Through-Wire with Monitoring), Quick Connect
      Features
      • Two ball bearings. Non-rising removable pin with button tip and plug.
      Fire Rating
      • Complies with NFPA80 requirements for use on fire rated door assemblies
      Knuckles
      • 5
      Material
      • Steel with Steel Pin
      Notes
      • Available with reversible hole pattern.
      Options
      • Sizes (below)
      • NRP (Non-removable pin)
      • Stamped with UL logo when ordered for export

      Hinge Size (inches) Hinge Size (mm) Gauge of Metal Hole Count Screw Size (Machine) Screw Size (Wood)
      4 x 4 102 x 102 0.129 8 1/2 x 12-24 1 1/4 x 12
      4 1/2 x 4 114 x 102 0.134 8 1/2 x 12-24 1 1/4 x 12
      4 1/2 x 4 1/2 114 x 114 0.134 8 1/2 x 12-24 1 1/4 x 12
      5 x 4 127 x 102 0.145 8 1/2 x 12-24 1 1/4 x 12
      5 x 4 1/2 127 x 114 0.145 8 1/2 x 12-24 1 1/4 x 12
      5 x 5 127 x 127 0.145 8 1/2 x 12-24 1 1/4 x 12


      Downloads:
