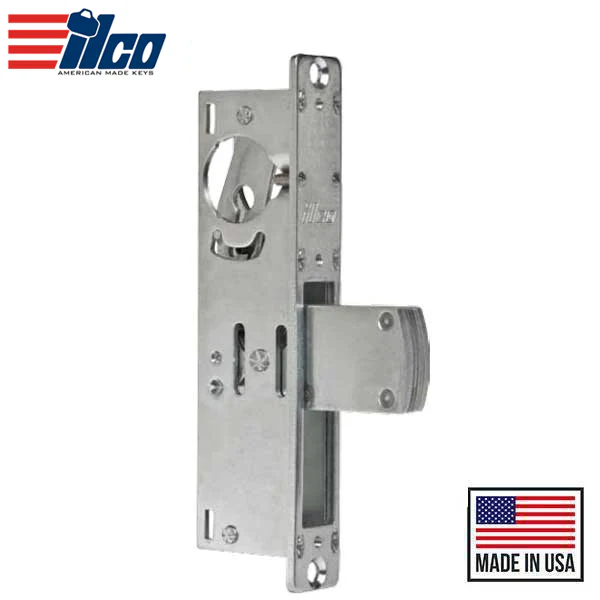

Ilco - 185 Deadbolt Mortise Lock Body - 1 1/8" Backset - Single Pack
ILCO Deadbolt Mortise Lock Body 1 1/8" Backset, Individual Single Pack. No Handing. fits aluminum stile doors. Five-ply laminated steel bolt with concealed hardened steel pin provides maximum security on single leaf doors.
Specifications:
| For Use With: | For Aluminum Stile Doors |
| Features: | Five-ply laminated steel bolt with concealed hardened steel pin provides |
| Grade: | Cycle testing exceeds ANSI Grade 1 standards |
| Construction: | Steel case with corrosion resistant plating |
| Cylinder: | Accepts standard 1 5/32" (29.36 mm) Zinc or Brass threaded mortise cylinder (Cylinder not Included) |
| Accepts Deadlatch: | Interchangeable with 451/452 Series Deadlatches |
| Backset: | 1 1/8" (28.58 mm) |
| Bolt Dimension: | 5/8"W x 2 7/8"L (15.88 mm x 73.03 mm) |
| Throw: | 1 3/8" (34.9 mm) |
$15.86
Ilco - 185 Deadbolt Mortise Lock Body - 1 1/8" Backset - Single Pack—
$15.86
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
ILCO Deadbolt Mortise Lock Body 1 1/8" Backset, Individual Single Pack. No Handing. fits aluminum stile doors. Five-ply laminated steel bolt with concealed hardened steel pin provides maximum security on single leaf doors.
Specifications:
| For Use With: | For Aluminum Stile Doors |
| Features: | Five-ply laminated steel bolt with concealed hardened steel pin provides |
| Grade: | Cycle testing exceeds ANSI Grade 1 standards |
| Construction: | Steel case with corrosion resistant plating |
| Cylinder: | Accepts standard 1 5/32" (29.36 mm) Zinc or Brass threaded mortise cylinder (Cylinder not Included) |
| Accepts Deadlatch: | Interchangeable with 451/452 Series Deadlatches |
| Backset: | 1 1/8" (28.58 mm) |
| Bolt Dimension: | 5/8"W x 2 7/8"L (15.88 mm x 73.03 mm) |
| Throw: | 1 3/8" (34.9 mm) |
