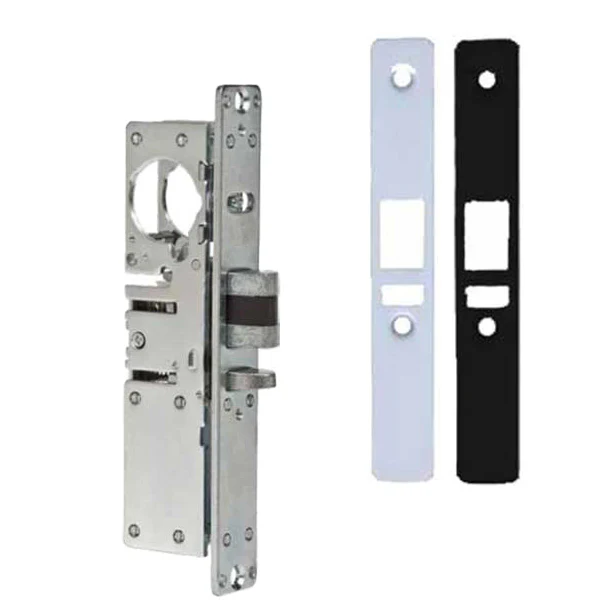

Ilco - 451 Deadlatch Mortise Lock Body - 1 1/8" Backset - LH - Flat Faceplate - Clear/Dark Bronze Faceplates
Ilco - 451 Deadlatch Mortise Lock Body - 1 1/8" Backset - LH - Flat Faceplate - Clear/Dark Bronze Faceplates
ILCO Deadlatch Mortise Lock Body, Left-Handed Orientation, 1 1/8" Backset, Flat Faceplate included in Clear Aluminum and Dark Bronze. Offers key controlled bolt holdback feature which provides flexibility for traffic control on buildings that require free entrance during specific times and exit only for others. Auxiliary latch bolt feature when in locked position provides additional security
Specifications:
| For Use With: | Aluminum Stile Doors |
| Finish: | Aluminum |
| Faceplate: | Clear Aluminum & Dark Bronze |
| Features: | Key controlled bolt holdback, Auxiliary latch bolt for additional security |
| Features: | Zinc latch with Delrin insert for quiet operation |
| Handing: | Left-Handed, includes field reversible handing |
| Construction: | Steel case with corrosion resistant plating |
| Cylinder: | Accepts standard 1 5/32" (29.36 mm) Zinc or Brass threaded mortise cylinder (Cylinder not Included) |
| Grade: | Cycle testing exceeds ANSI Grade 1 standards |
| Deadbolt: | Interchangeable with 185 Series Deadbolts |
| Backset: | 1 1/8" (28.58 mm) |
| Latchbolt Dimensions: | 5/8"W x 1 1/2"L (15.88 mm x 38.1 mm) |
