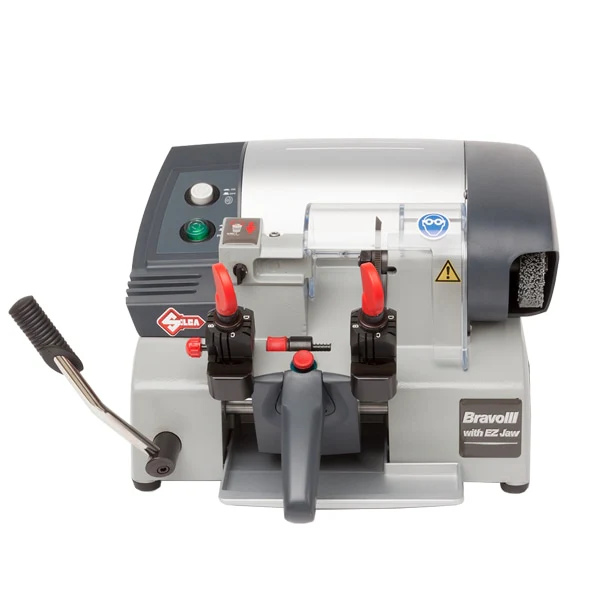

The Bravo III is a high precision, heavy duty semi-automatic key machine designed for ultra reliability and ease of use.

The Bravo III key machine is provided with the CU50A cutter and a corresponding cutter guide. The durable cobalt steel cutter ensures a smooth, clean, accurate cut. The Bravo III is designed to duplicate common cylinder and automotive key blanks as well as Titan®and older GM® with 90 degree first cut bitting characteristics.

•


• Wide spacing between vise jaws accommodates new longer keys and large headed keys.

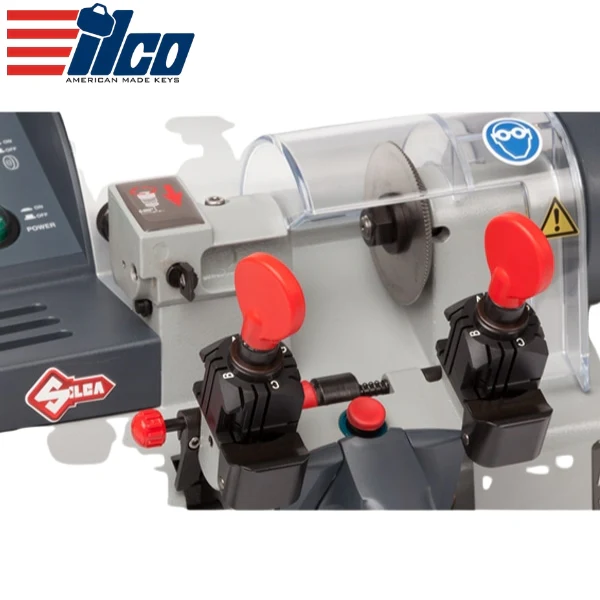

• Versatile four-position EZ-Jaw® vise jaws securely grip virtually all residential, commercial, and automotive keys¦ including double-sided types, without requiring adapters. Designed with the user in mind, they are rotatable from one position to another without lifting first.
• Carriage is spring loaded, provides consistent cutting pressure, and reduces potential for miscuts.
• Automatic cutter start feature controlled by micro-switch is activated by raising or lowering the carriage.
• Precise adjustments. A tracer point with micrometer dial regulation makes it quick and easy to adjust depth of cut; simple to replace when worn.
• Carriage release button can only be activated when the key gauges are in the down position, preventing potential cutter contact.
• Two carriage shafts ensure sensitivity and precision in the cutting movement.
• Features a œsoft-touch� deburring nylon brush.

Motor: 110V standard; 1/4 hp capacitor start	Width: 15�
Vise Jaws: EZ-Jaw	Depth: 20�
Cutter: CU50A milling cutter, flat left side, cobalt steel	Height: 10�
Brush: D925102ZR	Weight: 47 lbs. (21.4kg)

Downloads:

• Bravo III Brochure
• Specialist Guide
• Owners Manual
