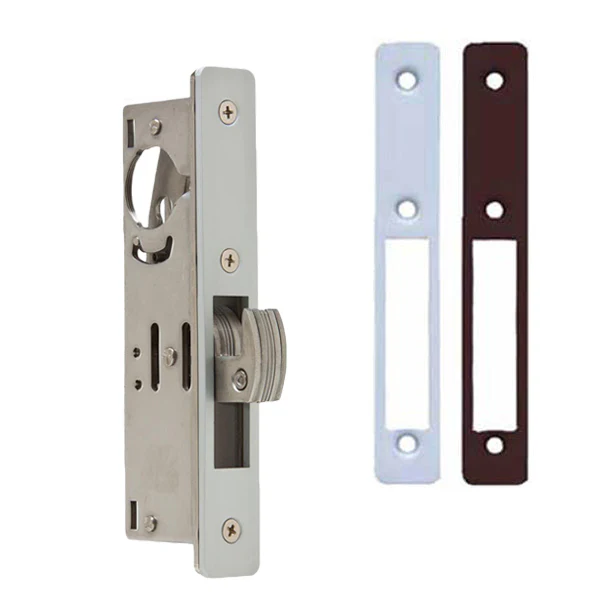

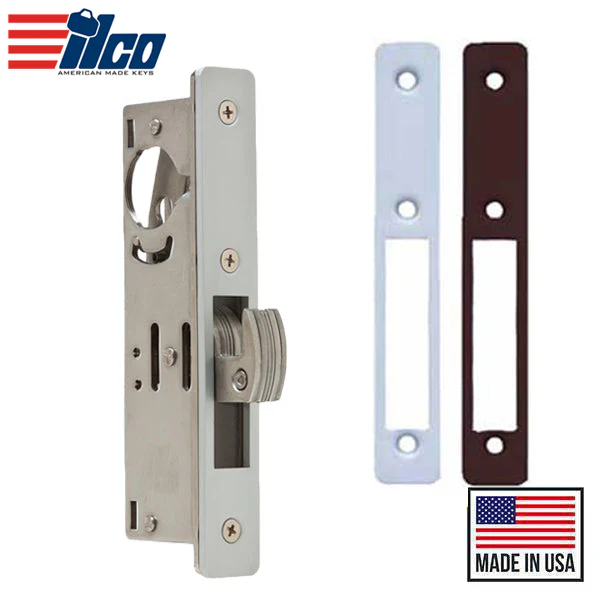

Ilco - Deadbolt Mortise Lock - Hookbolt - Storefront - 1-1/2" Backset - Clear/Dark Bronze Faceplate
1 / 2
Ilco - Deadbolt Mortise Lock - Hookbolt - Storefront - 1-1/2" Backset - Clear/Dark Bronze Faceplate
Storefront Hookbolt Mortise Lock HB185 - Flat, No Hand, 1 1/2 Backset, Single Pack, 628 / 313 Aluminum & Duranodic Faceplates
Features:
- Five-ply laminated steel bolt with concealed hardened steel pin provides maximum security on single-leaf doors
- Cycle testing exceeds ANSI Grade 1 standards
- Steel case with corrosion-resistant plating
- Accepts standard 1 5/32" (29.36 mm) Zinc or Brass threaded mortise cylinder or thumb turn
- Interchangeable with 451/452 Series Deadlatches
- Includes two faceplates - 628 / 313 Aluminum & Duranodic
- For Aluminum Stile Doors
Specifications:
| Face-Plate | Flat |
| Backset | 1 1/2" (38.1 mm) |
| Bolt | 5/8”W x 1-3/8" (15.88 mm x 34.925 mm) |
| Throw | 13/16" (20.6 mm) |
| Case | Steel with corrosion-resistant plating |
| Handling | Non-Handle |
| Packout | Single Pack |
| Finish | Aluminum and Dark Bronze |
Downloads:
$6.76
Original: $19.32
-65%Ilco - Deadbolt Mortise Lock - Hookbolt - Storefront - 1-1/2" Backset - Clear/Dark Bronze Faceplate—
$19.32
$6.76Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Storefront Hookbolt Mortise Lock HB185 - Flat, No Hand, 1 1/2 Backset, Single Pack, 628 / 313 Aluminum & Duranodic Faceplates
Features:
- Five-ply laminated steel bolt with concealed hardened steel pin provides maximum security on single-leaf doors
- Cycle testing exceeds ANSI Grade 1 standards
- Steel case with corrosion-resistant plating
- Accepts standard 1 5/32" (29.36 mm) Zinc or Brass threaded mortise cylinder or thumb turn
- Interchangeable with 451/452 Series Deadlatches
- Includes two faceplates - 628 / 313 Aluminum & Duranodic
- For Aluminum Stile Doors
Specifications:
| Face-Plate | Flat |
| Backset | 1 1/2" (38.1 mm) |
| Bolt | 5/8”W x 1-3/8" (15.88 mm x 34.925 mm) |
| Throw | 13/16" (20.6 mm) |
| Case | Steel with corrosion-resistant plating |
| Handling | Non-Handle |
| Packout | Single Pack |
| Finish | Aluminum and Dark Bronze |
Downloads:
