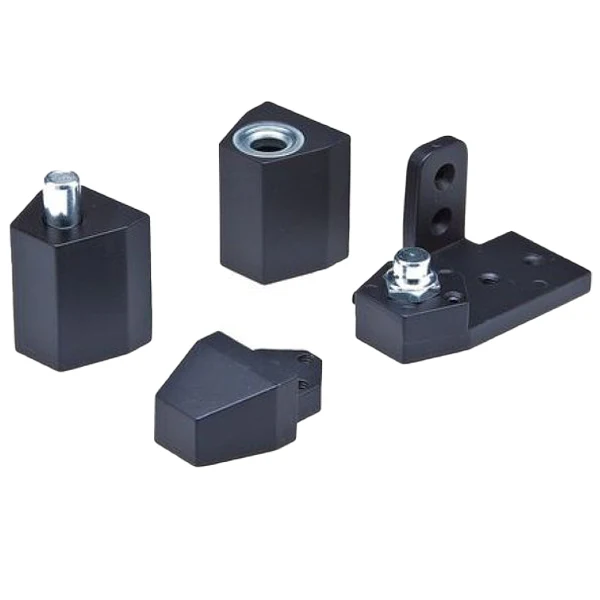

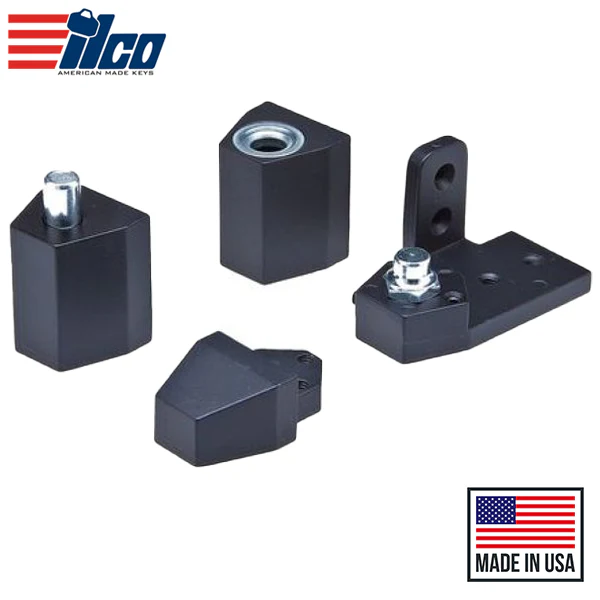

Ilco - Right Door Pivot Hinge Set - Duronotic Dark Bronze - RH
KABA ILCO Flush door pivot hinge set, right handed orientation. 10-Series, with a duronotic dark bronze finish. For surface mounting on Vista Wall and Old Castle style aluminum doors and frames. Vertical adjustment of 1/8" (3.18 mm).
Features:
- Die cast aluminum construction
- Full race ball bearing incorporated into bottom pivot portion
- Weight of door rests on floor mounted pivot portion; no sag
- Easily replaceable from inside door
- Theft resistant, weatherproof
- 1/8" (3.18 mm) vertical adjustment
- Duronotic Dark Bronze Finish
- Sets include fasteners
Specifications:
| Construction: | Pivot Hinge |
| Material: | Diecast Aluminum |
| Finish: | Duronotic Dark Bronze |
| Holes Per Leaf: | 3 and 4 |
| Load Capacity: | 125 lbs. |
| Mounting: | Half Surface |
| Orientation: | Right Hand |
| Pin Diameter: | 7/16" |
| Range of Motion: | 180 degrees |
| Features: | Includes fasteners for Vista Wall and Old Castle style doors |
| Bearing Type: | Ball |
| Ligature Resistant: | No |
