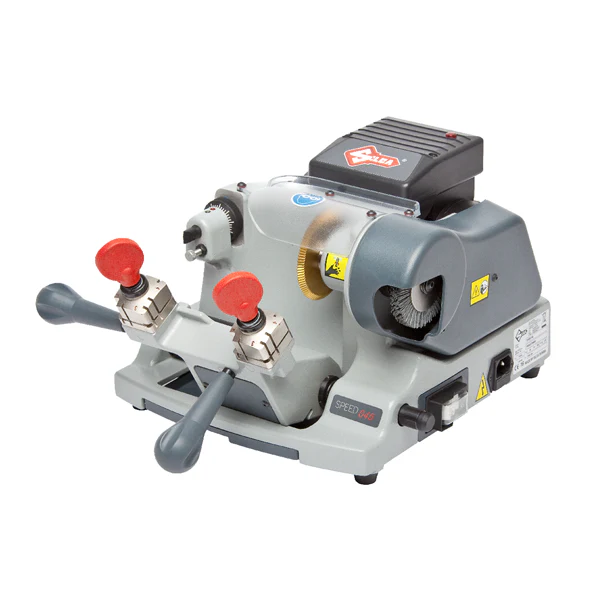

Designed for duplicating edge cut/flat style keys, the Speed 045 Edge-Cut (Mechanical) offers accurate and economical key cutting. This manual model is an ideal basic duplicator for any key cutting outlet. The Speed 045 is designed to duplicate edge-cut automotive, residential and commercial keys and includes features that any user will readily appreciate. The modern, open style, safety details and operational features make this model a choice model for store or shop, and with the included mounting bracket, it is also an excellent choice for mobile use.

• Four-sided, nickel-plated jaws for clamping the majority of all edge cut/flat type keys. Smooth rotation by simply twisting into position
• Slotted jaw surfaces accommodate tip stop bars and a rigid shoulder gauge design to allow for greater accuracy when loading and gauging keys
• Wide spacing 3 1/2” (88.9 mm) spacing between clamps accommodate large bow (head) and long blade keys, including flip style keys
• Depth tracer system with micro adjustment for precise calibration in increments of .00098” (0.025mm)
• TiN (Titanium Nitride) coated cutter for longer life and oxidation resistance
• Nylon deburring brush
• Electro-magnetic “main” safety switch with a separate cutter motor switch for easy access
• Large transparent cutter safety shield contains chips and provides a storage area for accessories
• Large drawer-type swarf (chip) tray under the carriage for easy access
• Mounting bracket included for securing the machine to counter
• Two-year warranty

Power Supply: 120V-60Hz	Cutter: TiN coated
Maximum absorbed power: 2.8 Amp, 200 Watt	Brush: Nylon, 5/8” (15.87 mm) bristles
Cutter motor: single phase and speed	Width: 15.75” (400 mm)
Movements: by ball joint on rectified carriage	Depth: 18.1” (460 mm)
Tool Speed: 1350 rpm	Height: 9.8” (250 mm)
Carriage Runs: 1.65” (42 mm)	Weight: 31 lbs. (14 kg)
Operation: Edge-Cut (Mechanical)
