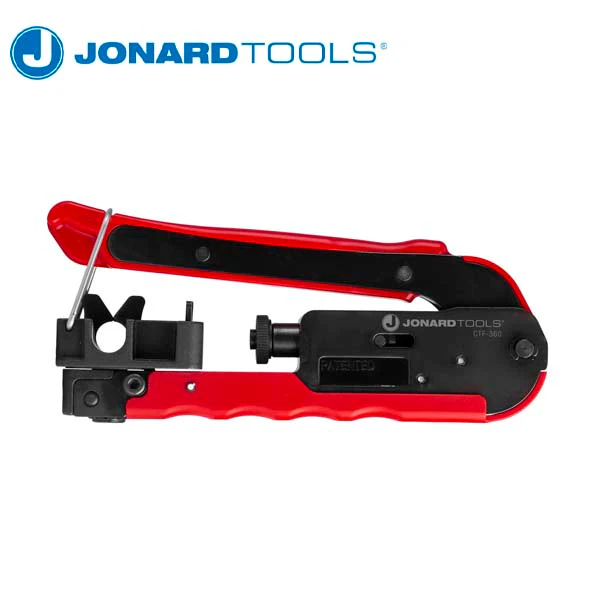

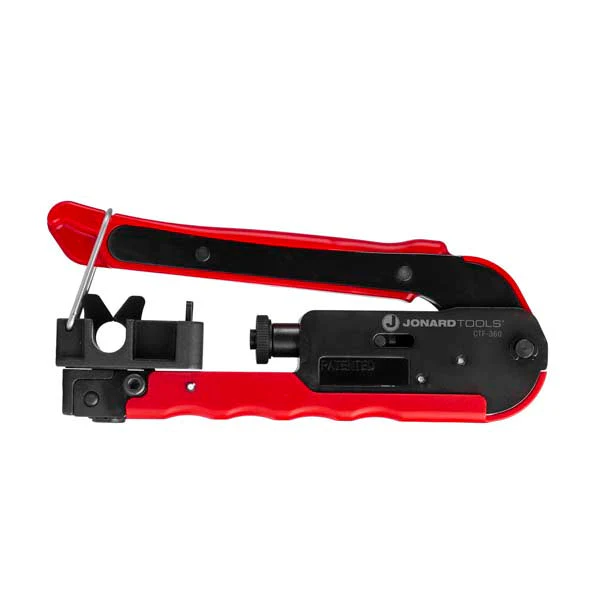

Using specially designed jaws to hold connectors in place while compressing, this PATENTED CTF-360 is designed to hold and compress connectors requiring a full 360 degree support. Perfect tool for short F connectors for RG59/6 cables and F connectors for RG7/11 cables. This tool also features the following:

• PATENTED rotatable head provides 360° connector support for short F connectors used on RG59/6 cables and for F connectors used on RG7/11 cables
• Made of durable high carbon steel with a black oxide finish
• Ergonomic finger groove grips provide extra comfort and support while crimping
• Fixed design so no adjustments are needed
• Spring-loaded hinge automatically opens the tool
• Ring loop keeps tool closed when not in use

Compatible Connectors:

• PCT: DRS/TRS 7/11, TRS 6/9/59 & Mini/Headend, TRS RA 6/11,
• PPC: CMP6, CMP6Q, CMP59, CMP59Q, CMP11, EX6XL, EX59XL, EX59XLHE, EX6XLWS, EX6LP , EX7, EX7N716, EX11, EX11N716, EX320QR, EX320N716, EX59XLK, EX6XLK, EX6XLP, EX7N716WS, EX59XLK, EX6XLK, EX6XLP, EX7N716WS, EX11N716WS, EX59XLWS, EX11N716WSPLUS, EX11N716PLUS, EX7N716WSPLUS, EX7N716PLUS, EX6XLPLUS, EX6XLWSPLUS, EX59XLPLUS, EX59XLWSPLUS, EX6XLWS, EX6IEC
• Digicon: DS6, DS59, DS59Q, DS11, DS7
• Belden: SNS11A5TP275, SNS59Q5NS, SNS1P59QS, SNS11A5NS, SNS7ASNS, SNS1P6, SNS59TP275, SNS6TP275, SNS7BNS, SNS1P59, SNS1P59HEL, SNS7BQ, SNS7AS, SNS7B
• Corning Gilbert UltraEase: GF-UE-59, GF-UE-59Q, GF-UE-6, GF-UE-6Q, GF-UE-5.1, GF-URS-6-SR, GF-URS-59-SR, GAF-URS-11MH
• ATX Networks: 9-MPF-CQ
• Plus many other brands.

Specifications
