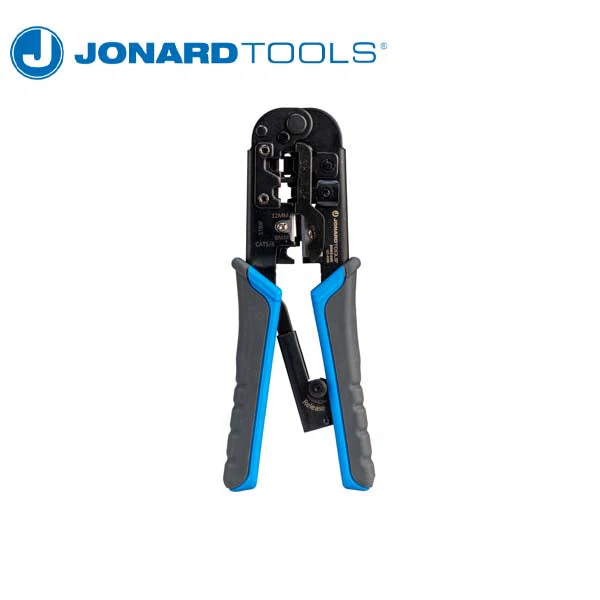

Designed to crimp RJ11/12 and RJ45 connectors onto CAT3, CAT5/5e, and CAT6 cables, this pass-through connector crimper is perfect for any network installer. This crimper features the following:

• Easily crimps pass-through RJ45 connectors without any measuring needed
• Crimps 4, 6, and 8 position modular connectors (RJ11/12 and RJ45)
• Cleanly trims the wires flush to the end face of pass-through RJ45 connectors
• Intended for use with 22 AWG-28 AWG flat/round, solid/stranded telephone and data cables
• Ratcheted, ultra-stable platform for consistent terminations with low hand force
• Durable steel construction for high durability and long life
• Ergonomically designed dual material cushion grip handles for greater comfort
• The blades are made for heavy-duty use and can perform up to 3,000 cuts
• Replacement blade set available: UC-4569RB

Intended for use with our RJ45 Pass-Through connectors for CAT5 and CAT6 cables: RJ45-5100 and RJ45-6100

Specifications

Cable Type	CAT3, CAT5, CAT5e, CAT6 cables, can also cut and strip round STP/UTP/flat phone cables
Crimp Type	Pass-Through
Handle	Dual Material Cushion Grip
Dimensions	7.5” x 2.5” x 7/8” (19.05 cm x 6.35 cm x 2.22 cm)
Weight	0.72 lb (328.696 g)
UPC #	811490018105

Downloads

• Spec Sheet
