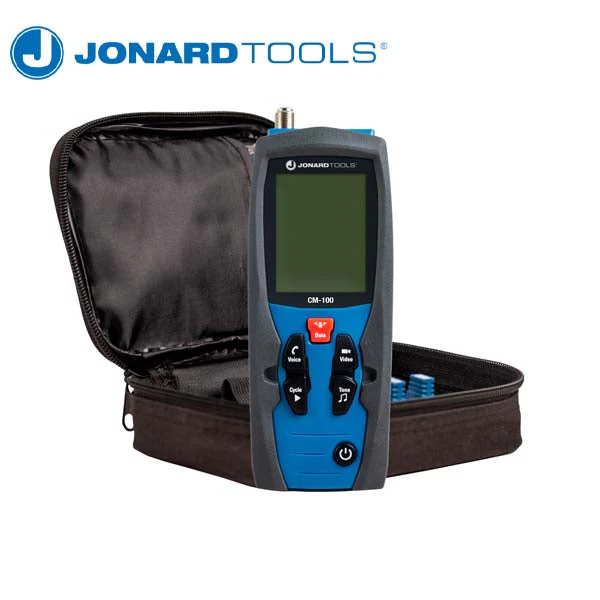

Jonard Tools - Cable Mapper Pro
Designed for finding and identifying up to 8 COAX and network cables in main cable boxes, this cable mapper and toner is the perfect tool for use on cables for CATV, network installations, satellite installations, telephone systems, audio-video equipment, CCTV, and security & alarm installations. This 8-way cable mapper and toner kit features the following:
- Maps up to 8 COAX or Network Cables simultaneously, up to 1,000 ft
- Tone Generator makes it quick and easy to locate cables in wiring closets or patch panels
- Tests Network and Telephone Cables using RJ11 or RJ45 connectors for shorts and wire mispairs
- Backlit LCD clearly maps out connections and describes wiring faults when testing
- Rugged rubber housing protects it from accidental drops and damage
- Live voltage detection warns you if the cable is live
- Powered by (2) AA Batteries (included) and automatically powers off after 30 minutes to conserve battery life
Specifications
| Includes |
Cable Mapper/Tester/Toner, 8 COAX Identifiers, 8 Network Cable Identifiers, 2 Data Patch Cords, Coax Patch Cord, Network Cable Remote, Rugged Nylon Case, 2 AA Batteries, and an Instruction Sheet |
|---|---|
| Display |
Backlit LCD |
| Max Cable Length |
1000 ft (304.8 m) |
| Max DC Cable Resistance |
100 Ohms |
| Batteries |
x2 AA |
| Dimensions |
4.75" x 2.1" x 6.5" (12.1 cm x 5.3 cm x 16.5 cm) |
| Weight | 0.93 lb (422.22 g) |
| UPC # | 810053350874 |
