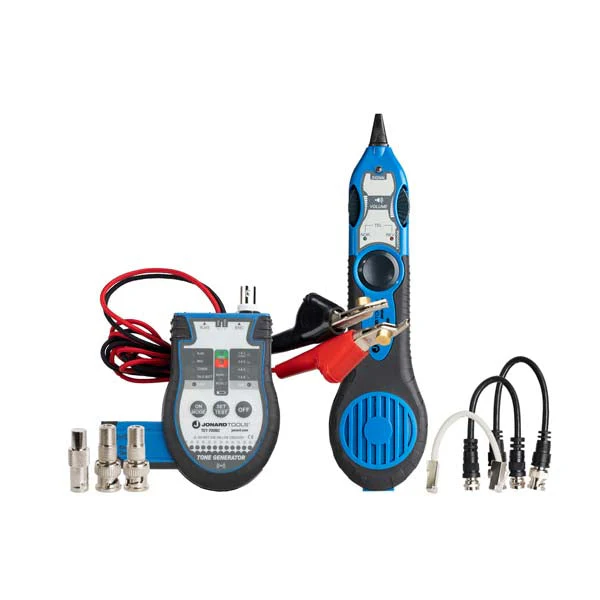

Designed to identify, trace, and test the continuity of BNC & F connectorized COAX cables, network cables using RJ45 connectors, and telephone lines using 6P2C/4P2C plugs. This multi-function cable tester tone and probe kit is the perfect kit for any Voice Data Video (VDV) professional. This kit features the following:

TET-200 - Tone Tracing Probe+:

• Plastic probe tip prevents accidental shorts
• LED light provides a visual indication of signal strength
• Able to check the polarity of many 6P2C/4P2C telephone jacks
• Adjustable volume knob and headphone jack assist in tracing wires
• Works with many other manufacturers’ analog tone generators
• Includes (1) 9V battery required for operation

TET-700BC - Cable Tester & Toner+ w/ ABN:

• Remote terminator can be used to test network cables with ease
• Provides tone via RJ45 and BNC connectors or test clips
• Provides talk power to a telephone for testing
• Two different musical tones to choose from
• Works with our TEP-200 Tone Tracing Probe+ or others to identify cables
• Includes TET-6 Accessory Kit and (1) 9V battery required for operation

Specifications

Application	Wire Toning & Tracing
Connectors	(2) ABN (Angled Bed of Nails) clips, (1) RJ45, (1) BNC, (1) F Connector
Max Distance	0.62 mi (1000 m)
Standards	CE Standards
Battery Type	(2) 9V included
UPC #	810053350065

Downloads:

• Spec Sheet
