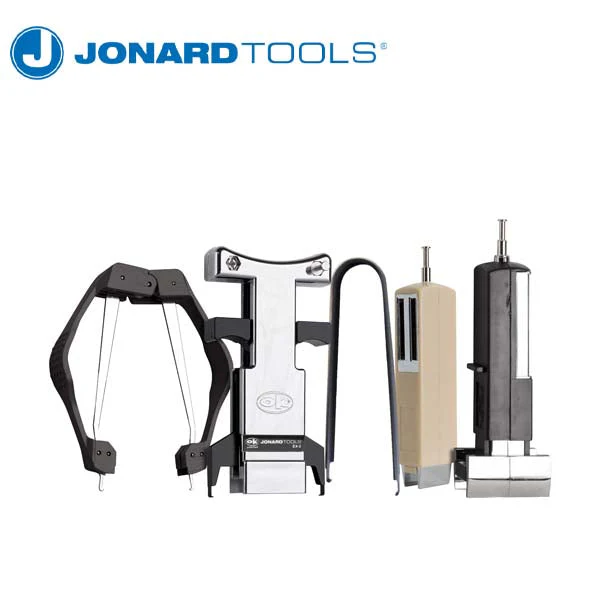

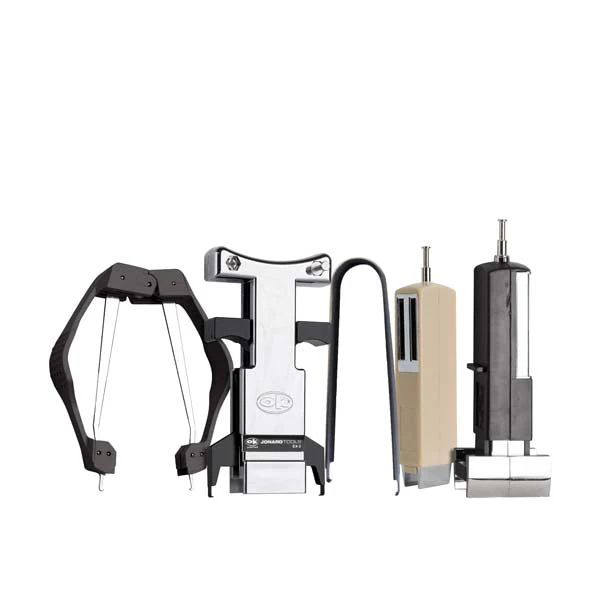

Jonard Tools - IC Insertion/Extraction Kit

Product image 1
1 / 2

Jonard Tools - IC Insertion/Extraction Kit


This tool kit is designed to facilitate the installation and extraction of DIP IC and PLCC chips on circuit boards. All included tools are CMOS safe and include grounding lugs where appropriate.

Kit includes one each of the following:

  • EX-1 DIP IC Extractor (8-24 pins)
  • EX-2 DIP IC Extractor (24-40 Pins)
  • EX-5 PLCC Extractor, ESD Safe
  • MOS-1416 Insertion Tool (14-16 Pins)
  • MOS-2428 Insertion Tool (24-28 Pins)

    Specifications


      Application Type

      Insertion and Extraction
      Chip Package Type

      DIP IC, PLCC
      Pin Count for Insertion

      14-16, 24-28
      Pin Count for Extraction

      8-24, 24-40
      Weight 0 lb (0 g)
      UPC # 811490010284
