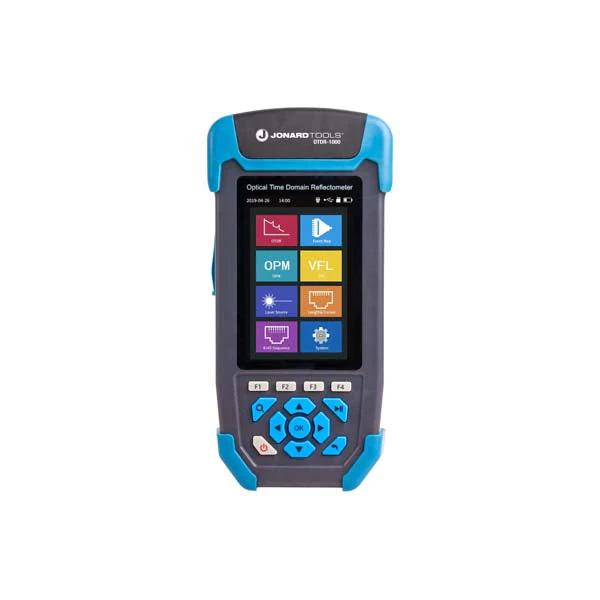

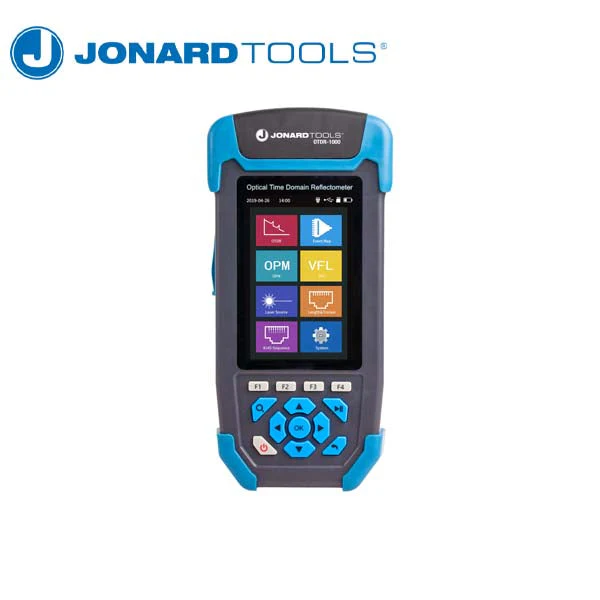

Jonard Tools’ Mini Pro OTDR is the perfect all-in-one handheld device for evaluating FTTx and access network construction and maintenance, identifying fiber breakpoints, measuring cable length, and calculating relative optical power losses. This Mini Pro OTDR also features the following:

• Includes 8 different functions for testing and evaluating fiber optic and network cables
• Bright 3.5” color LCD screen makes it quick and easy to evaluate data
• Rubberized hard plastic case is shock-proof and drop-proof for maximum durability
• 600 MB Internal storage with MicroSD/TF card slot for additional memory
• Built-in rechargeable lithium ion battery provides power on-the-go
• Can be charged or connected to a computer for data transfer via included micro-USB cable
• Includes FC, SC, and LC (PC/UPC) OTDR adapters for fiber optic cables, downloadable software (also featured in the download section of this product page), power cord with plug adapters, alcohol wipes, and instruction manual

0Table_1.jpg" >

Specifications

Wavelengths	1310nm/1550nm±20nm
Fiber Type	G.652 SingleMode Fiber
Dynamic Range	24dB/22dB
Event Blind Zone	3m
ATT Blind Zone	8m
Test Range	500m~60km
Pulse Width	3ns~10us
Range Accuracy	±（1m+Sampling Interval +0.005％×Test Distance）
Loss Accuracy	±0.2dB/dB
# of Sampling Points	16k~128k
Sampling Resolution	0.05m~8m
Reflection Accuracy	±3dB
Data Storage	Internal：≥600；External：TF Card
Laser Safety Level	>
File Format	SOR Standard File Format
Included Connectors for OTDR	FC, SC, LC (PC/UPC)
Dimensions	10.5" x 7.5" x 2.5" (26.67 cm x 19.05 cm x 6.35 cm)
Weight	2.06 lb (935.24 g)
UPC #	810053350669

Downloads:

• Spec Sheet
