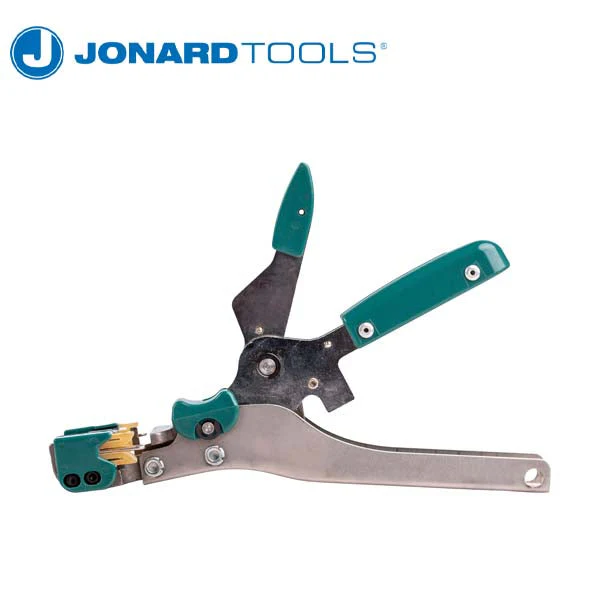

Jonard Tools - Picabond Crimping Tool

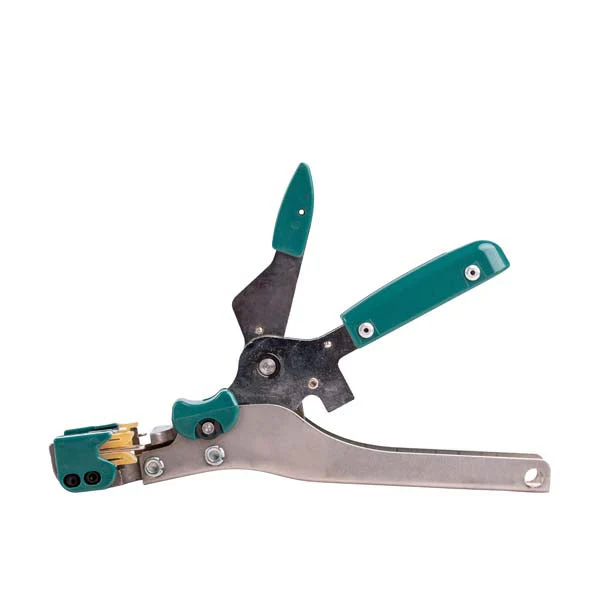

This VS-3 style hand tool is designed to crimp various AMP Picabond connectors onto 19 - 28 AWG wires. This crimper also features the following:
- Moveable anvil and two fixed dies crimp the connector perfectly every time
- Rubber wire supports hold wire in place while crimping
- Built-in wire cutter locates the connector on the anvil and cuts excess wire during crimping
- Unique moving handle pushes connectors into the crimping dies, ensuring highly uniform connections with every crimp
- Fixed handle provides additional support during crimping
- Compatible with AMP Picabond Connectors with the following stripe colors: Orange, Green, Purple, Green/Amber, Purple/Amber, Red, and Yellow
Specifications
| Connector Type |
AMP Picabond Connectors (Striped Connectors) |
|---|---|
| Compatible Stripe Colors |
Orange, Green, Purple, Green/Amber, Purple/Amber, Red, & Yellow |
| Wire Range |
28 AWG - 19 AWG |
| Tool Dimensions |
7.75" x 1.8" x 2.6" (19.7 cm x 4.6 cm x 6.6 cm) |
| Dimensions w/ Case |
10.5" x 7.5" x 2.5" (26.67 cm x 19.05 cm x 6.35 cm) |
| Dimensions | 10.5 in x 7.5 in x 2.5 in (26.67 cm x 19.05 cm x 6.35 cm) |
| Weight | 2.06 lb (935.24 g) |
| UPC # | 810053350652 |
