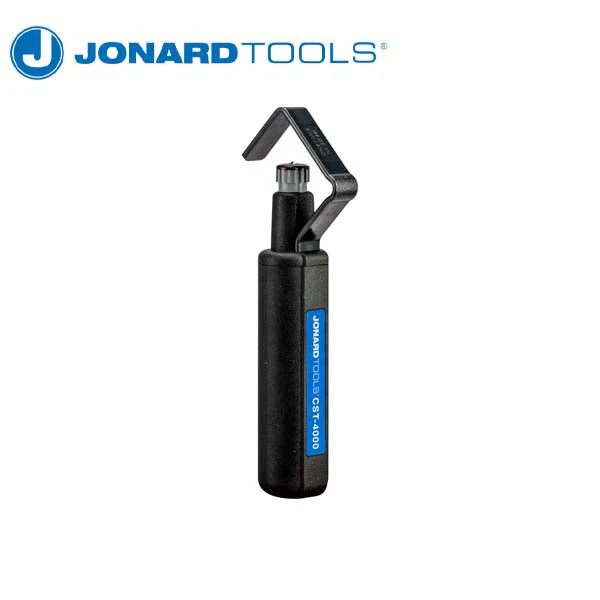

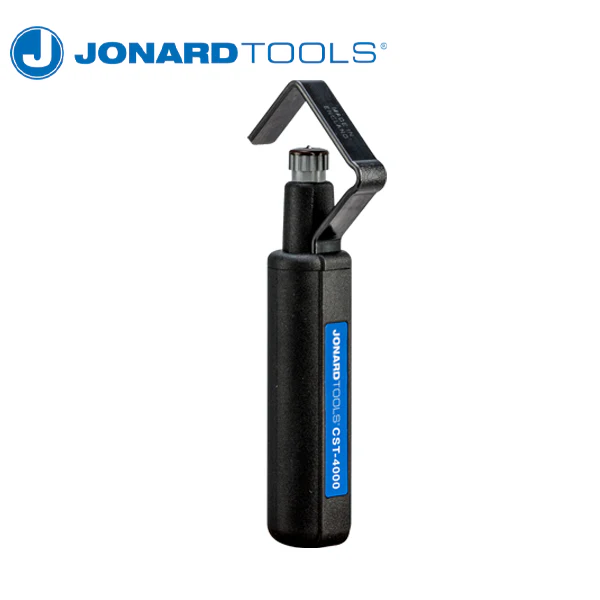

Jonard Tools - Round Cable Strip & Ring Tool for Large Cables
The big brother to our popular, the PATENTED CST-4000 Round Cable Strip & Ring Tool is designed for fast and precise removal of cable jackets from round cables that are 3/4” to 1 5/8” (19 mm to 40 mm) in diameter. This round cable stripper features the following:
- Patented stripping mechanism provides a "spiral stripping mode" to strip and remove tough insulations
- Can cut through a variety of jacket materials such as PVC, rubber, PE, and many more
- Triple action design as it can make longitudinal cuts for end stripping, spiral cuts for end and mid span stripping, and circular cuts for jacket removal
- Spring-loaded blade can be rotated 90 degrees for versatile slitting and can be adjusted for multiple round cable sizes from 3/4" to 1 5/8" (19 mm to 40 mm) in diameter
- Blade depth 0 mm-3 mm
- Replacement blade is available (part #: CST-7915)
Click Here for a full list of our 2021 Product Winners
Specifications
| Cut Type |
Slit, Ring |
|---|---|
| Cable Type |
Jacket, Round Distribution |
| Cable Diameter |
3/4"-1 5/8" (19 mm-40 mm) |
| Overall Length |
6.06” (154 mm) |
| Blade Depth |
0 mm-3 mm |
| Dimensions | 6.02 in x 2.17 in x 1.2 in (15.28 cm x 5.51 cm x 3.04 cm) |
| Weight | 0.23 lb (106.236 g) |
| UPC # | 811490018488 |
