KWS-156HFL/720HFL

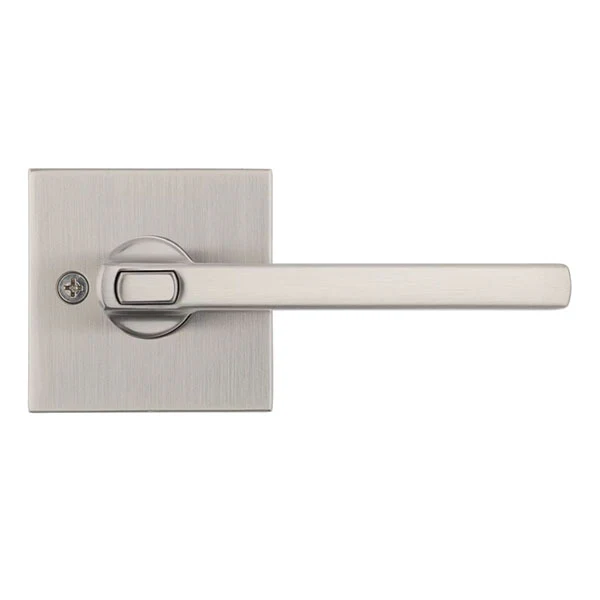

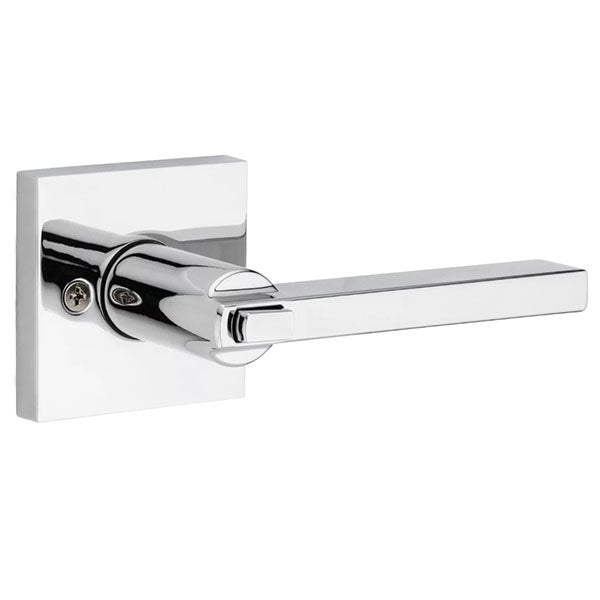

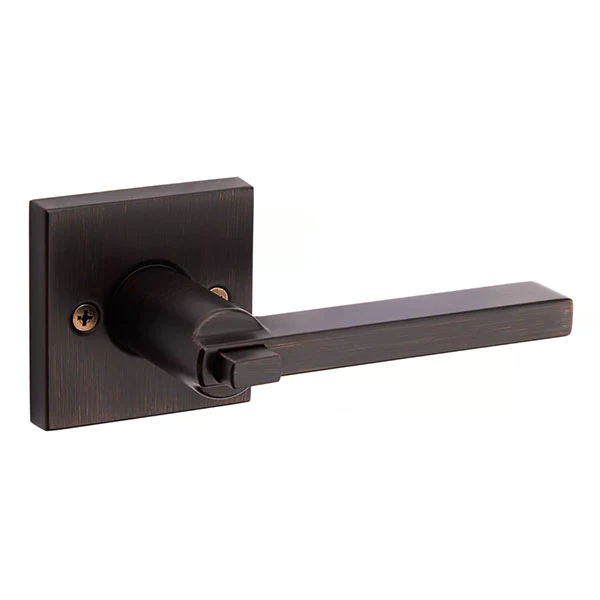

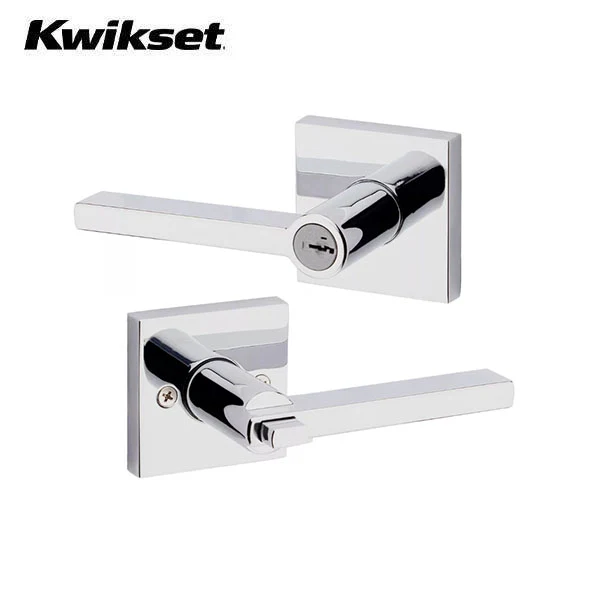

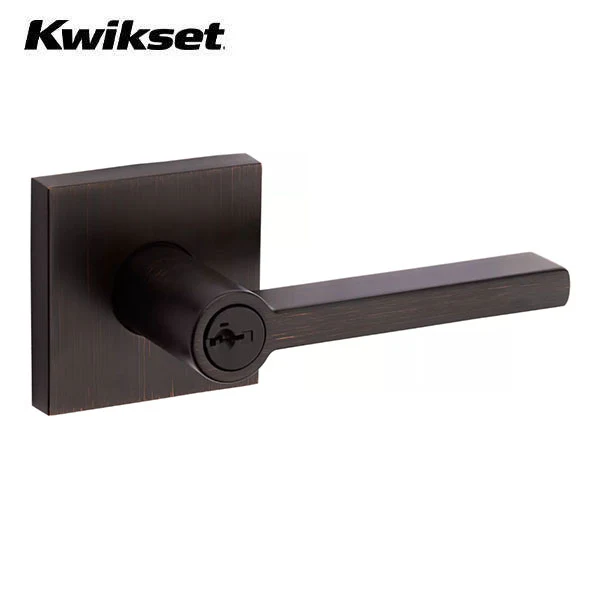

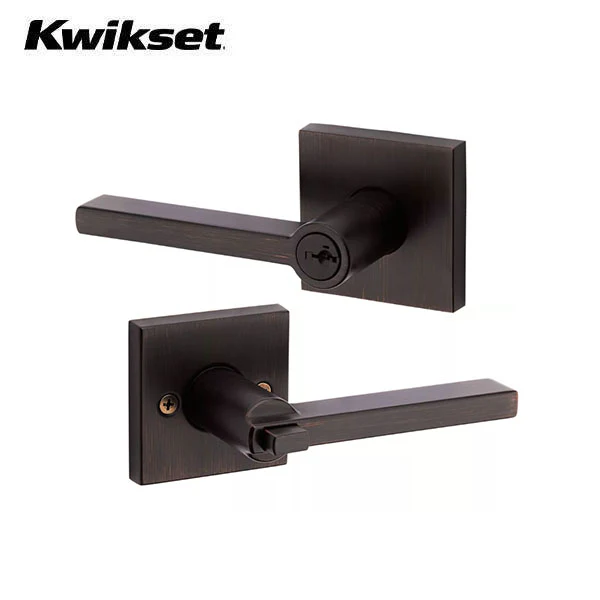

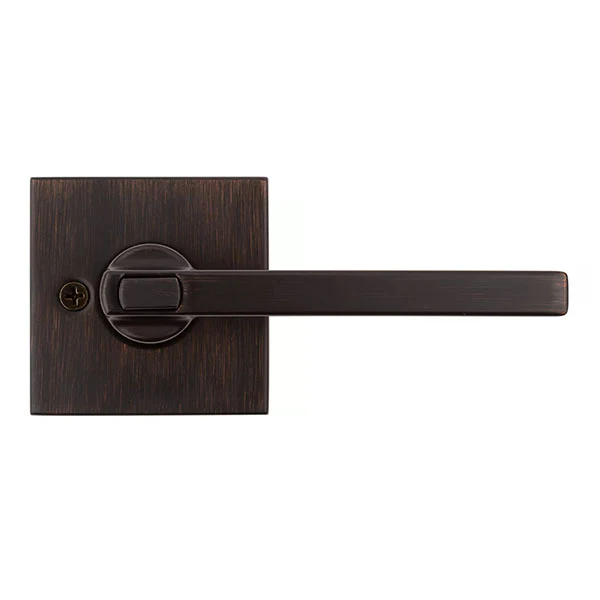

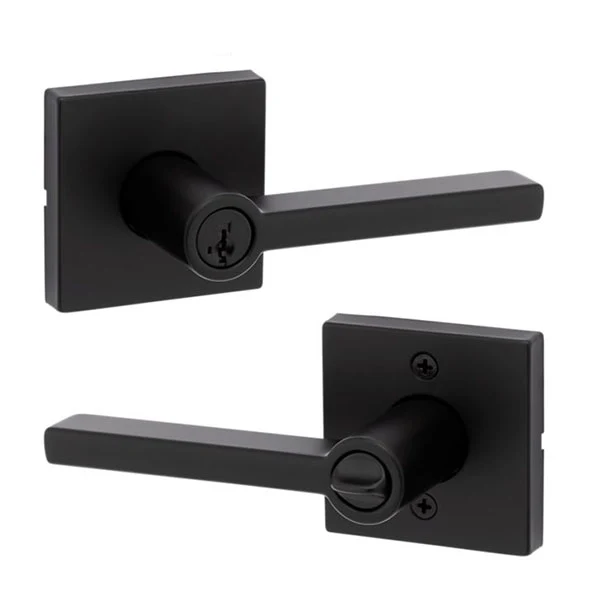

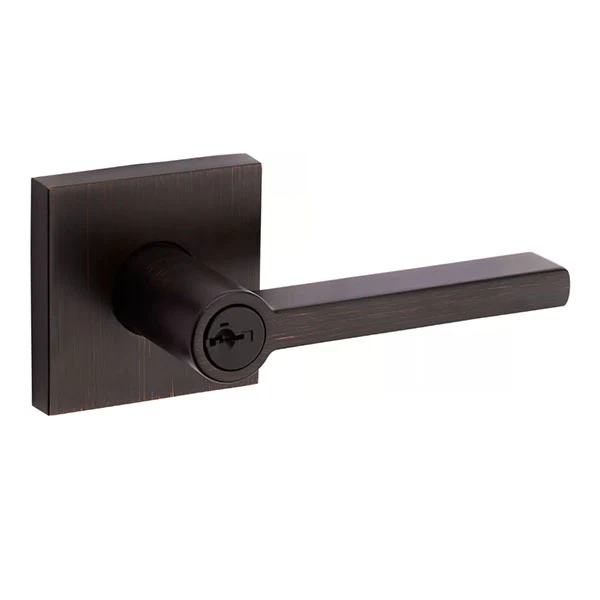

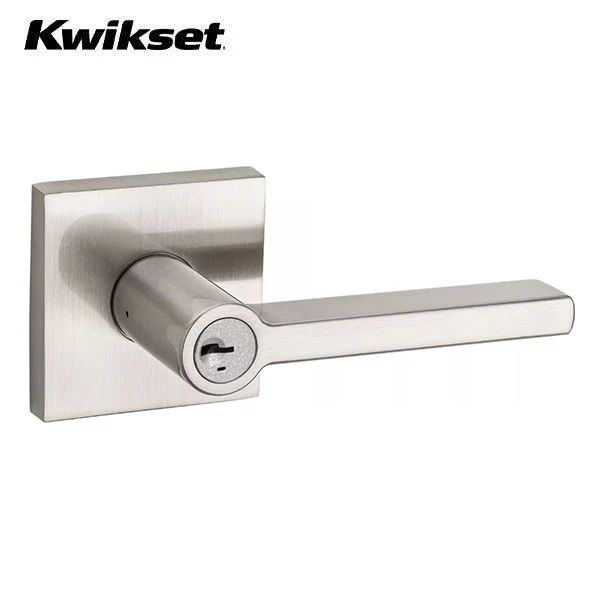

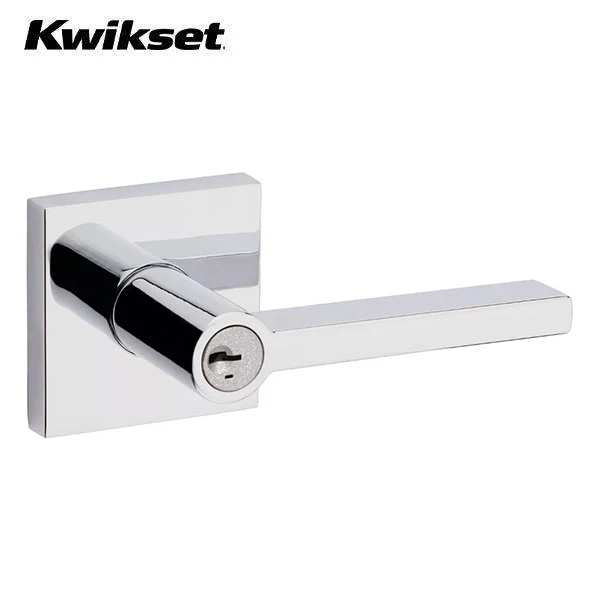

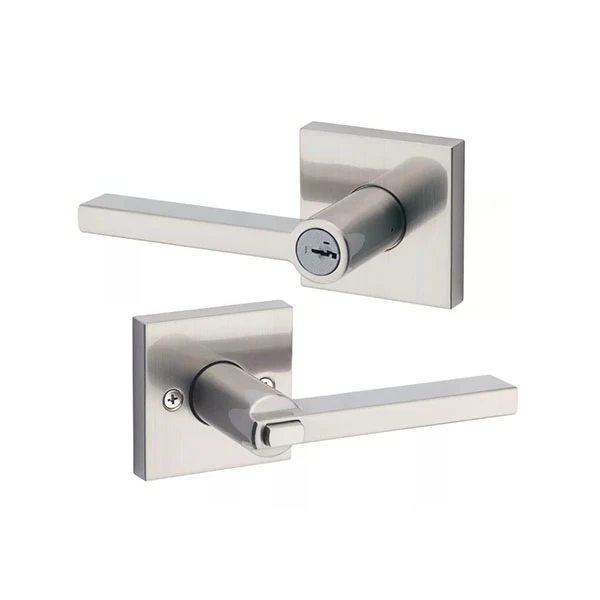

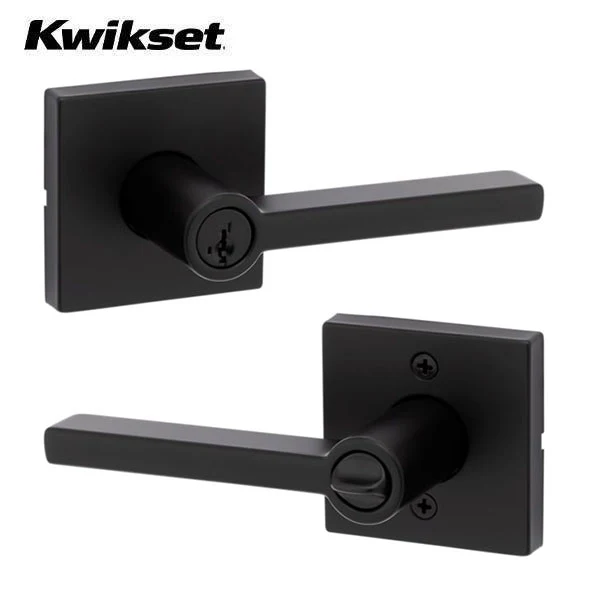

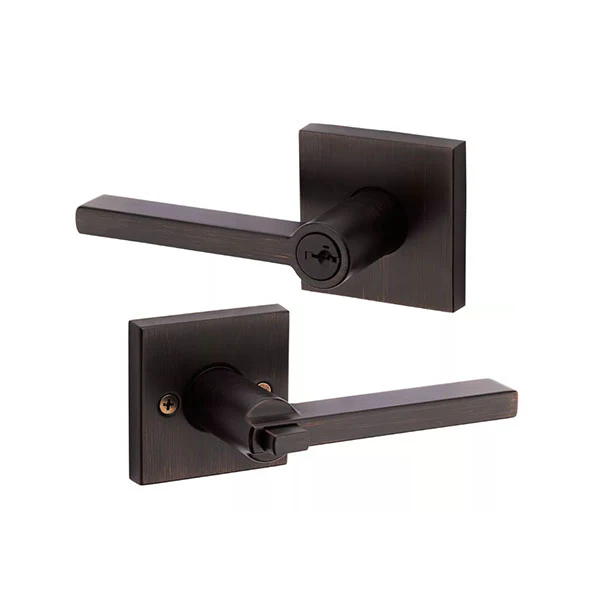

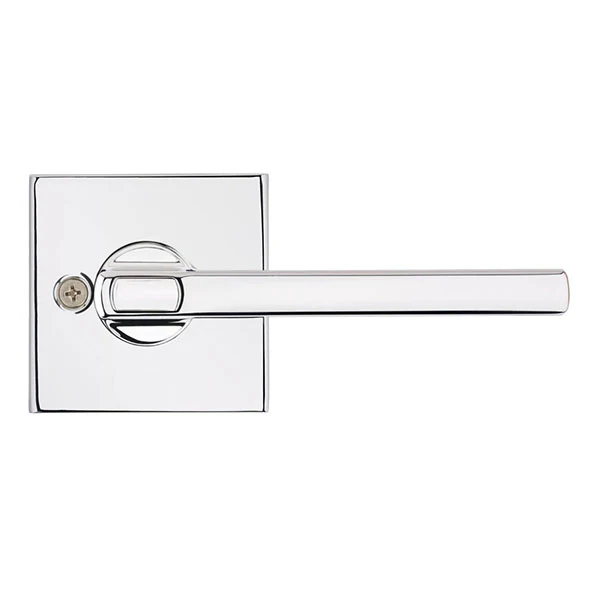

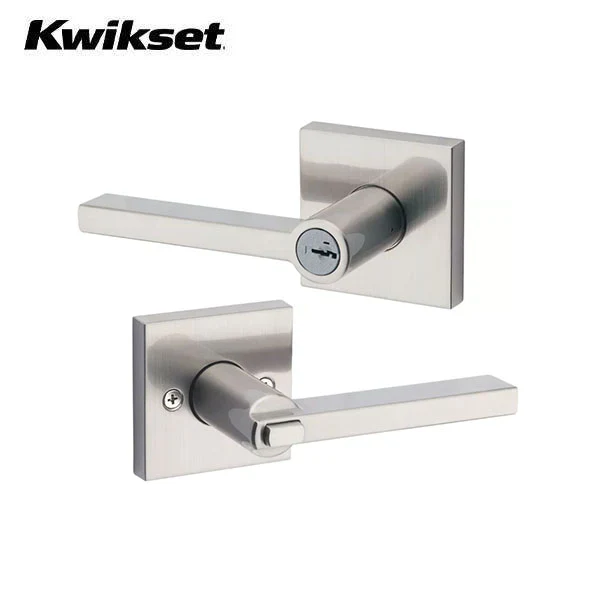

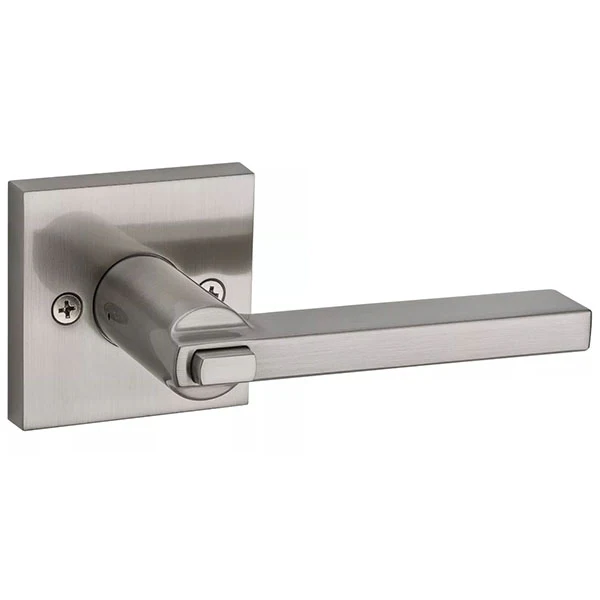

Step up to designer styles and superior security with Kwikset Signature Series products. Halifax combines sophistication and simplicity, making this design the ideal accent for a contemporary home. The passage lever is best used on interior hall and closet applications where no locking is required. The Keyed Entry Lever, both sides can be locked or unlocked by key outside or turn-button inside.

• Designer style and superior security with this Kwikset Signature series product
• Featuring SmartKey security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
• SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway
• Comes with 2 keys
• Latch has 2 interchangeable faceplates, round corner and square corner
• Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
• ANSI/BHMA grade 2 certified
• Latch has adjustable backset 2-3/8 in. to 2-3/4 in. to fit all standard door preparations
• Locking mechanism functions by pressing the push button on the interior of the lock
• Fully reversible lever, can be installed on both right handed and left handed doors
• Easily installs in minutes with just a screwdriver
• Lifetime mechanical and finish warranty



Specifications

Door Prep	Cross Bore 2-1/8" or 1 1/2". Edge Bore 1"
Backset	Adjustable 2 3/8" or 2 3/4"
Door Thickness	1 3/8" - 1 3/4" Doors standard
Cylinder	SmartKey Security
Faceplates	1" x 2 1/4" Specify round corner, square corner or drive-in
Strikes	1 1 /8" - 2 3/4" Square or round corner
ADA	Satisfy section 4.13.9 ADA requirement
UL	20 minute UL fire rating available
Door Handing	Reversible for right or left hand doors
ANSI/ BHMA	A156.2 Grade 2
Warranty	Lifetime Mechanical and Lifetime Finish
