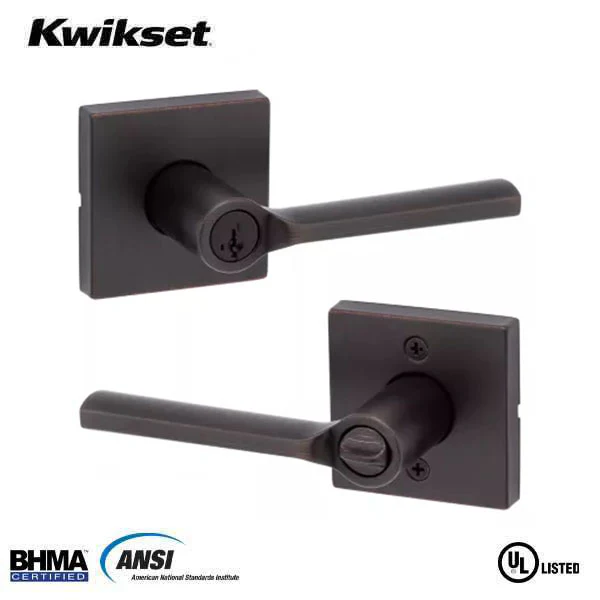

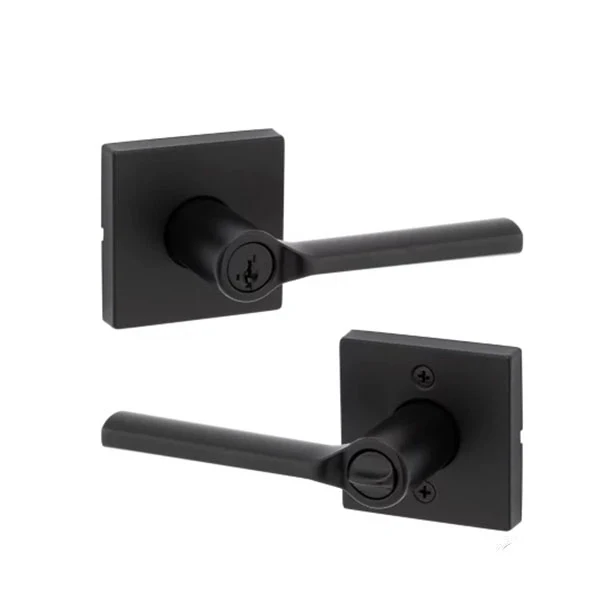

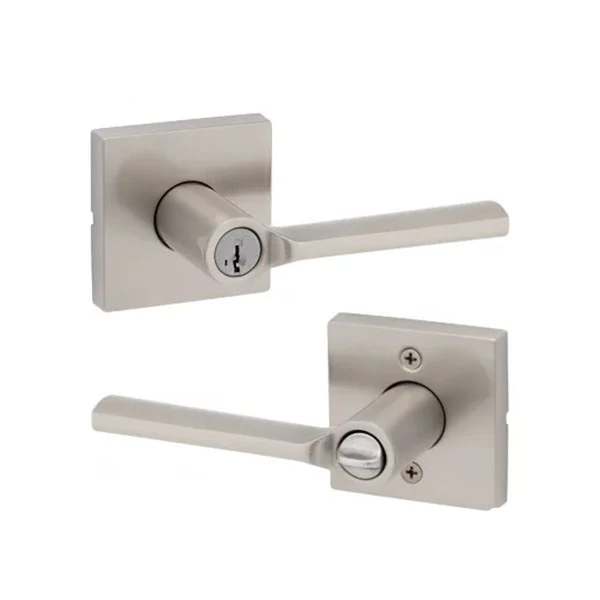

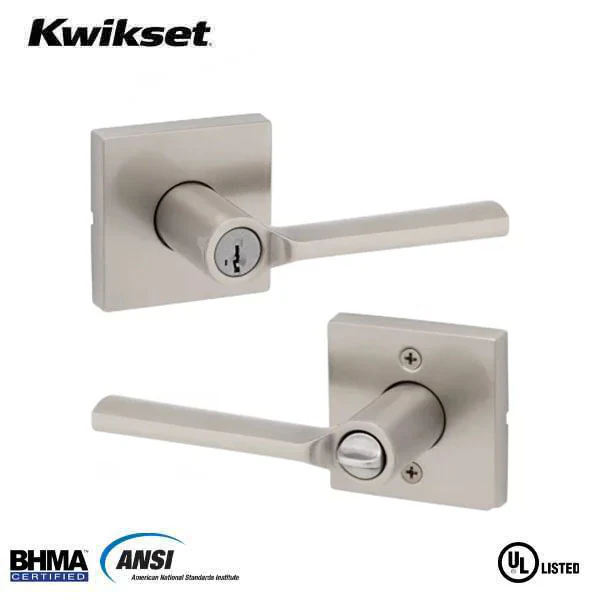

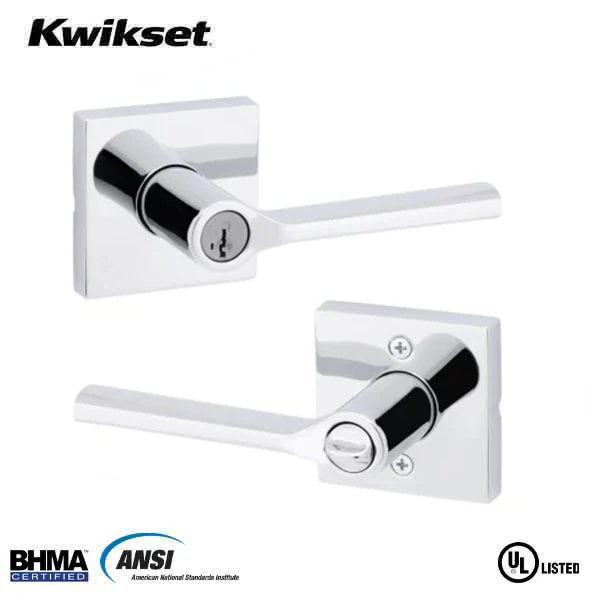

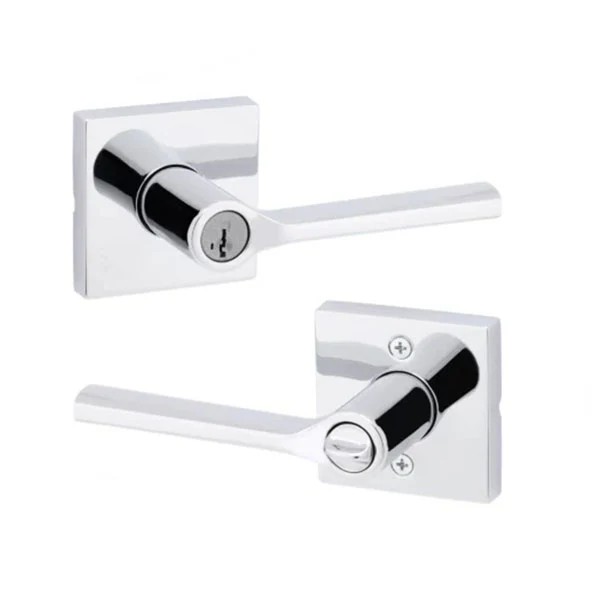

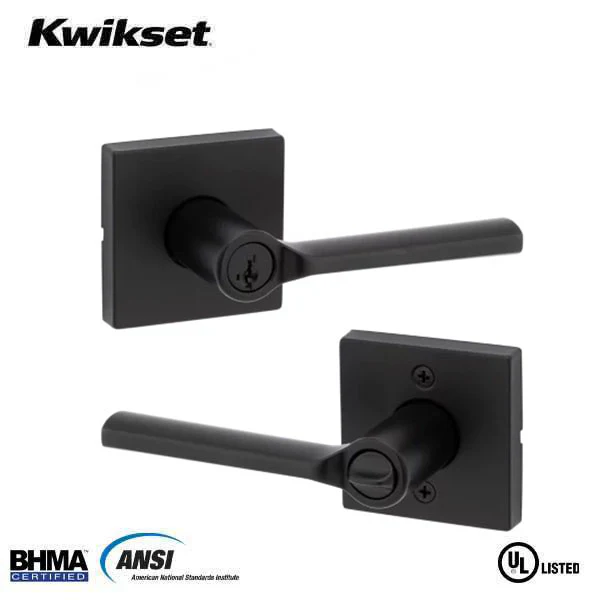

KWS-156LSL-SQT-SMT

The Lisbon Lever set combines sophistication and simplicity, making this design the ideal accent for a contemporary home. The Keyed Entry Lever, both sides can be locked or unlocked by key outside or turn-button inside.

• Designer style and superior security with this Kwikset signature series product
• For use on interior doors requiring no locking functionality, such as hallway or closet doors
• SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
• Comes with 2 keys
• 6-way adjustable latch, including round and square faceplates and drive in collar
• Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
• ANSI/BHMA grade 2 certified
• Includes adjustable backset to fit all standard door preparations
• Fully reversible lever, can be installed on both right-handed and left-handed doors
• Easily installs in minutes with just a screwdriver
• Lifetime mechanical and finish warranty



Specifications

Door Prep	2-1⁄8" Cross bore. 1" Edge bore. 1" x 2-1⁄4" Latch face
ANSI/BHMA	Grade 2 Certified
Cylinder	SmartKey Technology
Backset	Adjustable 2-3⁄8" or 2-3⁄4"
Door Thickness	1-3⁄8" - 1-3⁄4" Doors standard
Faceplate	1" x 2-1⁄4" Specify round corner, square corner or drive-in
Strikes	2-1⁄4" Full lip round corner strike Other options available
UL	Operational UL 1⁄3-hour fire rating for all functions
ADA	Functions 154, 155, 156 satisfy section 4.13.9 ADA requirement
Warranty	Lifetime Mechanical and Lifetime finish
