KWS-LSL-SQT

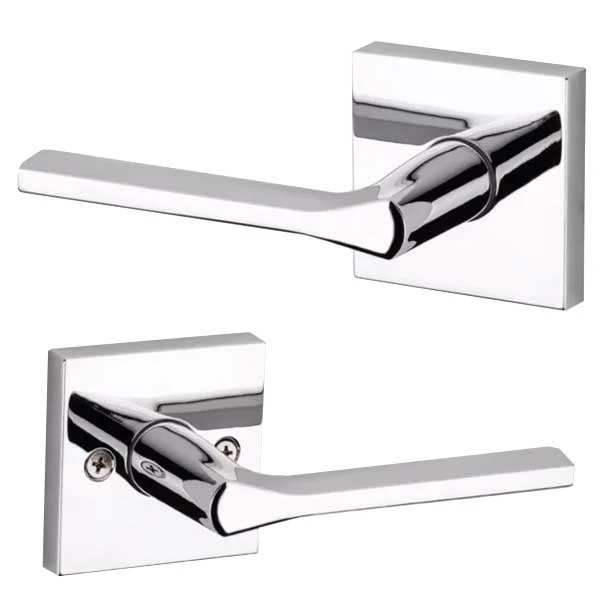

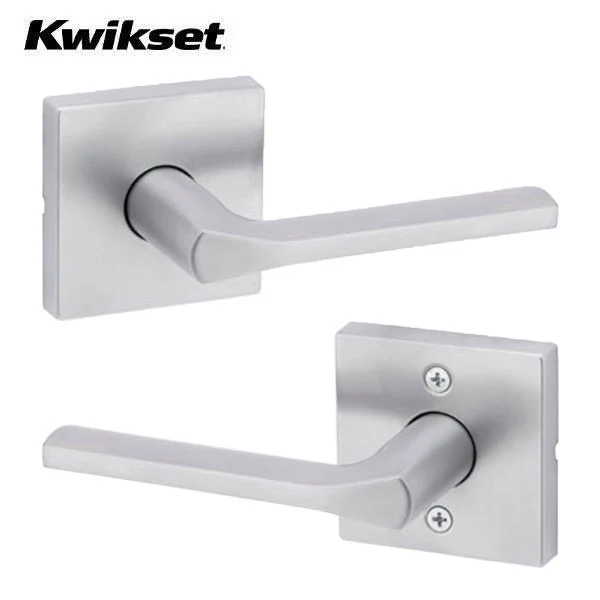

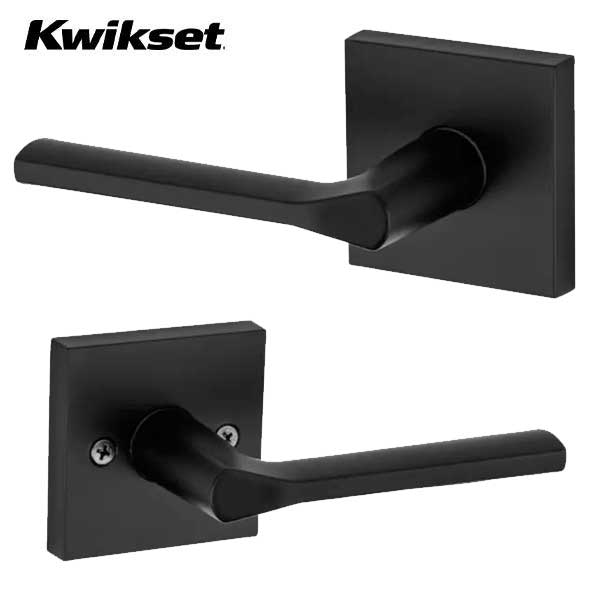

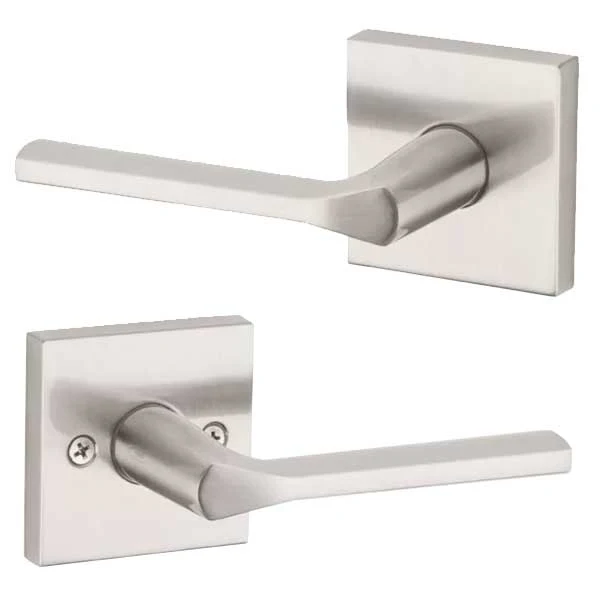

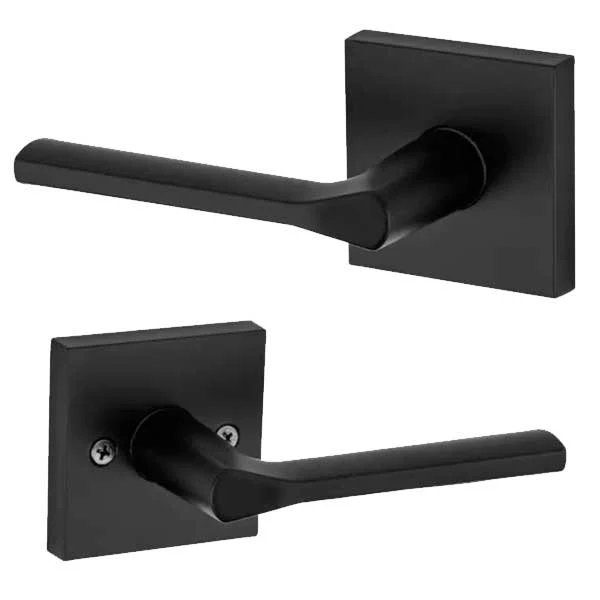

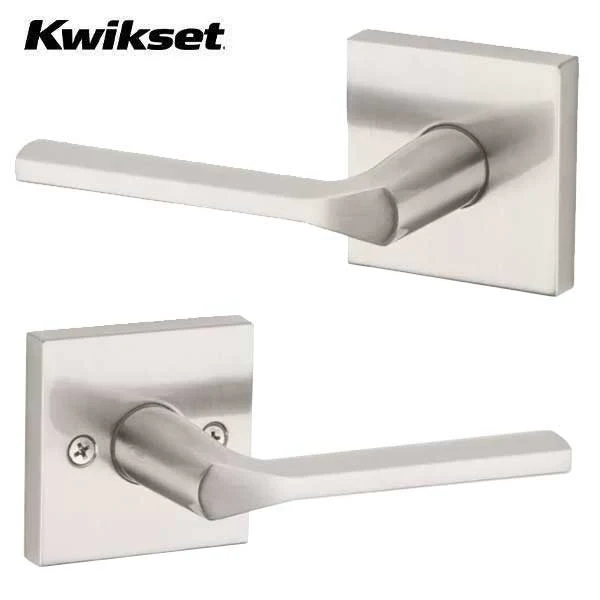

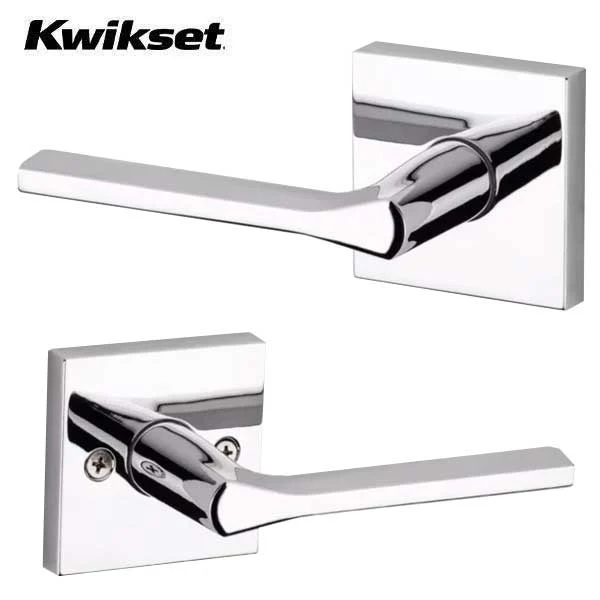

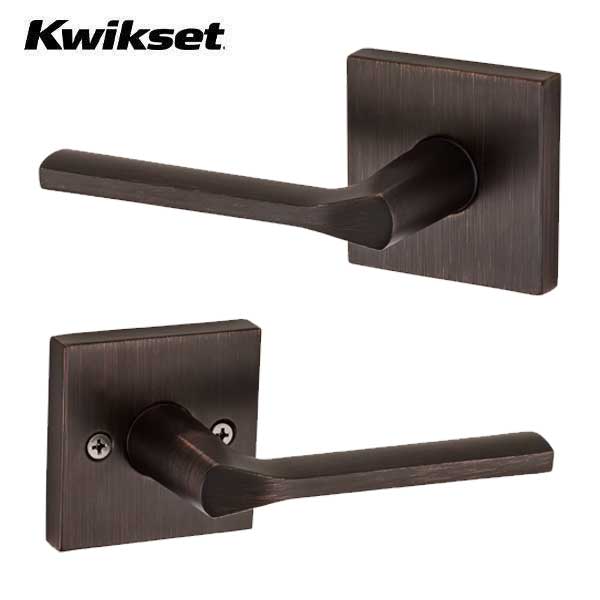

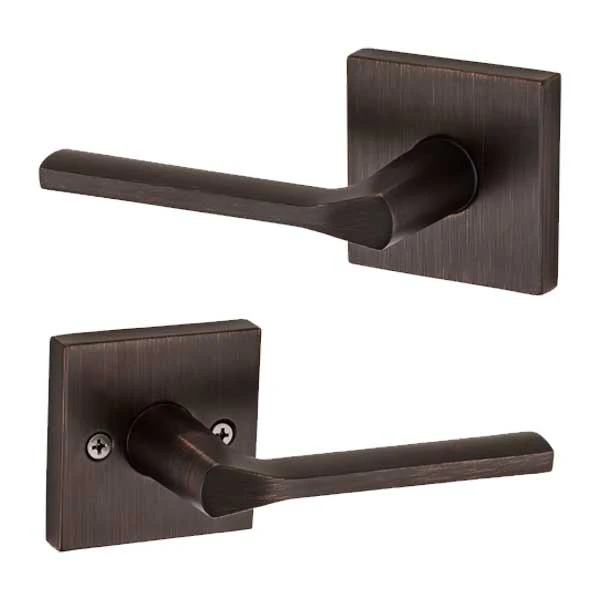

The Lisbon Lever set combines sophistication and simplicity, making this design the ideal accent for a contemporary home. This Passage knob/lever is best used on interior hall and closet applications where no locking is required. The Privacy lever is best used in interior bedroom and bathroom applications where privacy is required. The Keyed Entry Lever, both sides can be locked or unlocked by key outside or turn-button inside.

• Designer style and superior security with this Kwikset signature series product
• For use on interior doors requiring no locking functionality, such as hallway or closet doors
• 6-way adjustable latch, including round and square faceplates and drive in collar
• Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
• ANSI/BHMA grade 2 certified
• Includes adjustable backset to fit all standard door preparations
• Fully reversible lever, can be installed on both right-handed and left-handed doors
• Easily installs in minutes with just a screwdriver
• Lifetime mechanical and finish warranty



Specifications

Door Prep	2-1⁄8" Cross bore. 1" Edge bore. 1" x 2-1⁄4" Latch face
ANSI/BHMA	Grade 2 Certified
Backset	Adjustable 2-3⁄8" or 2-3⁄4"
Door Thickness	1-3⁄8" - 1-3⁄4" Doors standard
Faceplate	1" x 2-1⁄4" Specify round corner, square corner or drive-in
Strikes	2-1⁄4" Full lip round corner strike Other options available
UL	Operational UL 1⁄3-hour fire rating for all functions
ADA	Functions 154, 155, 156 satisfy section 4.13.9 ADA requirement
Warranty	Lifetime Mechanical and Lifetime finish
