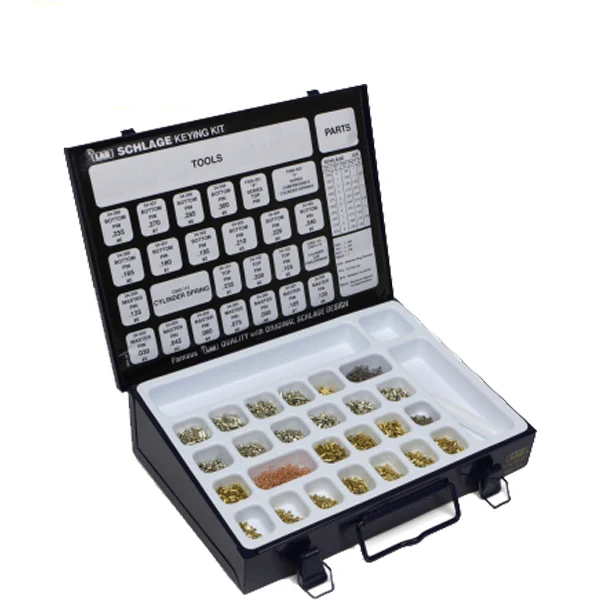

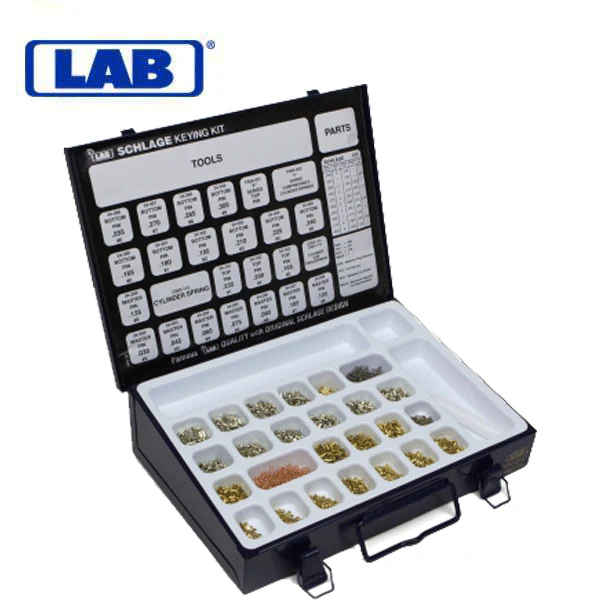

LAB - SPK115 - Metal Wedge - Schlage - Rekeying Kit
- Part Number: SPK115
- New Wedge Box Design with Added Components!
- Constructed of Heavy-Duty Steel with a HARDCOAT finish.
- Leakproof Seal-Tight Cover.
- 10 Nickel-Silver Bottom Pins #0-9
- 8 Brass Master Pins #2-9
- 3 Brass Top Pins #1-3
- Cylinder Cap Pins & Cap Pin Springs
- Cylinder Springs (C503-113)
- New LAB T Pins “F” Series Top Pins (F506-451)
- New “F” Series Compressible Cylinder Springs (F506-453)
- Now Includes LAB LFT000 Plug Follower for Schlage Cylinders.
- New Layout Chart includes Bitting Information.
- Dimensions:11-13/16″ x 8-3/4″ x 3-1/2″
- View Contents Item ID Listing
| LAB SCHLAGE BOTTOM PIN | (34-300) 0B-.165 |
| LAB SCHLAGE BOTTOM PIN | (34-301) 1B-.180 |
| LAB SCHLAGE BOTTOM PIN | (34-302) 2B-.195 |
| LAB SCHLAGE BOTTOM PIN | (34-303) 3B-.210 |
| LAB SCHLAGE BOTTOM PIN | (34-304) 4B-.225 |
| LAB SCHLAGE BOTTOM PIN | (34-305) 5B-.240 |
| LAB SCHLAGE BOTTOM PIN | (34-306) 6B-.255 |
| LAB SCHLAGE BOTTOM PIN | (34-307) 7B-.270 |
| LAB SCHLAGE BOTTOM PIN | (34-308) 8B-.285 |
| LAB SCHLAGE BOTTOM PIN | (34-309) 9B-.300 |
| LAB Schlage Master Pin | (34-202) 2M-.030 |
| LAB Schlage Master Pin | (34-203) 3M-.045 |
| LAB Schlage Master Pin | (34-204) 4M-.060 |
| LAB Schlage Master Pin | (34-205) 5M-.075 |
| LAB Schlage Master Pin | (34-206) 6M-.090 |
| LAB Schlage Master Pin | (34-207) 7M-.105 |
| LAB Schlage Master Pin | (34-208) 8M-.120 |
| LAB Schlage Master Pin | (34-209) 9M-.135 |
| LAB SCHLAGE TOP/DRIVER PIN | (34-101) 1T-.235 |
| LAB SCHLAGE TOP/DRIVER PIN | (34-102) 2T-.200 |
| LAB SCHLAGE TOP/DRIVER PIN | (34-103) 3T-.165 |
| LAB SPRINGS SCHLAGE CYLINDER CAP SPRING | .074 C503-115 |
| LAB Springs Schlage F506-453 F Series | Compressible Cylinder |
| SCHLAGE | (.170STP) F506-451 T Top Pin |
| Schlage Cylinder Cap Pin | (C503-116) |
Note: Buyer assumes responsibility for Loss or Damage by the transport
company. Claims for shortages or damage caused by the carrier must be filed by the Customer directly to the Carrier.
$126.97
