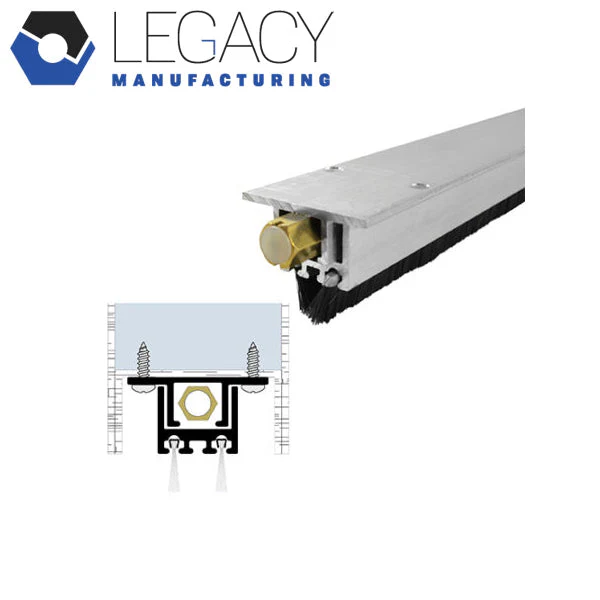

Legacy Manufacturing - 72553 - Concealed Automatic Door Bottom - 1-3/8" x 3/4" - Mill Aluminum - Optional Length

Product image 1
1 / 2

Legacy Manufacturing - 72553 - Concealed Automatic Door Bottom - 1-3/8" x 3/4" - Mill Aluminum - Optional Length

COMPETITOR EQUIVALENT


LEGACY NGP PEMKO ZERO
72553 – – 3552A
    FINISHES
    • MA – Mill Aluminum
    options
    • EA – Electrical Actuator
    • FL – Fire Label
    • LS – Light Spring
    • LIG – Ligature Resistant
    • PV – Pivot Doors
    • SF – Security Fasteners
    • SL – Sliding Doors
    • TD – Top Door Installation
    FEATURES
    • Can be made any size from 12" to 144".
    • Designed to drop like a scissor, hinge side first then self-leveling to compensate for uneven floors.
    • 5 million cycles tested.



    MATERIALS / SPECIFICATIONS
    • Solid Rubber Extrusion is Black.
    • Screws are standard (#6 x 1/2" SMS self-drilling screws) supplied
    • Brass Hex Nut
    • For use on 1-3/4" and larger Hollow Metal doors
    • Adjusting the brass nut changes pressure on concealed internal spring to satisfy field conditions.
    • Self-leveling door seal up to maximum 1/2" drop.
    • Replacement Nylon Brush – Part #4075NB
    • No end caps provided

    Downloads:

    Select Length
    Select Option
    From $27.80

    Original: $79.43

    -65%
    Legacy Manufacturing - 72553 - Concealed Automatic Door Bottom - 1-3/8" x 3/4" - Mill Aluminum - Optional Length—

    $79.43

    $27.80
