LK-2985-DC

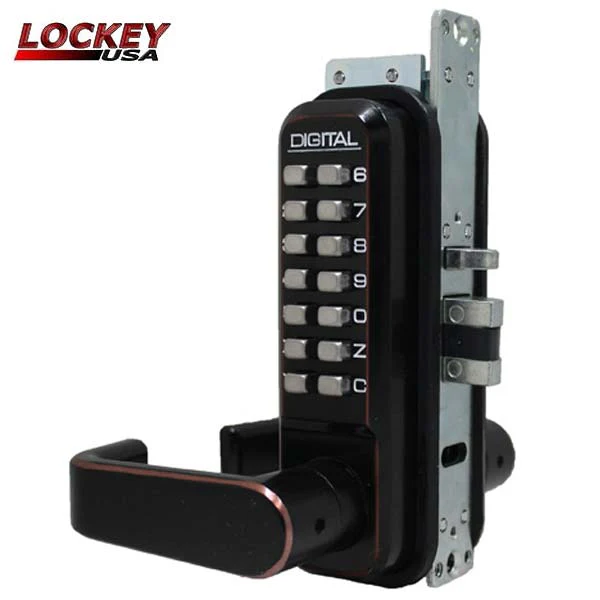

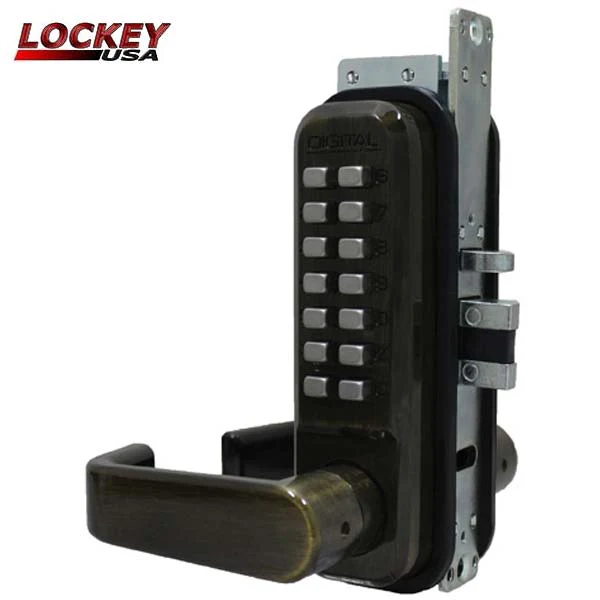

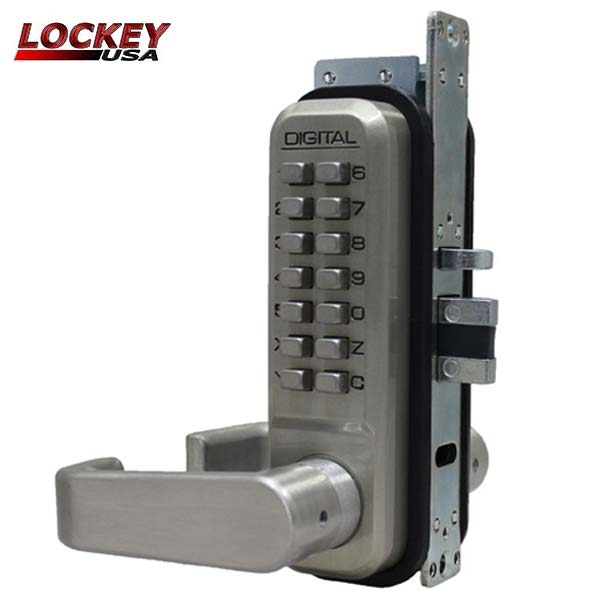

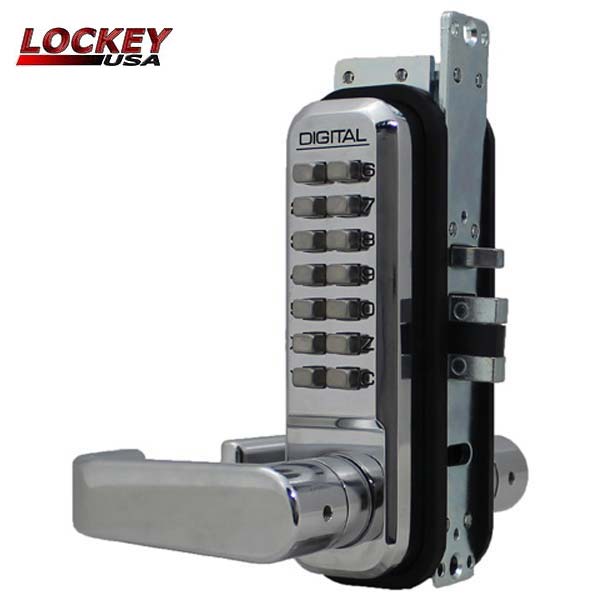

This is a Lockey 2985 Mechanical Keyless Narrow Stile Lever Lock with Double Combination and Passage Function.

Features

• Keypad on both sides
• Mechanical, keyless, narrow stile lever handle lock
• Locks automatically (with passage function)
• Replaces Adams-Rite style lock
• One user code with thousands of possible combinations
• Lever on exterior and interior
• Changeable handing
• 1 1/8” backset
• Ideal for aluminum storefront doors



Specifications

DIMENSIONS	6 1/4” L x 1 3/4” W x 2 1/4” D
FINISHES AVAILABLE	Antique Brass, Bright Brass, Bright Chrome, Jet Black, Marine Grade, Oil Rubbed Bronze, Satin Chrome, Satin Nickel, White
DOOR THICKNESS	1 3/16” to 2”, up to 5” with Extension Kit (Sold Separately)
BACKSET	1 1/8"
TOTAL COVERAGE WITH TRIM PLATES	6 3/4” L x 2 1/4” W x 2 1/8” D
MATERIAL	Zinc-plated Steel with Teflon coated stainless steel interior components
APPLICATION	Exterior & Interior Use Weather Resistant
WARRANTY	Lifetime Mechanical

Compatible With (Sold Separately)

• GB900 Gate Box
• GB2900 LINX Gate Box for Chain Link
• Key Override System
• Extension Kit
• Narrow Stile Mounting Tabs
