TB100

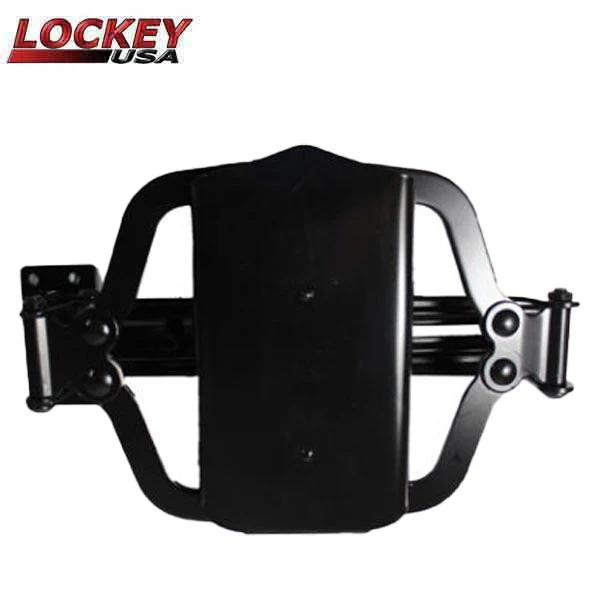

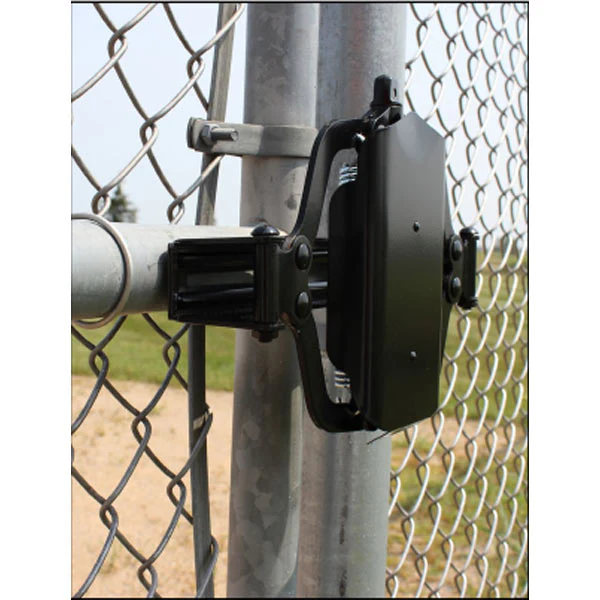

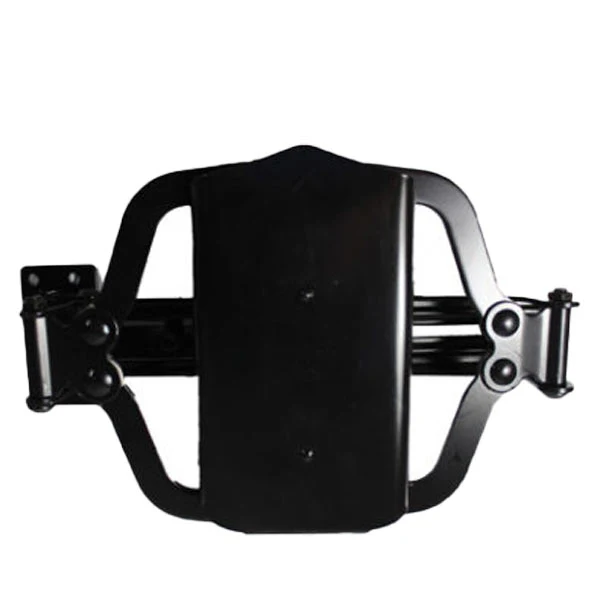

The LockeyUSA Turtle Back TB100 Hydraulic Gate closer must mount on the hinge side/pull side of the gate in order to push the gate closed. The TB100 works best if the gate has in-line/flush hinges flush with the gate post with 1″ or less gap.

Features

• Gently closes both small and large gates up to 125lbs.
• Pushes gate closed
• Adjustable closing speed
• Can be installed on top, bottom or middle of gate
• Recommended for pool, garden and barrier gates
• Can be used on lightweight (non fire-rated) doors
• Works best on gates with in-line/flush hinges
• To retain product warranty & restrict gate opening angle, a gate stop must be installed
• Compatible with GS90 & GS-LINX Gate Stops




Specifications

Dimensions:	7 1/2" L x 13"W x 2 1/2" D
Mounting Bracket Dimensions:	3 1/4" x 1 3/4"
Max Gate Weight:	125lbs.
Max Gate Width:	54"
Max Opening Angle:	90 degrees
Min. Operating Temp.	10 degrees
Max Operating Temp:	110 degrees
Gate Material:	Vinyl, Wood, Steel, Chain-Link
Closing/Latching Method:	Hydraulic
Material:	Steel
Finish	Powder-Coated Black
Hinge-Arrangements:	In-line/flush hinges
Opening Pressure:	Dependent on gate size
