Lockly Secure Lux Mortise Edition – 5-in-1 Smart Lock

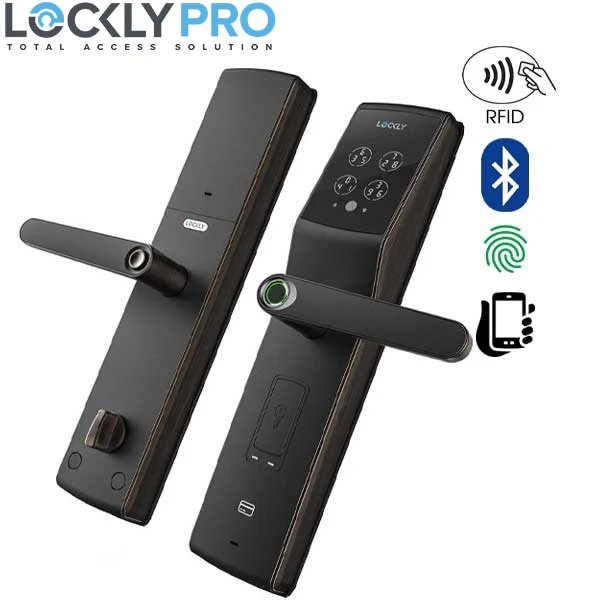

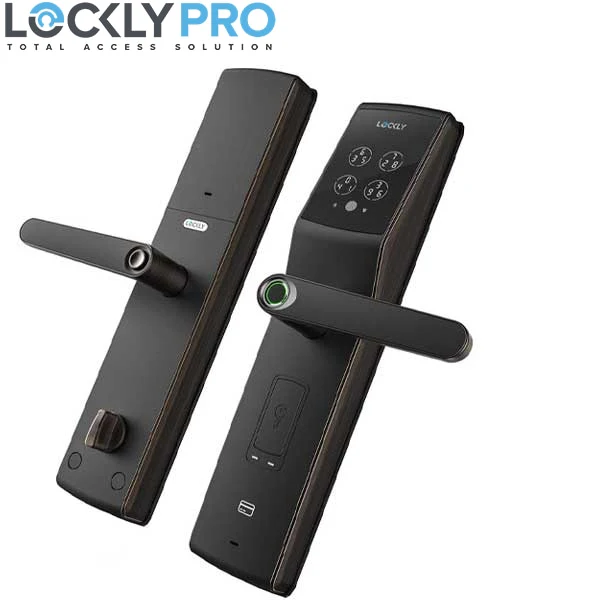

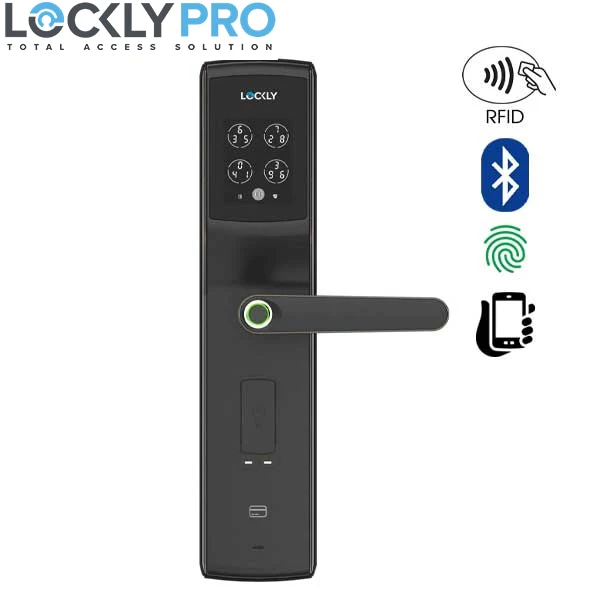

Experience advanced security with the Lockly Secure Lux Mortise Edition, featuring 5-in-1 access: 3D fingerprint, RFID, Bluetooth mobile app, hack-proof digital keypad, and backup mechanical key. Perfect for front doors, urban families, or deluxe apartments, this sleek design lock combines style with robust security.

Features:

• AI Biometric Fingerprint: Instant fingerprint recognition, improving accuracy over time; stores up to 99 fingerprints.
• Hack-Proof Touchscreen: PIN Genie® digital keypad prevents password guessing with shuffling numbers.
• MIFARE RFID: Fast and easy access via RFID cards, fobs, or tags; logs monitored via Lockly app.
• App Control: Unlock, monitor, and check history logs remotely; grant access via eKeys or eBadges.
• Auto Locking: Programmable auto-locking ensures your door is always secured.
• Offline Access Codes: Grant access without an internet connection.
• Remote Monitoring & Voice Control: Works with Alexa or Google Assistant (Wi-Fi hub sold separately).
• Mechanical Keys: Includes two backup keys for enhanced security.
• Best-in-Class Support: 5-year mechanical & finish, 2-year electronics warranty, and 24/7 support.

What's Included:

• Secure Lux Mortise Edition
• Quick Start Guide
• Installation Guide
• User Manual
• AA Alkaline Batteries x 4
• Drilling Template
• Activation Card
• RFID Key Tag x 3
• Physical Key x 2
• Mortise Lockset
• Fixing Screws
• Mounting Plate
• Strike Plate & Dust Box

Electronic Specifications:

Access Codes	Stores up to 33 PIN access codes
RFID/Fob Key Access	Stores up to 99 MIFARE RFID/fobs
Fingerprint Access	Stores up to 99 biometric fingerprints
Remote Temporary Access	Unlimited Offline Access Codes/eBadges
Access Logs	Unlimited, accessible via Lockly App or Lockly OS
Communication Standards	BLE 4.2, Wi-Fi 2.4GHz, RF433.92MHz, AES 256-bit encryption
Battery Life	Up to 1 year (offline mode) or 10 months (regular app use)
Operating Temperature	-4°F to 151°F (-20°C to 66°C)
Operating Humidity	0 - 100% non-condensing

Credential Specifications:

Technology	RFID (13.56 MHz), BLE (2.4 GHz), Wi-Fi (2.4 GHz), Capacitive Sensor
Maximum Read Range	RFID: 0.79", BLE: 98' (30m), Wi-Fi: 197' (60m)
Mobile Compatibility	Lockly App BLE 4.2, Lockly OS, Matter

Mechanical Specifications:

Material	Premium Zinc Alloy chassis & escutcheon
Door Thickness	1 ⅗″ - 4 ¾″ (40 – 120mm)
Backset	5¾″ (70mm)
Deadbolt/Latch	3 x ¾″ (20mm) Deadbolt Throw, 1 x ½” (13mm) Latch Throw
Strike Plate	9.5″ x 1″ (240 x 24mm), Dust Box Included
Physical Keys	Laser cut keys compatible, 5 pcs included

Certifications & Warranty:

Certification	RoHS, FC, ADA Compliant
Warranty	Lifetime 24/7 support, 5-year mechanical & finish, 2-year electronics

Downloads:

• Spec Sheet
• Lockly iPhone App / Android App
• User Manual
• Installation Guide
• Installation Template

Return Policy:

Unsealed products cannot be returned. For defective items, contact Lockly at 669-500-8835 or visit the support page. Once you have a ticket, contact UHS Hardware for the return process.

Installation Video:
