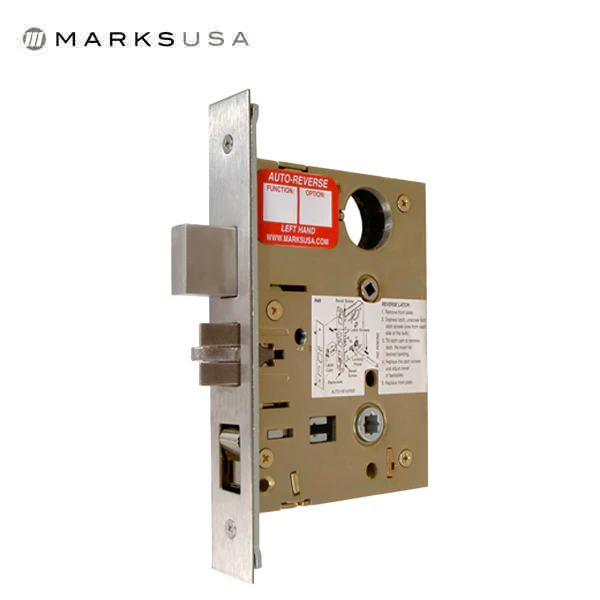

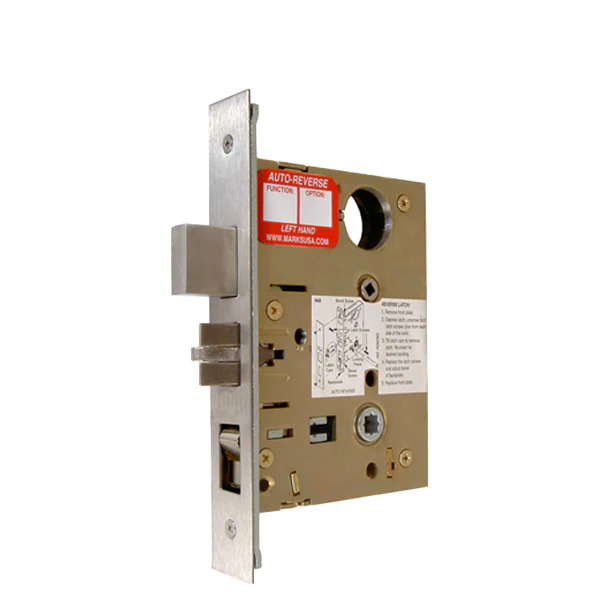

Marks USA announces its new AUTO-REVERSE (patent pending) 5 Series Mortise Lock. AUTO-REVERSE enables the lock handing to be reversed without removing the lock cover. The simplicity of the procedure allows reversal without ever exposing the internal components.

AUTO-REVERSE 5 Series Locksets are UL Listed, BHMA/ANSI certified to Grade 1, and are backed by Marks USA’s limited LIFETIME MECHANICAL WARRANTY.

Locksets are available in over 40 functions, all with thru-bolted trims for automatic trim-lock alignment.

Lever trims and lock bodies include independent support springs and self-adjusting spindles.

Marks USA offers a wide variety of both standard and custom trims with knobs, levers, rosettes, and escutcheon plates, allowing them to accommodate even the most challenging customers' needs.

Specifications:

Function	Apartment
Backset	2-3/4"
Bolt Throw	Stainless Steel full 1" throw
Latch Throw	3/4" (anti-friction)
Rose / Escutcheon Style	Escutcheon
Rose / Escutcheon Size	10-1/2" x 2-3/4"
Cylinder Type	6-Pin Cylinder
Keyway	Marks C
Knob / Lever Design	American
Auxiliary Latch	1/2" Throw
Handing	Field Reversible
Knob/Lever Style	Lever
Case	Stamped steel .090 thick
Front	1-1/4" x 8", Adjustable bevel
Hubs	Steel, 9/32" on diamond 5/16" on square w/security separator
