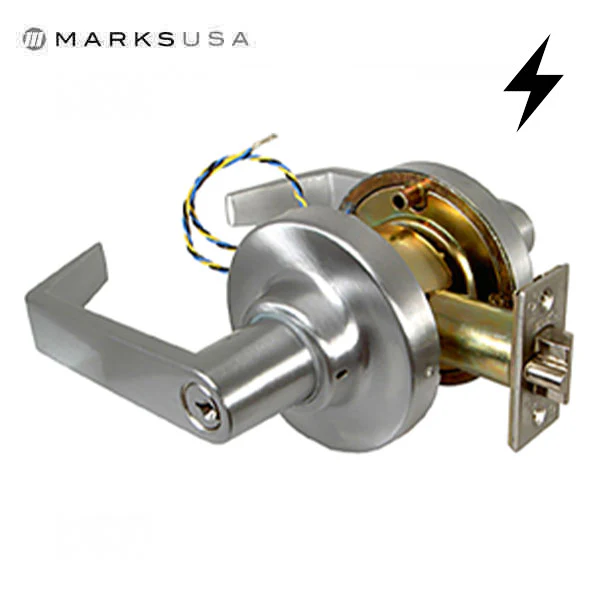

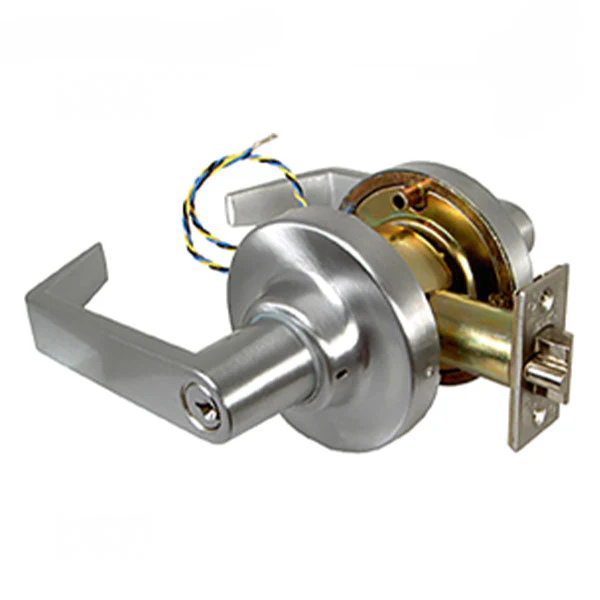

Marks USA - 195FEU - Electrified Commercial Lever Set - 2 3/4" Backset - 26D - 24VAC/DC - Fail Secure - Grade 1
Marks USA - 195FEU - Electrified Commercial Lever Set - 2 3/4" Backset - 26D - 24VAC/DC - Fail Secure - Grade 1
Our Grade 1 Electrified Survivor Series locksets featuring “The Clutch” are available for operation as either electrically locked (Fail Safe) or unlocked (Fail Secure). When locked, the Survivor’s clutch disengages the outside lever allowing it to turn freely without opening the latch.
More Details Below
| Lock Function |
FEU - Fail Secure - Electronically Unlocked Locks upon power loss |
| Handing | Non-Handed |
| Door Thickness | 1-5/8” - 1-7/8” |
| Backset | 2-3/4″ standard, |
| Latch |
#1834, Front: 1-1/8” x 2-1/4”; Throw: 9/16”; Stainless steel nose |
| Levers | Solid cast Zamac; w/ 1/2” return |
| Roses | Thru-bolted, 3-7/16” dia., spring loaded 2-#10 thru-bolts |
| Strike | #1135, 4-7/8” ASA curved lip strike |
| Cylinder | MARKS “C” keyway, 6 pin w/ 2 keys |
| Electrified functions | 100% duty cycle, 24V/AC supplied with bridge rectifier; 24V/DC .21 Amps |
| Finish | 626 - 26D - Satin Chrome |
| Certifications |
ANSI/BHMA Meets or exceeds Series Grade 1 requirements UL Listed 3-hour fire rating ADA Meet Requirements of The Americans with Disabilities Act |
| Manufacturer Warranty | Marks lifetime mechanical warranty |
Lock Function
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Marks USA directly at 1-800-645-9445 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
