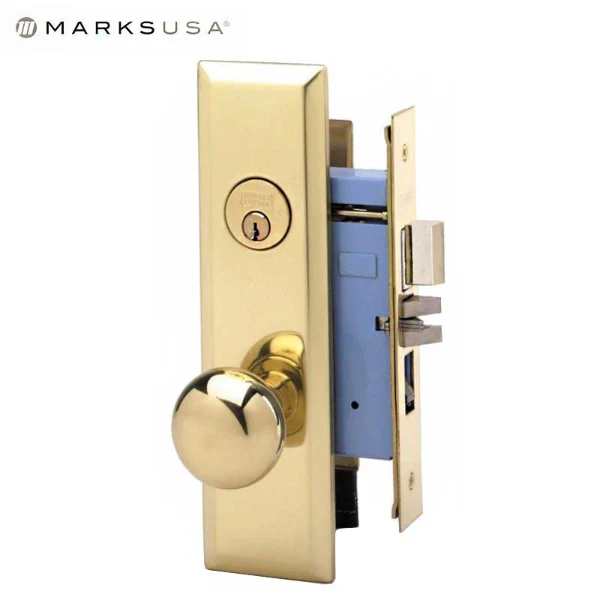

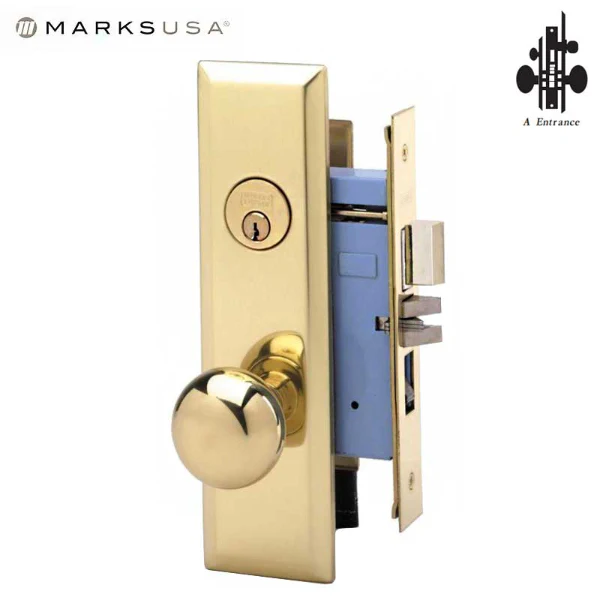

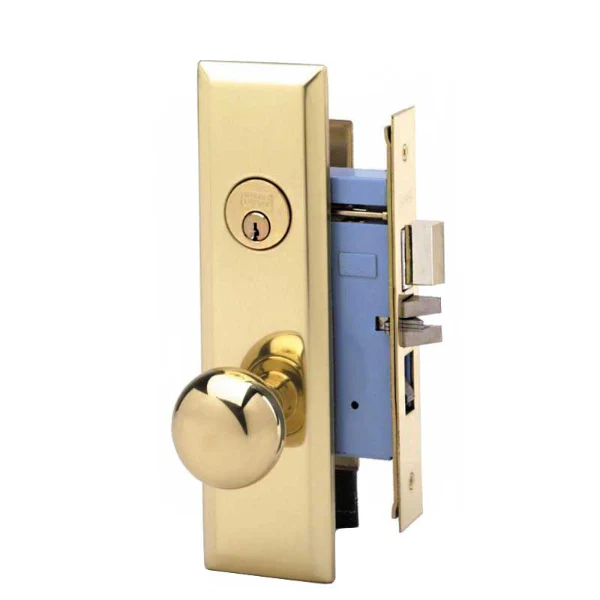

Combine security with style with the Marks New York 7 Series Mortise Locks. Perfect for apartments and residential buildings.

• Polished Brass

• Solid Brass plates
• Left Hand Mortise Lockset
• Solid brass cylinder - 2 keys



Specifications

Trim	Series 7 New Yorker Mortise Knob Lockset
Function	Entrance - Latch by knob/lever either side except when outside locked by stop-button; then by key outside, knob/ lever inside. Deadbolt by key outside, turnpiece inside. Deadbolt deadlocks latch.
Cylinder	C keyway cylinder with 2 keys
Bolt	Cast alloy full 1” throw
Latch	Solid brass 1/2” throw, reversible
Lock Front	1-1/4” x 8-5/8”, Flat
Door Thickness	1-3/4" standard.
Lock Specifications	9 Series (2-3/4" Backset)
Case	High-pressure cast Zamac, baked powder coat finish.



Downloads

• Installation Instructions
