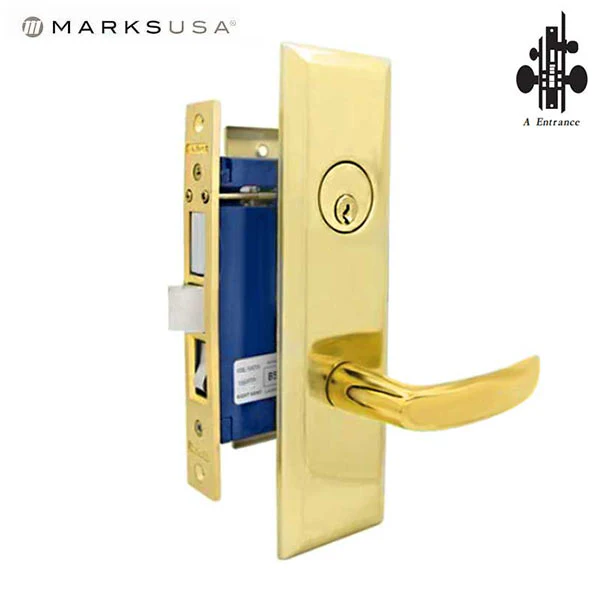

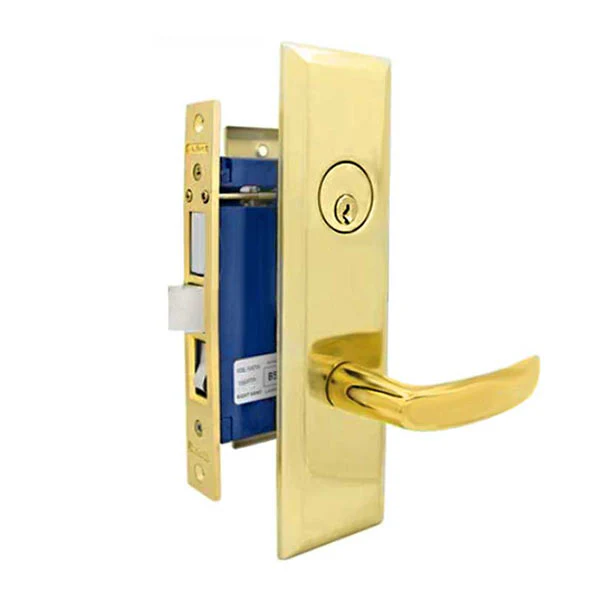

Marks USA - 7NY96A-3-F2 - New York Mortise Lever Lock - Large Inside Plate - Polished Brass - Entrance - RH - Grade 2
Marks USA - 7NY96A-3-F2 - New York Mortise Lever Lock - Large Inside Plate - Polished Brass - Entrance - RH - Grade 2
Combine security with style with the Marks New York 7 Series Mortise Locks. Perfect for apartments and residential buildings.
- Grade 2
- Titan Lever
- US3 - Polished Brass Finish
- Solid Brass Plates
- Large Inside Plate
- Right Hand Mortise Lockset
- Solid Brass Cylinder - 2 keys
| Specifications | |
|---|---|
| Trim | Series 7 New Yorker Mortise Lever Lockset |
| Function | Entrance - Latch by knob/lever either side except when outside locked by stop-button; then by key outside, knob/ lever inside. Deadbolt by key outside, turn-piece inside. Deadbolt deadlocks latch. |
| Lever | Titan Style |
| Cylinder | C keyway cylinder with 2 keys |
| Bolt | Cast alloy full 1” throw |
| Latch | 5/8” throw |
| Backset | 2-3/4" backset |
| Lock Front | 2-3/4" x 10" |
| Lock Specifications | 7 Series (2-3/4" Backset) |
| Case | High pressure cast Zamac, baked enamel finish. |
| Finish | US3 - Polished Brass |
| Downloads |
|---|
| Installation Guide |
Original: $169.08
-65%$169.08
$59.18Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Combine security with style with the Marks New York 7 Series Mortise Locks. Perfect for apartments and residential buildings.
- Grade 2
- Titan Lever
- US3 - Polished Brass Finish
- Solid Brass Plates
- Large Inside Plate
- Right Hand Mortise Lockset
- Solid Brass Cylinder - 2 keys
| Specifications | |
|---|---|
| Trim | Series 7 New Yorker Mortise Lever Lockset |
| Function | Entrance - Latch by knob/lever either side except when outside locked by stop-button; then by key outside, knob/ lever inside. Deadbolt by key outside, turn-piece inside. Deadbolt deadlocks latch. |
| Lever | Titan Style |
| Cylinder | C keyway cylinder with 2 keys |
| Bolt | Cast alloy full 1” throw |
| Latch | 5/8” throw |
| Backset | 2-3/4" backset |
| Lock Front | 2-3/4" x 10" |
| Lock Specifications | 7 Series (2-3/4" Backset) |
| Case | High pressure cast Zamac, baked enamel finish. |
| Finish | US3 - Polished Brass |
| Downloads |
|---|
| Installation Guide |
