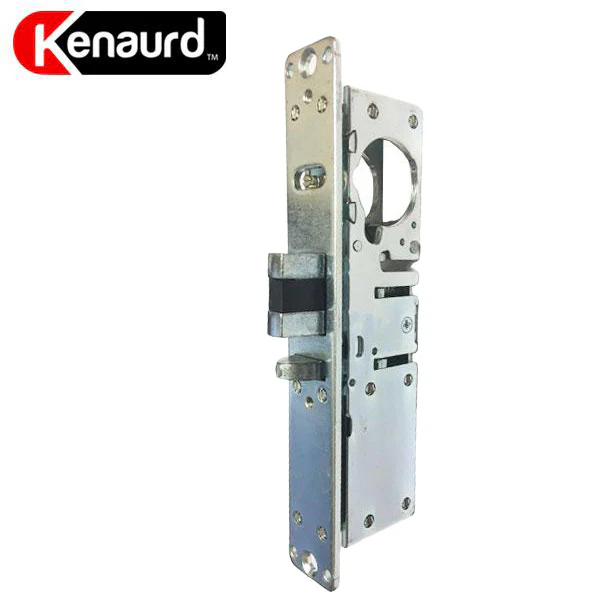

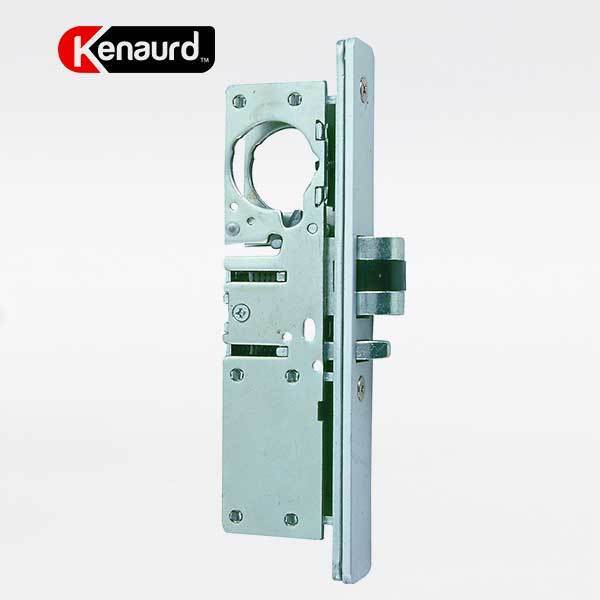

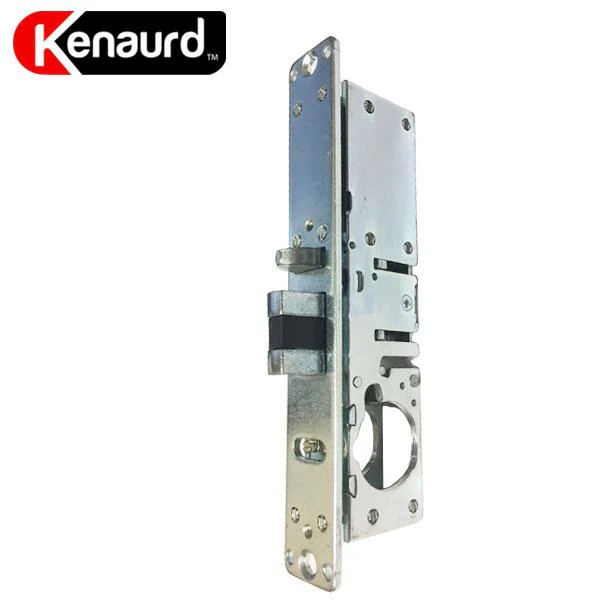

Narrow-Stile 1-1/2" Latch Lock Body w/ 2 Faceplates - LH

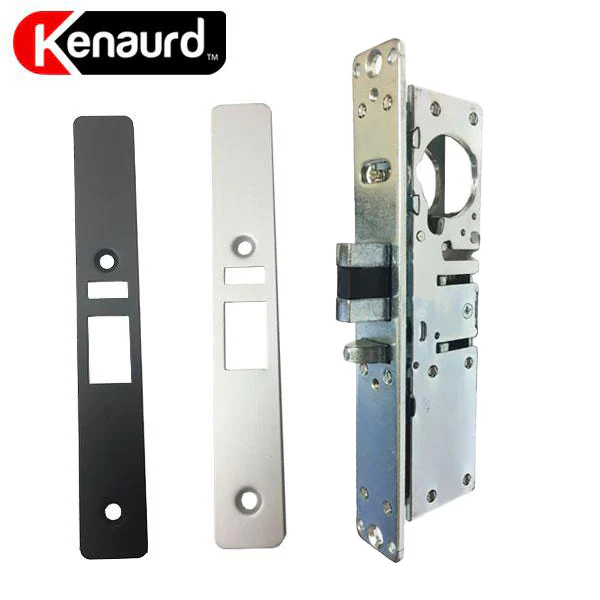

The Lock Body includes 2 faceplates in Oil Rubbed Bronze and Aluminum Finish. Fits standard 1" to 1-1/2" Mortise Cylinder


Backset 1-1/2" [28.6 mm]
Handing Left Hand
Case Zinc Plated Steel lock body
Case Dimensions: 7/8" width x 6" Length
Cylinder: Accepts standard 1" to 1-1/8" Mortise Thumbturns and 1" to 1-1/2" Mortise Lock Cylinders with Adams Rite (A/R) cams. (Cylinder Not Included)
Latchbolt

Latch 13mm chrome plated with delrin insert for quiet latching

1/2" width x 1.0" length x 1/2" Throw
Auxiliary Linchpin Steel. Deadlocks latch bolt to prevent “loiding” or case-knife entry.
Faceplate Measures 1" x 6-7/8" [25.4 mm x 174.6 mm].
Strike Standard strike furnished for flat jamb where door closes flush or nearly flush.
Standard Package

Individually boxed with strike plate, 2 faceplates, and mounting screws.

Available in 25 Count Carton / Box

Cylinders, paddles, handles available separately.
    $5.23

    Original: $14.95

    -65%
    Narrow-Stile 1-1/2" Latch Lock Body w/ 2 Faceplates - LH—

    $14.95

    $5.23

    Product Information

    Shipping & Returns

    Description

    The Lock Body includes 2 faceplates in Oil Rubbed Bronze and Aluminum Finish. Fits standard 1" to 1-1/2" Mortise Cylinder


    Backset 1-1/2" [28.6 mm]
    Handing Left Hand
    Case Zinc Plated Steel lock body
    Case Dimensions: 7/8" width x 6" Length
    Cylinder: Accepts standard 1" to 1-1/8" Mortise Thumbturns and 1" to 1-1/2" Mortise Lock Cylinders with Adams Rite (A/R) cams. (Cylinder Not Included)
    Latchbolt

    Latch 13mm chrome plated with delrin insert for quiet latching

    1/2" width x 1.0" length x 1/2" Throw
    Auxiliary Linchpin Steel. Deadlocks latch bolt to prevent “loiding” or case-knife entry.
    Faceplate Measures 1" x 6-7/8" [25.4 mm x 174.6 mm].
    Strike Standard strike furnished for flat jamb where door closes flush or nearly flush.
    Standard Package

    Individually boxed with strike plate, 2 faceplates, and mounting screws.

    Available in 25 Count Carton / Box

    Cylinders, paddles, handles available separately.
