Norton - 6341 - Low-Energy Door Operator - Push & Pull Mounting - Satin Aluminum - Grade 1

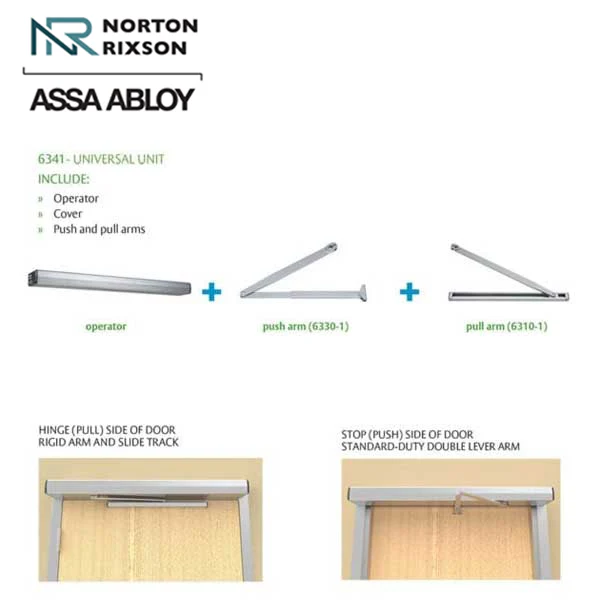

The Norton 6300 Series Low Energy Operator offers a broad set of intelligent functions, such as power close, latch assist and obstruction detection to safely secure a variety of moderate to high traffic openings. A unique design with one of the slimmest profiles available allows the 6300 to blend more seamlessly with the frame while fitting challenging applications with minimal header space. A modular design, simple controls, and new wifi interface via a mobile device make for easy installation and setup. This universal setup includes Rigid Arm, Slide Track, and Double Lever Arm.
Features:
- Push and pull side mounting
- Non-handed
- Activated by push button, hands-free and RF devices
- LCD Screen
- Wifi Interface
- Push & Go (selectable)
- Obstruction detection (open and close)
- Latch assist feature for enhanced security
- Power Close
- Selectable mode switch (off, on, hold open)
- Adjustable opening force
- Adjustable closing power
- Blow open and blow close for smoke ventilation
Specifications:
| Construction: | Heavy-Duty cast-aluminum body |
| Function: | Hydraulic Electronic Door Operator |
| Interior or Exterior: | Universal |
| Handing: | Non-Handed |
| Power Input: | 120 VAC, 3A, 60Hz |
| Power Supply: | 24 VDC (1.3A) |
| Finish: | 689 - Aluminum, 690 - Dark Bronze Painted |
| Maximum Door Weight: | 200lbs |
| Door Width: | 36 - 48" |
| Housing Depth: | 3-1/2" |
| Housing Height: | 8" |
| Housing length: | 8-1/2" |
| Projection from Wall: | 3-1/2" |
| Mounting Style: | Parallel, Regular, Top Jamb |
| Max. Door Opening: | 180 Degrees |
| ADA: | Meets requirements for Americans with Disabilities Act (ADA) |
| Fire Rating: | UL10c 90-minute positive pressure fire rating |
| Certifications: | ANSI/BHMA A156.19 certified. ETL tested to UL / cUL standard for automatic doors on fire & smoke barrier doors. |
| Warranty: | 2-Year Limited Warranty |
Downloads:
Original: $3,046.62
-65%$3,046.62
$1,066.32Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Norton 6300 Series Low Energy Operator offers a broad set of intelligent functions, such as power close, latch assist and obstruction detection to safely secure a variety of moderate to high traffic openings. A unique design with one of the slimmest profiles available allows the 6300 to blend more seamlessly with the frame while fitting challenging applications with minimal header space. A modular design, simple controls, and new wifi interface via a mobile device make for easy installation and setup. This universal setup includes Rigid Arm, Slide Track, and Double Lever Arm.
Features:
- Push and pull side mounting
- Non-handed
- Activated by push button, hands-free and RF devices
- LCD Screen
- Wifi Interface
- Push & Go (selectable)
- Obstruction detection (open and close)
- Latch assist feature for enhanced security
- Power Close
- Selectable mode switch (off, on, hold open)
- Adjustable opening force
- Adjustable closing power
- Blow open and blow close for smoke ventilation
Specifications:
| Construction: | Heavy-Duty cast-aluminum body |
| Function: | Hydraulic Electronic Door Operator |
| Interior or Exterior: | Universal |
| Handing: | Non-Handed |
| Power Input: | 120 VAC, 3A, 60Hz |
| Power Supply: | 24 VDC (1.3A) |
| Finish: | 689 - Aluminum, 690 - Dark Bronze Painted |
| Maximum Door Weight: | 200lbs |
| Door Width: | 36 - 48" |
| Housing Depth: | 3-1/2" |
| Housing Height: | 8" |
| Housing length: | 8-1/2" |
| Projection from Wall: | 3-1/2" |
| Mounting Style: | Parallel, Regular, Top Jamb |
| Max. Door Opening: | 180 Degrees |
| ADA: | Meets requirements for Americans with Disabilities Act (ADA) |
| Fire Rating: | UL10c 90-minute positive pressure fire rating |
| Certifications: | ANSI/BHMA A156.19 certified. ETL tested to UL / cUL standard for automatic doors on fire & smoke barrier doors. |
| Warranty: | 2-Year Limited Warranty |
