OLY-100-26D78LB-101

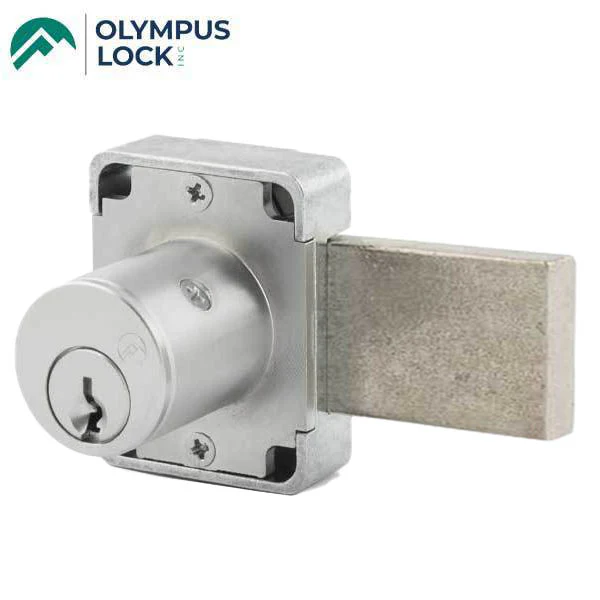

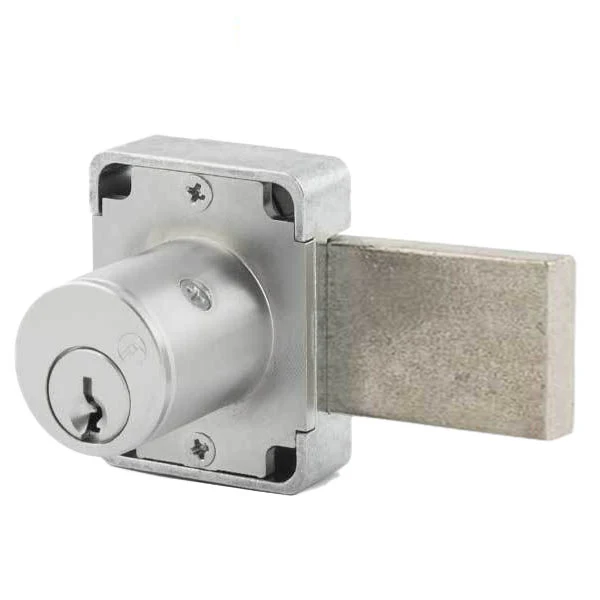

N Series National Keyway Cabinet Drawer Deadbolt Lock with Long Bolt.

Easily re-keyable via rear set screws.

More Information Below

SPECIFICATIONS

Function	Cabinet Door Lock
Cylinder	National N Series (equivalent to National D4291 4-pin ) Keyway w/ 2 keys per lock
Keyed Alike	KA 101
Cylinder Length	1-3/8"
Barrel Diameter	7/8"
Long-Bolt	Bolt Extends 3/4" on both ends
Functions	Key removable in locked or unlocked position. Standard function locks are non-handed.
Body	Zinc die cast
Finish	26D - Satin Chrome
Includes	- 2 keys - 56-1 bar strike -lock mounting screws
Certifications	Passed ANSI/BHMA A156.11 Grade 1 performance requirements

The same model with a regular bolt can be found here

•


Downloads

• Spec Sheet / Dimensions
• Installation Instructions
• Template
• Rekeying Instructions
