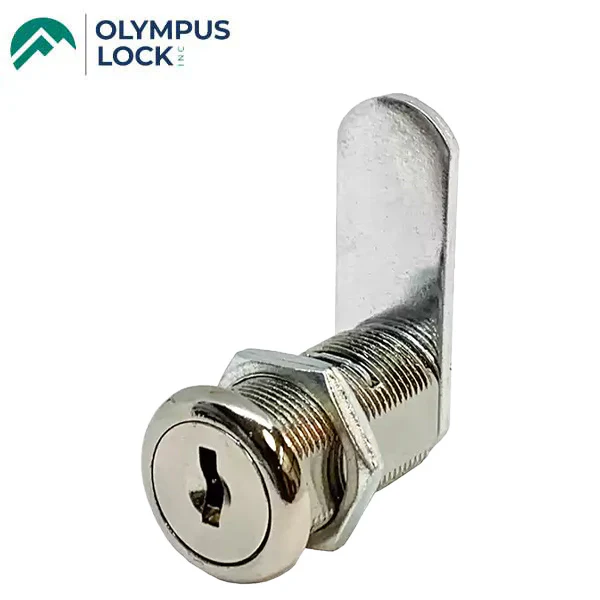

Cascade Series Disc Tumbler Cam locks ship with body and cylinder assembled for fast and easy installation. Passed ANSI/BHMA Grade 2 test of 20,000 cycles, including key insertion and removal. The Cascade series comes with a zinc body die-cast cylinder 5-disc tumbler. The standard function 90-degree cam rotation and has key removable in locked or unlocked position. Ships with anti-rotation, eyelet spur washer (which can be locked into place for a more secure mounting). Cascade Series will key together with CompX National disc tumbler locks.

Features:

• 5-disc tumbler key system
• Will key into CompX/National C8053 or similar disc tumbler products
• Locks ship with a cylinder installed for faster installation
• 90-degree cam rotation, key removable in both locked and unlocked position
• Passed ANSI/BHMA Grade 2 cycle test: 20,000 cycles including key insertion and removal [E07262]
• Ships with one each straight and offset square drive reversible cams (additional cam sizes available separately)
• Includes eyelet spur washer for more secure mounting and anti-rotation
• Mounts in standard 3/4" diameter hole
• Includes Cylinder with lock body assembly, two keys, one 1-1/2" straight cam, one 1-1/8" long with 11/32" offset cam, one eyelet spur washer, one fixing nut, one trim ring, one cam screw with star washer, one retainer staple, and one plug extender.

Specifications:

Cylinder Length	1-7/16"
Finish	Bright Nickel
Key No.	C346A
Lock Type	Cam Lock
Max Material Thickness	1-1/8"
Tumbler	Disc
Rotation	90°
Material	Die-Cast Zinc
Key Type	Keyed Alike
Mounting Hole Size	3/4" in wood, 5/8" x 3/4" in metal

Downloads:

• Spec Sheet
