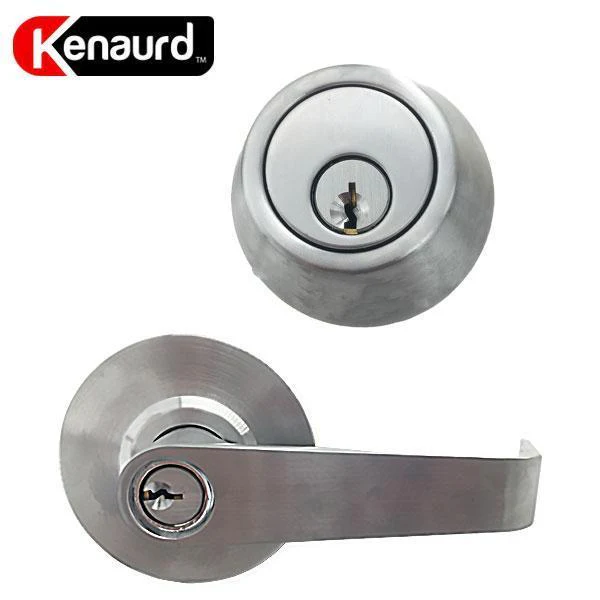

• Deadbolt & Leverset – Entrance
• ANSI/BHMA Certified Grade 2

• Schlage Keyway
• Finish: Stain Chrome – SC – 26D
• Clutch Mechanism
• ADA Ergonomic thumb turn
• 2 Brass Keys Each Set Keyed Alike
• Solid Brass 6-Pin Removable Deadbolt KIK Cylinder
• Reinforced 7/8" dia,1" throw brass/zinc deadbolt with hardened steel core. 5/64" thick face plate. ANSI Grade 2 Security against kick-in and saw attacks.
• 3-11/32 Dia. Brass rose. Individual springs on the rose plate prevents lever sag.

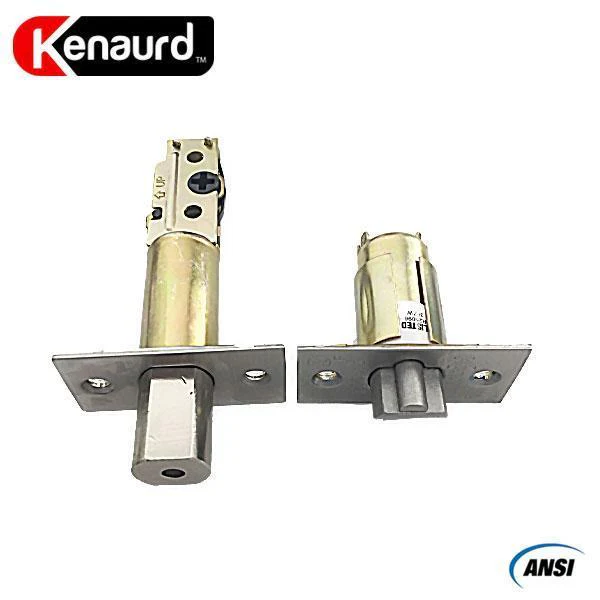

• 1/2" Throw deadlatch is completely reversible for flat and beveled doors
• Center to center = 4"
• Door Prep: Cross bore 2-1/8", Edge bore 1" , Latch face 1-1/8"x2-1/4".
• Backset: 2-3/4" standard.
• Door Thickness: 1-1/2"--2".
• Handing: Completely reversible.
• Faceplates: 1-1/8"x2-1/4" rounded corner
• Strikes: 2-1/4" full lip, rounded corner
• Latch: 1/2" throw, stainless steel.
• Bolt: 1" throw, Nickel plated.
• ANSI/BHMA: A156.12 Grade 2.Keyed alike Up to 6 (KA6)
• Limited Lifetime Mechanical Warranty
