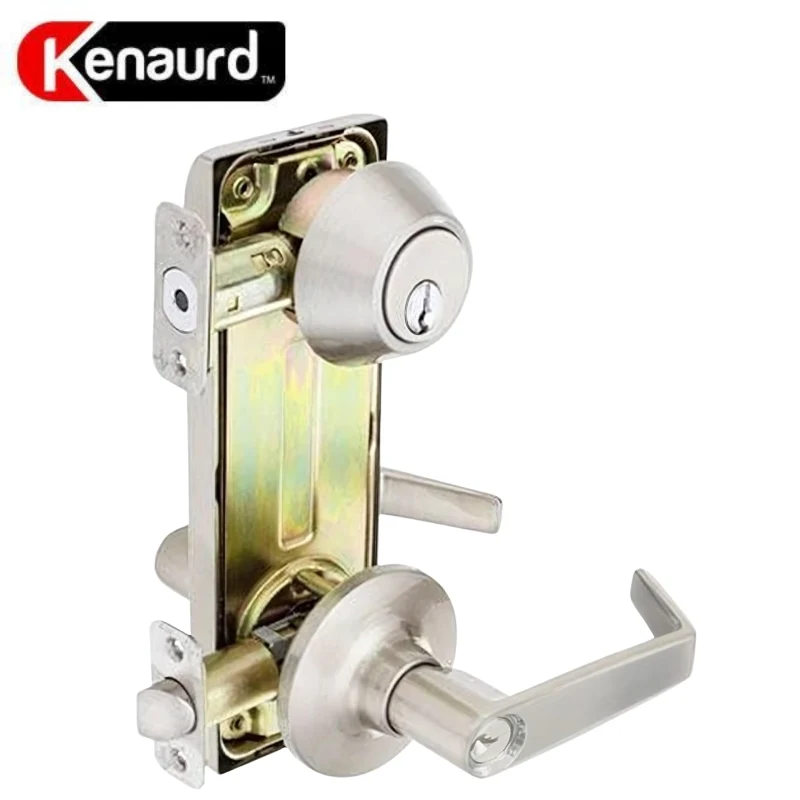

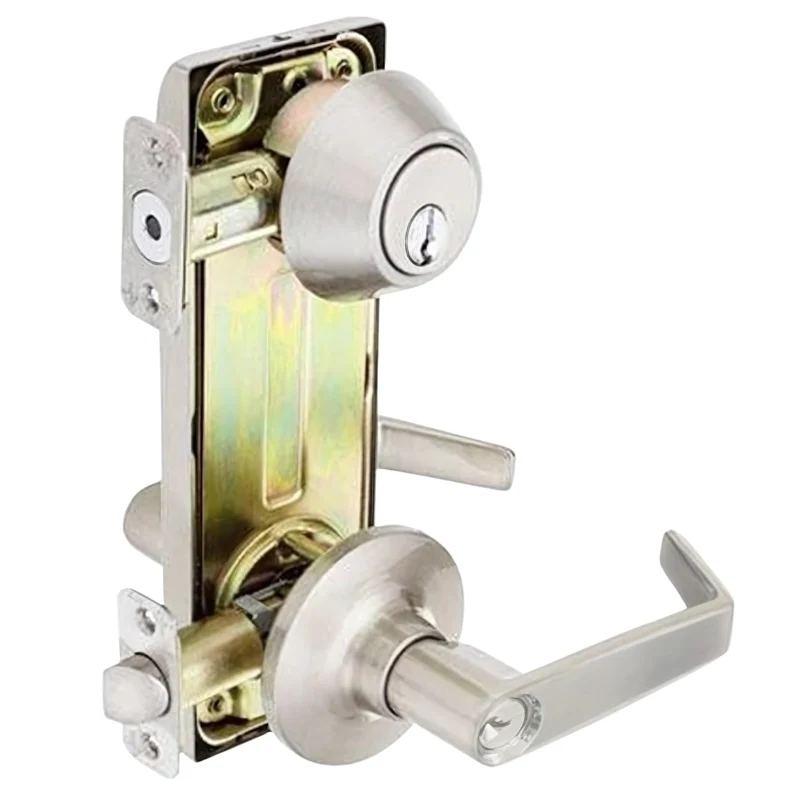

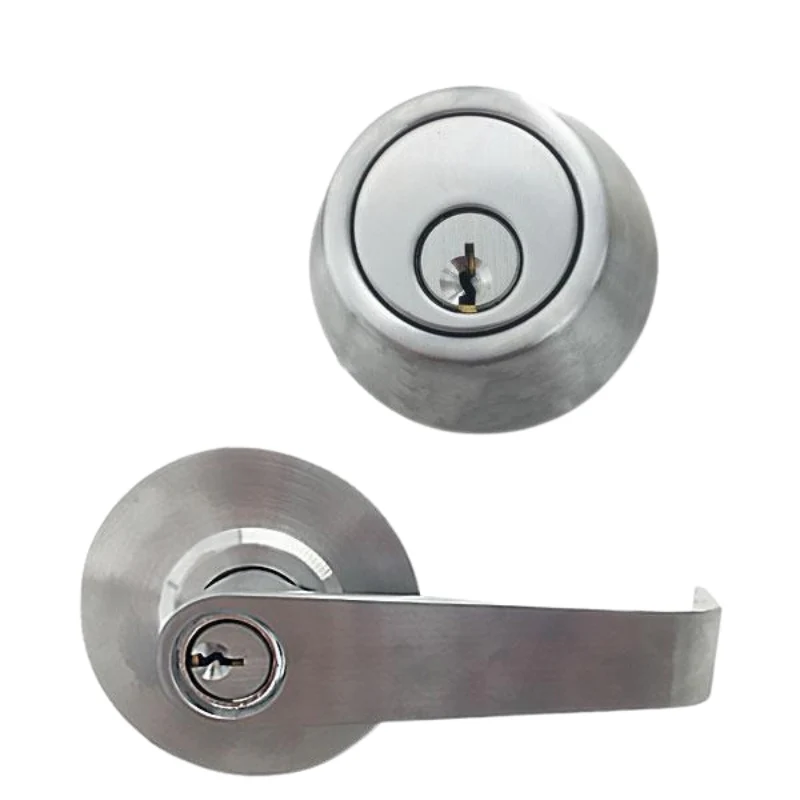

• Deadbolt & Leverset – Entrance
• ANSI/BHMA Certified Grade 2

• Finish: Stain Chrome – SC – 26D
• Clutch Mechanism
• ADA Ergonomic thumb turn
• 2 Brass Keys Each Set Keyed Alike
• Solid Brass 6-Pin Removable Deadbolt KIK Cylinder
• Reinforced 7/8" dia,1" throw brass/zinc deadbolt with hardened steel core, 5/64" thick face plate, ANSI Grade 2 Security against kick-in and saw attacks.
• 3" Dia. brass rose. Individual springs on a rose plate prevent lever sag.

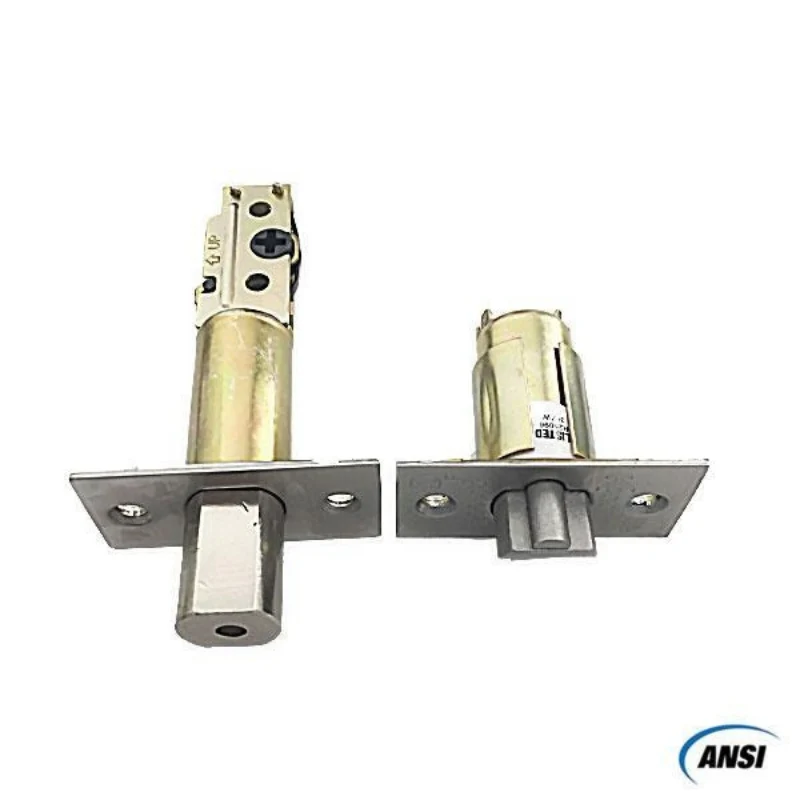

• 1/2" Throw deadlatch is completely reversible for flat and beveled doors
• 2-3/4” Standard Backest
• Center to center = 4"
• Door Prep: Cross bore 2-1/8", Edge bore 1", Latch face 1-1/8" x 2-1/4".
• Backset: 2-3/4" standard.
• Door Thickness: 1-3/8"--2".
• Cylinder: 5-Pin or 6-Pin removable core. Schlage "C " keyway, Kwikset, and other options are available.
• Handling: Completely reversible.
• Faceplates: 1-1/8"x2-1/4" rounded corner
• Strikes: 2-1/4" full lip, rounded corner standard
• Latch: 1/2" throw, stainless steel.
• Bolt: 1" throw, Nickel plated.
• Keyed alike Up to 6 (KA6)
• Limited Lifetime Mechanical Warranty

Common Lock Functions
