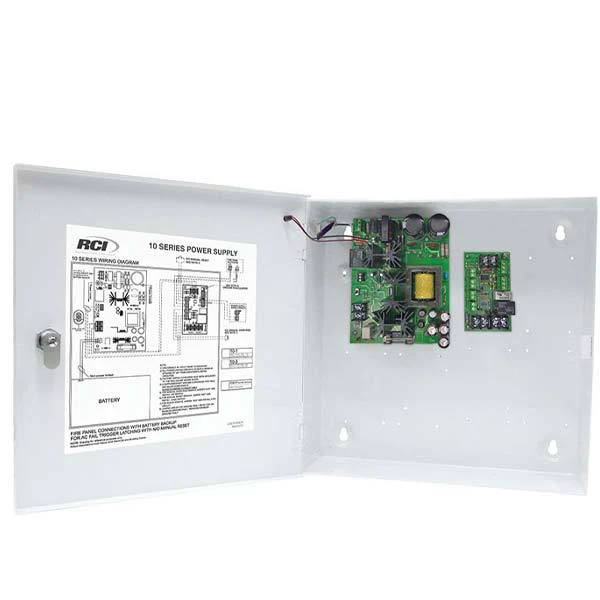

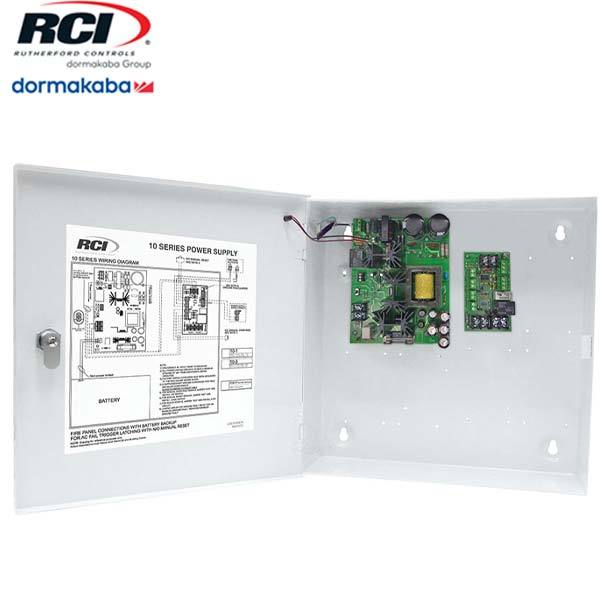

RCI-10-3-FPD

• Multiple listing for a wide variety of applications
• Field-Selectable voltage 3A at 12VDC or 1.5A at 24VDC
• Filtered and regulated DC output
• Short circuit protection
• AC fail output relay
• Modular options
• External AC power indicator
• Easy installation

Features and Benefits:

• Battery charging circuit
• Field-Selectable 3A At 12VDC 1.5A At 24VDC
• Lifetime Limited Warranty
• Jumper-selectable auto or manual reset
• Fire Panel Interface with Switching Output (FPD model only)
• “End of line” resistor supervision on fire interface
• Selectable ground fault detection on fire interface
• Instant unlock upon power failure
• Remote override reset capabilities for authorized personnel
• Multi-panel interconnect-fire disconnect

Technical Data:

• Dimensions: 12-1/2"W x 12-1/2"H x 4"D (318mm x 318mm x 102mm)
• UL 294 Listed for access control unit power supply
• CAN/ULC-S319 Listed for access control unit power supply for Canada

Applications:

• To Power Access Control Systems
• To Power Electric Locking Systems
• To Power Electromagnetic Locking Systems

Download:

• Installation Manual
