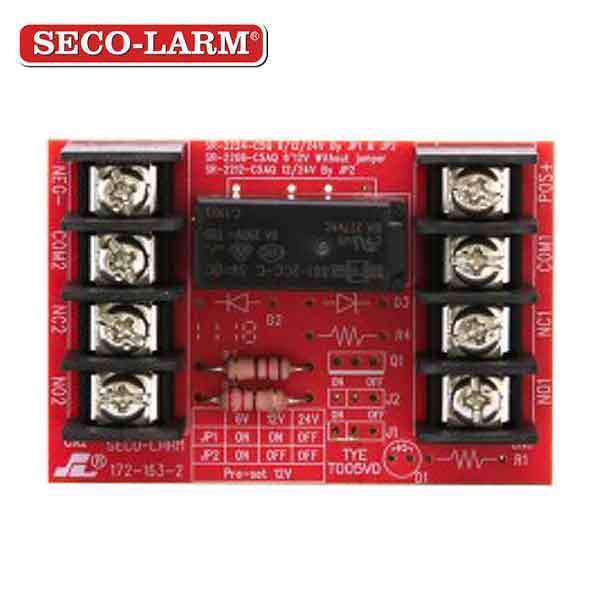

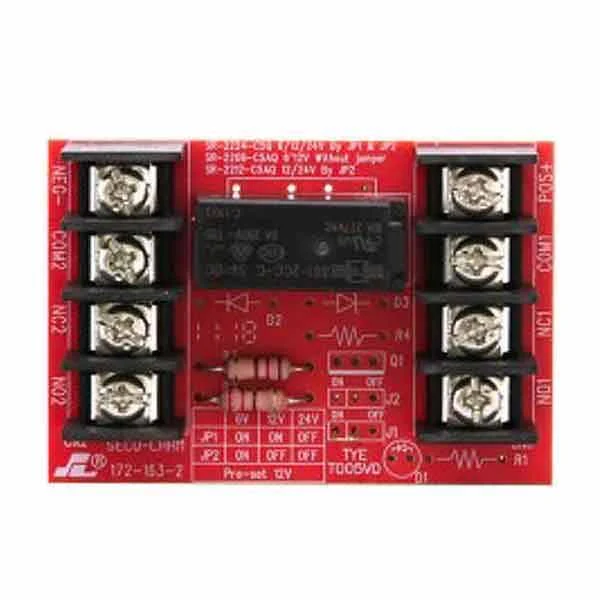

Seco-Larm - Relay Modules - 12/24VDC Trigger Voltage - One 5A Form C DPDT Relay
- 12/24VDC Trigger Voltage, One 5A Form C DPDT Relay
- For any application where relays are required
- Pre-wired to easy-to-install modules
- Screw terminals allow easy installation without soldering or other time-consuming connections
- Wide-selection of additional relays is available: Choose single or dual relays, low-current or heavy-duty operation, and high-sensitivity or normal-sensitivity
| Operating Voltage | 12/24 VDC |
| Trigger Voltage | 12/24 VDC |
| Voltage Selection | Jumper |
| Relay Type | DPDT |
| Relay Ratings | 5A |
| No. of Relays | 1 |
| Current Draw | 70mA@12/24VDC |
| Dimensions | 2-3/4" x 1-7/8" x 3/4" (70 x 48 x 20 mm) |
| Weight | 2-oz (55g) |
$10.95
Seco-Larm - Relay Modules - 12/24VDC Trigger Voltage - One 5A Form C DPDT Relay—
$10.95
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- 12/24VDC Trigger Voltage, One 5A Form C DPDT Relay
- For any application where relays are required
- Pre-wired to easy-to-install modules
- Screw terminals allow easy installation without soldering or other time-consuming connections
- Wide-selection of additional relays is available: Choose single or dual relays, low-current or heavy-duty operation, and high-sensitivity or normal-sensitivity
| Operating Voltage | 12/24 VDC |
| Trigger Voltage | 12/24 VDC |
| Voltage Selection | Jumper |
| Relay Type | DPDT |
| Relay Ratings | 5A |
| No. of Relays | 1 |
| Current Draw | 70mA@12/24VDC |
| Dimensions | 2-3/4" x 1-7/8" x 3/4" (70 x 48 x 20 mm) |
| Weight | 2-oz (55g) |
