Rosslare - PC-P17 - Power Supply Board For Networked Controllers - PCBA - 12 VDC

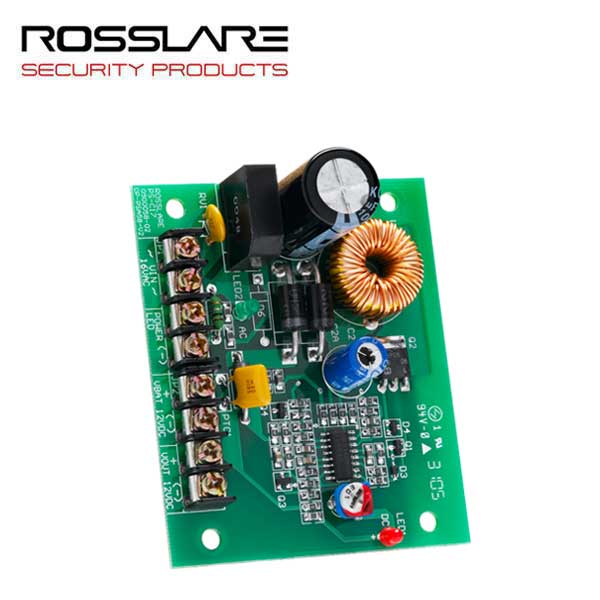

Product image 1
1 / 2

Rosslare - PC-P17 - Power Supply Board For Networked Controllers - PCBA - 12 VDC

The PC-P17 Printed Circuit Board Assembly is a 12VDC / 2 A General purpose power supply unit. Input: 16 VAC / 50 Hz from transformer Output: 12 VDC / 2.0A Built-in battery charger, space for 7Ah battery (battery not included). Used with most access control power suppliers.

More Information Below


    Specifications:

    Input Voltage: 16 VAC, 2.42 A

    Backup Battery
    Charger Output:

    		 12 VDC lead acid battery up to 7 Ah
    To Relay Outputs – Output
    Voltage 1:    		 12 VDC,0.5 A
    To Access Control Panel – Output
    Voltage 2:    		 12 VDC, 1.5 A
    Tamper Output: Indicates faulty power
    Power In (AC) – Green LED1: Main power
    Power Out (DC) – Red LED2: Low voltage
    Low Battery – Red LED3:

    Backup battery low voltage

      $28.87
      Rosslare - PC-P17 - Power Supply Board For Networked Controllers - PCBA - 12 VDC—
      $28.87

      Product Information

      Shipping & Returns

      Description

      The PC-P17 Printed Circuit Board Assembly is a 12VDC / 2 A General purpose power supply unit. Input: 16 VAC / 50 Hz from transformer Output: 12 VDC / 2.0A Built-in battery charger, space for 7Ah battery (battery not included). Used with most access control power suppliers.

      More Information Below


        Specifications:

        Input Voltage: 16 VAC, 2.42 A

        Backup Battery
        Charger Output:

        		 12 VDC lead acid battery up to 7 Ah
        To Relay Outputs – Output
        Voltage 1:        		 12 VDC,0.5 A
        To Access Control Panel – Output
        Voltage 2:        		 12 VDC, 1.5 A
        Tamper Output: Indicates faulty power
        Power In (AC) – Green LED1: Main power
        Power Out (DC) – Red LED2: Low voltage
        Low Battery – Red LED3:

        Backup battery low voltage
