Sargent - 10G04 - Mechanical Cylindrical Lock - L Rose / B Lever - Storeroom - SFIC - 26D - Satin Chrome Plated - Non Handed - Grade 1
Sargent - 10G04 - Mechanical Cylindrical Lock - L Rose / B Lever - Storeroom - SFIC - 26D - Satin Chrome Plated - Non Handed - Grade 1

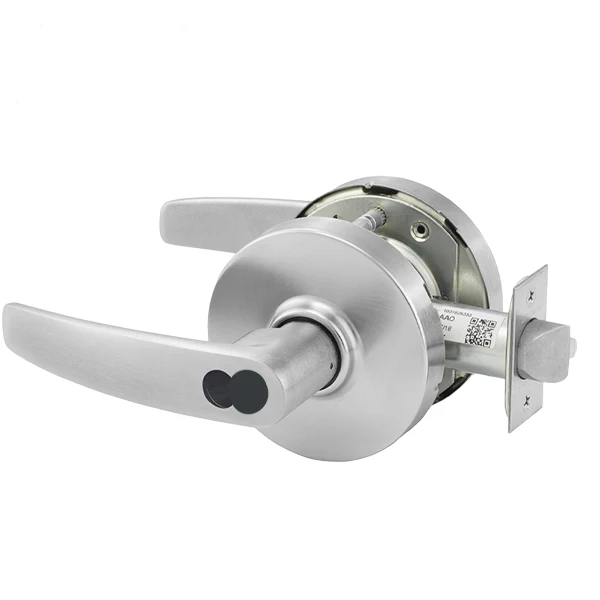

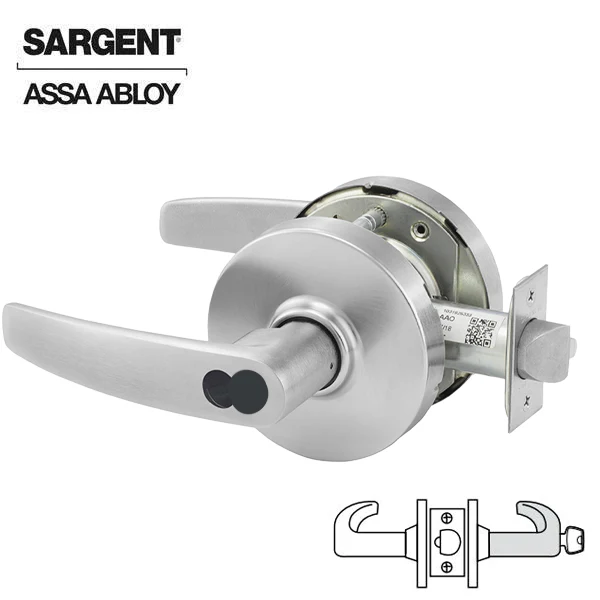

The 64-28-10G04-LB-26D is a heavy duty cylindrical key-in-lever lock designed to exceed the requirements of ANSI 156.2 Series 4000 Grade 1. The 10 Line is the standard for institutional applications such as medical, educational and municipal facilities. Lock to accept LFIC (removable core) and provided with keyed construction core; LFIC permanent core to be ordered separately.
Features
- ANSI/BHMA Grade 1 certified for cycle and strength requirements. Exceeds cycle testing standards by nine times with 9.6 million cycles and torque resistance by 1.5 times.
- UL-cUL listed for 3 hour fire doors and windstorm applications
- Available in 21 different functions, including classroom security and electromechanical options for access control applications
- Offered in 12 architectural grade finishes to match any decor
- Integrates into most existing facility key systems including Sargent security systems (Degree, Signature, KESO, and XC; also accept Schlage® and Medeco )
- Deadlocking latch
- Latch by lever inside or key outside
- Outside lever rigid at all times
- ANSI F86
Specifications
| Construction: | Heavy Duty Steel |
| Lock Function: | 10G04 : Storeroom or Closet |
| Door Thickness: | 1-3/4" (44mm) thick door adjusts to 2" (51mm) standard |
| Backset: | 2-3/4" (70mm) backset w/ 1-1/8" front (standard) |
| Faceplate: | Wrought brass, bronze and stainless steel — 2-1/4" (57mm) x 1-1/8" (29mm) |
| Strike: | 800 curved lip strike — (standard) |
| Latchbolt | Stainless steel 1/2" (13mm) throw Brass 3/4" (19mm) throw for pairs of doors |
| Bolt Projection: | 1/2" |
| Minimum Stile: | 4-1/2" |
| Rose & Lever: | Standard L Rose and B Lever |
| Cylinder: |
Brass, 6 pin, LA keyway, 1 bitted standard |
| Keyway: | LFIC (not included) |
| Finish: | 26D - Satin Chrome Plated |
| Certifications: | UL / cUL Listed for 3-Hour Doors, ANSI/BHMA A156 .2 Grade 1 |
| Warranty: | 7-Year Manufacturer Warranty |
