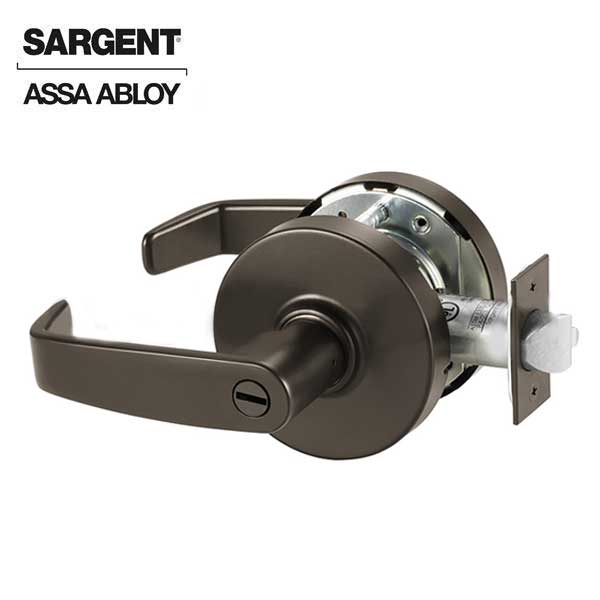

Sargent - 10U65 - Mechanical Cylindrical Lock - L Rose / L Lever - Non Keyed - Privacy/Bathroom - 10BE - Dark Oxidized Satin Bronze - Grade 1
Sargent - 10U65 - Mechanical Cylindrical Lock - L Rose / L Lever - Non Keyed - Privacy/Bathroom - 10BE - Dark Oxidized Satin Bronze - Grade 1
The SRG-28-10U65-LL-10BE is a heavy duty cylindrical key-in-lever lock designed to exceed the requirements of ANSI 156.2 Series 4000 Grade 1. The 10 Line is the standard for institutional applications such as medical, educational and municipal facilities.
Features
- ANSI/BHMA Grade 1 certified for cycle and strength requirements. Exceeds cycle testing standards by nine times with 9.6 million cycles and torque resistance by 1.5 times.
- UL-cUL listed for 3 hour fire doors and windstorm applications
- Freewheeling trim optional
- Available in 21 different functions, including classroom security and electromechanical options for access control applications
- 7 year warranty
- Applications: Offices, Schools/Universities, Hospitals, Manufacturing facilities
Specifications
| Construction: | Heavy Duty Steel |
| Lock Function: | 65 : Privacy / Bathroom |
| Door Thickness: | 1-3/4" (44mm) |
| Backset: | 2-3/4" (70mm) |
| Faceplate: | Wrought brass Standard — 2-1/4" (57mm) x 1-1/8" (29mm) |
| Strike: | ANSI Strike - 800 curved lip strike — standard |
| Latch Type | Spring Latch (Unguarded) |
| Bolt Projection: | 1/2" |
| Stile: | 4-1/2" |
| Rose & Lever: | Standard L Rose and L Lever |
| Cylinder: |
Non-Keyed |
| Keyway: | None |
| Finish: | 10BE - Dark Oxidized Satin Bronze |
| Certifications: | UL / cUL Listed for 3-Hour Doors |
| Warranty: | 7-Year Manufacturer Warranty |
Downloads
