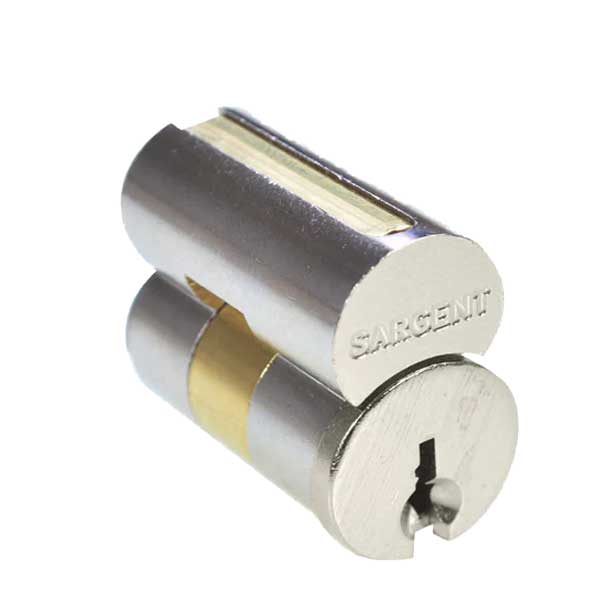

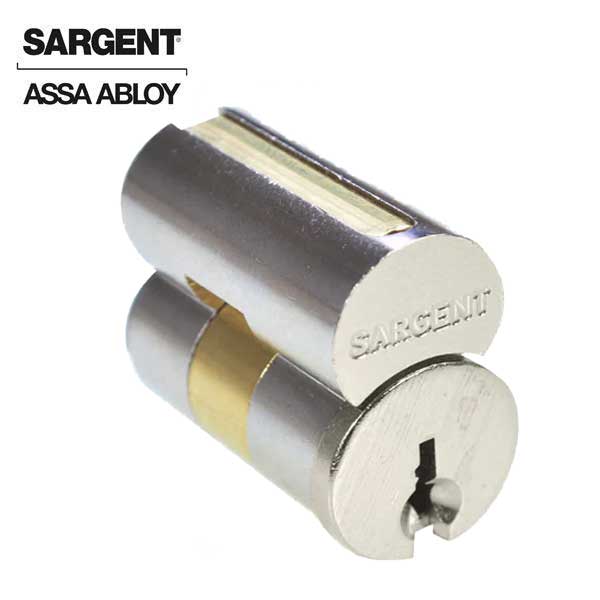

SARGENT 6300 Permanent Large Format Interchangeable (Removable) Core Cylinder

SARGENT LFIC (Removable) Core Cylinders and Master Key Systems are available for a quick change of cylinders for increased security. It is not necessary to remove the lock from a door to rekey the opening.

Note: Control Key Not Included. But is sold separately here

• Includes 2 Change Keys
• Can be master or grandmaster keyed
• 6 Pin Standard
• 6272 CTL Control Key is used to release a locking cam allowing immediate removal of the core (Not Included)
• Available for use in many SARGENT products (Exit Devices, Mortise locks, Bored locks, and padlocks)
• More Information Below



Specifications

Type	Combinated 6 Pin LFIC Core
Part Number	6300-LA-15
Format	Large Format Interchangeable Core
Material	Solid Brass / Steel Construction
Combinated Cylinder	Combinated cores are furnished with keys, pins and springs.
Finish	Satin Nickel US15 / 619
Keyway	SARGENT LA
Number of Pins	Fits 6 - Combinated
Keys	2 6275 LA Change Keys 6272 CTL Control Key Not Included
UNSPSC Code	46171500

Downloads

• Specifications Sheet
