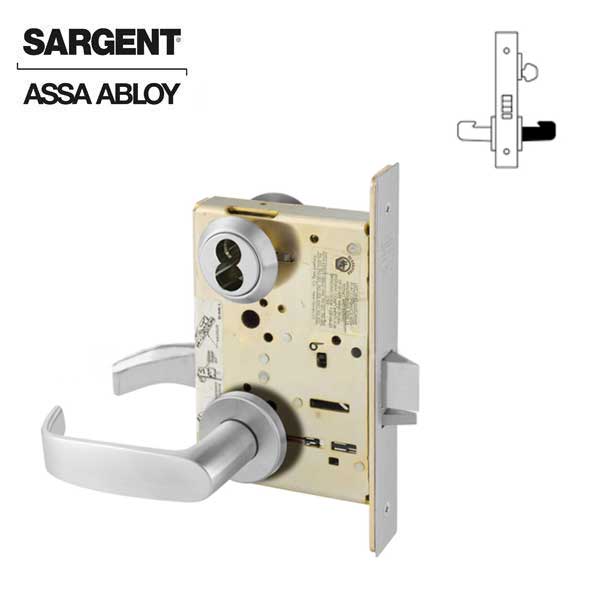

Sargent - 8204 - Mechanical Mortise Lock - LN Rose / L Lever - Storeroom - SFIC - 26D - Satin Chrome Plated - Grade 1
Sargent - 8204 - Mechanical Mortise Lock - LN Rose / L Lever - Storeroom - SFIC - 26D - Satin Chrome Plated - Grade 1
The Sargent 8204-LNL-26D Storeroom or Closet mortise locks are designed and constructed with high quality components to provide maximum security, performance and durability. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry.
Features
- Key outside retracts latchbolt
- Trim outside locked at all times
- Trim inside always retracts latchbolt
- Auxiliary deadlatch
- Multi-function 8200/R8200/7800 lockbody
-
Specifications
| Construction: | Heavy Duty Steel |
| Lock Function: | Mechanical Mortise Lock - 04: Storeroom or Closet |
| Door Thickness: | 1-3/4" (44mm) |
| Backset: | 2-3/4" (70mm) |
| Faceplate: | 8" (203mm) x 1-1⁄4" (31mm) |
| Strike: | ANSI Standard A115.1; curved lip, non-handed |
| Strike Height: | 4-7/8" |
| Frame Inner Dimension Requirements: | 8”L x 1-1/2”W x 1-1/2”D |
| Bolt Diameter: | 3/4" |
| Bolt Throw: | 1" |
| Stile: | 4-1/2" |
| Rose & Lever: | Standard LN Rose and L Lever |
| Cylinder: |
1-1/8" Brass SFIC (not included) |
| Keyway: | 6 or 7 Pin SFIC |
| Finish: | 26D - Satin Chrome Plated |
| Certifications: | UL / cUL Listed for 3-Hour Doors |
| Warranty: | 10-Year Manufacturer Warranty |
