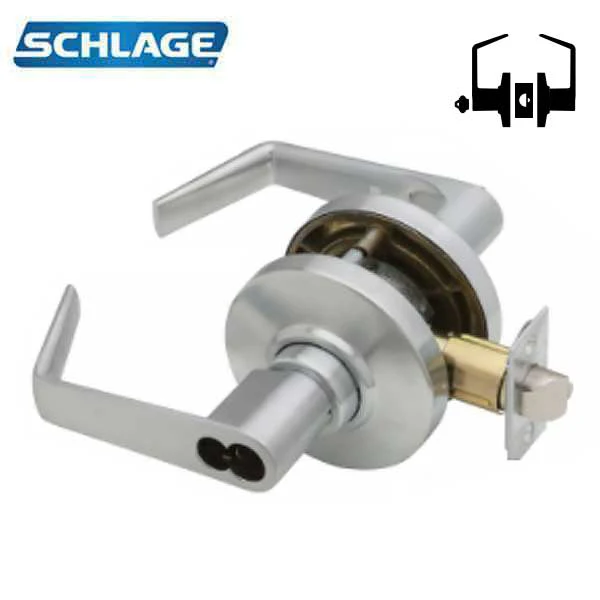

SCH-AL80JD-SAT-626

The AL Series is best for buildings with medium to high traffic flow, such as interior office doors, banks, retail spaces and hotel guest areas. With a Grade 2 ANSI rating, and styles and finishes to suit your building’s design, the AL Series fits right
where you need it

More Information Below

Lock Function	ANSI F86 Storeroom lock
Handing	Non-Handed
Levers	Schlage Saturn Style
Door Thickness	1-3/8" to 1-7/8" (35 mm to 48 mm) standard.
Cylinder	Prepped for Full Size Interchangeable Cores - Schlage FSIC or Conventional LFIC 5 or 6 Pin
Backset	2 -3/4" (70 mm) standard
Front	Steel. 2-1/4" x 1-1/8" square corner, beveled, for 2-3/4" backset standard
Lock chassis	Steel, zinc dichromated for corrosion resistance
Latch bolt	Brass, chrome plated, 1-1/2" throw, deadlocking on keyed and exterior functions.
Strike	ANSI curved lip strike 4-7⁄8" x 1-1⁄4" x 1-1⁄4" lip to center standard.
Finish	626 - 26D - Satin Chrome
Certifications	Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements. Meets A117.1 Accessibility Code. Meets FF-H-106C. ADA compliant
Manufacturer Warranty	Limited lifetime mechanical warranty

Please Note: Bulk price rates are available! Call us at 1-800-878-6604.
